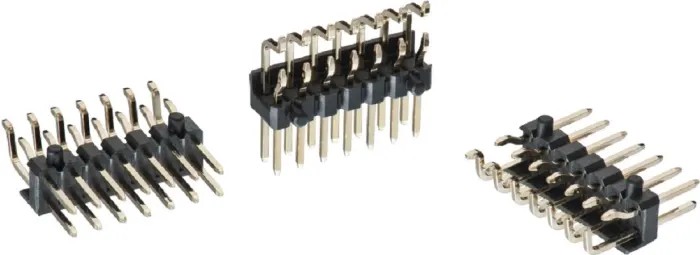

Wurth Elektronik WR-PHD Series Angled Surface PCB Header 24 Contacts 2.54mm Pitch 2 Row 610124249121
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Angled |
| Current | 3A |
| Packaging | Tape and Reel |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Connector System | Board-to-Board |
Key Features
- Constructed with copper alloy contacts and gold plating for superior conductivity and corrosion resistance.
- Features a PA9T insulator material with UL94 V-0 flammability rating for enhanced safety.
- Supports operating temperatures ranging from -40°C to 125°C for versatile applications.
- Rated for 3A current and 500V voltage suitable for various electronic components.
- Durability rated for 25 mating cycles, ensuring robust long-term performance.
- Surface mount type with angled orientation allows for efficient PCB layout designs.
- Packaging is in tape and reel format, ideal for automated assembly processes.
Product Description
Wurth Elektronik 610124249121 is an angled surface mount PCB header from the WR-PHD series, featuring 24 contacts and a 2.54 mm pitch arranged in 2 rows. It is designed to facilitate secure and reliable board-to-board connections in electronic assemblies.
Manufactured with copper alloy contacts plated with gold, the header ensures excellent electrical conductivity and resistance to corrosion. The insulator is made from PA9T material, which holds a UL94 V-0 flammability rating, enhancing safety during operation.
This PCB header supports a current rating of 3 amperes and a maximum voltage of 500 volts, suitable for diverse electronic applications. Its operational temperature range spans from -40°C to 125°C, providing resilience in demanding environments.
The component features an angled orientation and surface mount type, enabling flexible PCB design and layout. Durability is rated for 25 mating cycles, offering reliable mechanical performance over repeated use.
Packaging in tape and reel format supports efficient automated assembly on production lines. This makes the Wurth Elektronik WR-PHD angled PCB header well-suited for industrial, manufacturing, and electronic equipment applications.
Constructed with copper alloy contacts and gold plating for superior conductivity and corrosion resistance. Features a PA9T insulator material with UL94 V-0 flammability rating for enhanced safety. Supports operating temperatures ranging from -40°C to 125°C for versatile applications.
Rated for 3A current and 500V voltage suitable for various electronic components. Durability rated for 25 mating cycles, ensuring robust long-term performance. Surface mount type with angled orientation allows for efficient PCB layout designs.
Packaging is in tape and reel format, ideal for automated assembly processes.
This PCB Header is ideal for industrial, laboratory electronics, manufacturing equipment, and other professional electronics assembly applications. Explore more Wurth Elektronik PCB connectors and headers on EnvMart to support your electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 500V.
This model is rated for a current of 3A.
The pitch size of the contacts is 2.54mm.
The header features 24 contacts arranged in 2 rows.
It supports an operating temperature range from -40°C to 125°C.
The contacts are made from copper alloy and are plated with gold for enhanced conductivity.
It is packaged in tape and reel format, which is ideal for automated assembly processes.
The durability is rated for 25 mating cycles, ensuring reliable performance over repeated use.
The insulator is made from PA9T material, which has a UL94 V-0 flammability rating.
This model uses a surface mount type with an angled orientation.
It is suitable for industrial, laboratory electronics, manufacturing equipment, and other professional electronics assembly applications.
The country of origin for this PCB header is Taiwan.
