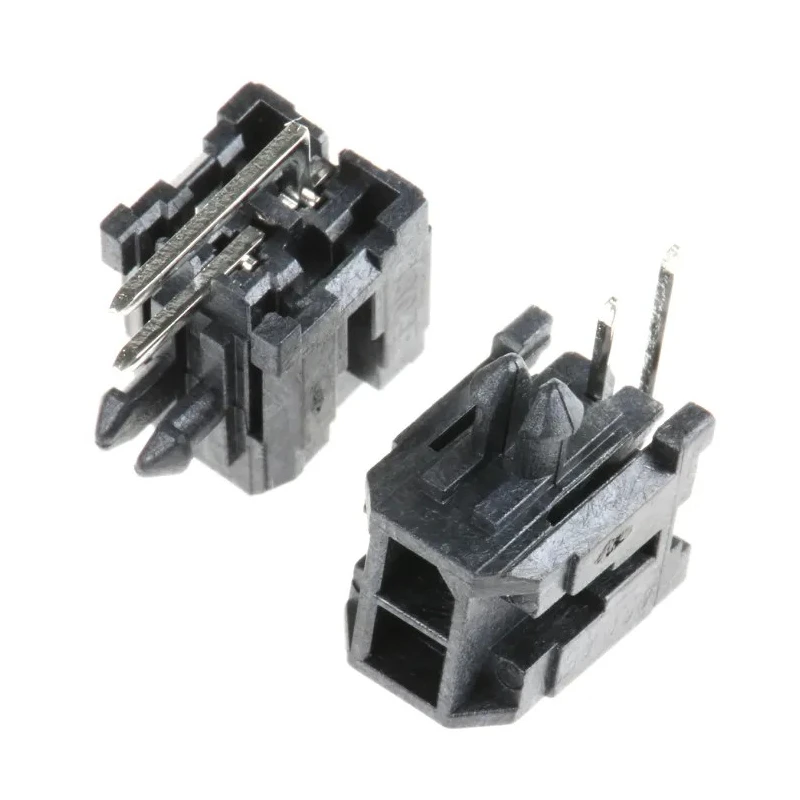

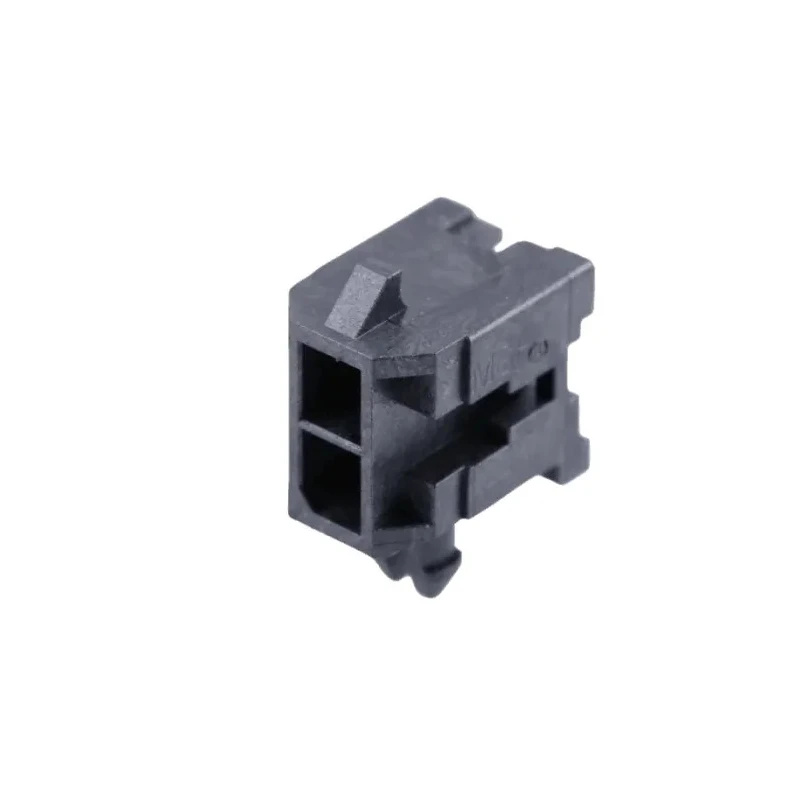

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 2 Contacts, 3 mm Pitch, 2 Row, Shrouded 43045-0200

Molex 43045-0200 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header is a high-performance connector designed for compact power distribution in electronic assemblies. Featuring 2 brass contacts plated with tin, this wire-to-board header has a 3 mm pitch with 2 rows in a right angle through hole configuration. The housing is constructed of thermoplastic material compliant with UL 94V-0 standards, capable of withstanding IR reflow soldering temperatures up to 265°C.

Its fully shrouded design protects pins from environmental damage and accidental short circuits, enhancing durability. The connector supports a current rating of 5 A and operates reliably across a temperature range of -40°C to +105°C. Positive latching is provided by a locking ramp on the housing to prevent accidental disconnection, while snap-in plastic peg locks ensure secure PCB mounting during assembly and operation.

This PCB header is suitable for industrial electronics, audio equipment, automotive manufacturing, networking devices, and other applications requiring reliable, compact power connectors. It also meets high standards for corrosion resistance and electrical conductivity due to its tin-plated brass contacts. The connector withstands up to 30 mating cycles, allowing for multiple connect/disconnect operations without loss of performance.

Designed for wire-to-board connections with a 3 mm pitch and 2 rows. Current carrying capacity of 5 A for mid-range power distribution. Housing material is thermoplastic suitable for high temperature soldering. Right angle orientation for versatile PCB layout integration.

Fully shrouded to protect contacts from damage and short circuits. Snap-in plastic peg lock for secure, vibration-resistant PCB mounting. Operates in temperature range from -40°C up to 105°C. Tin plating on brass contacts ensures excellent conductivity and corrosion resistance.

Positive latching mechanism prevents accidental disconnection. Durable design supports up to 30 mating cycles. Explore the Electronics Components category for more PCB Headers and connectors by Molex and other trusted brands on EnvMart.
