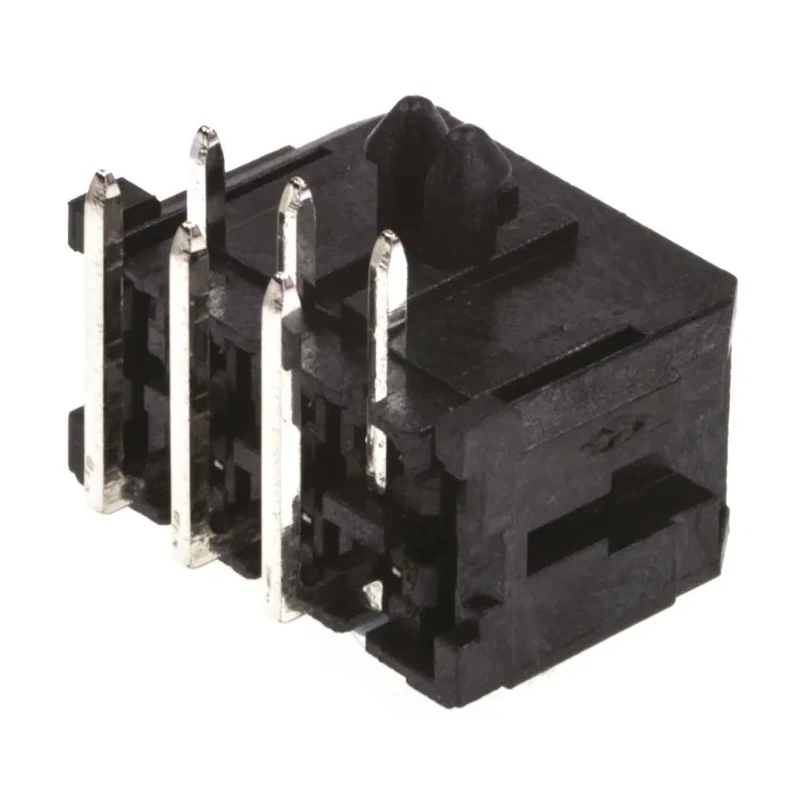

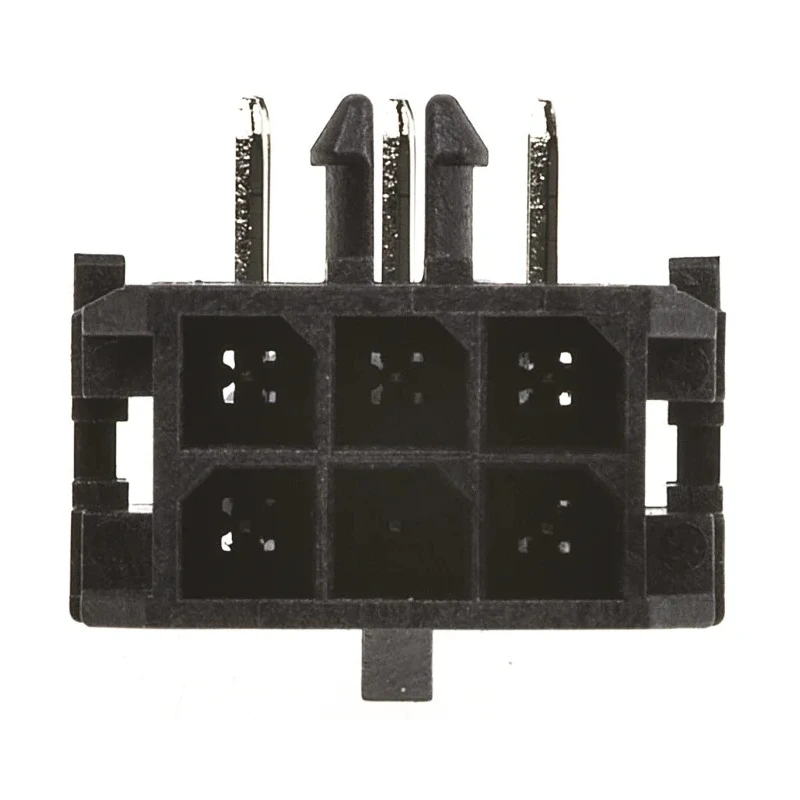

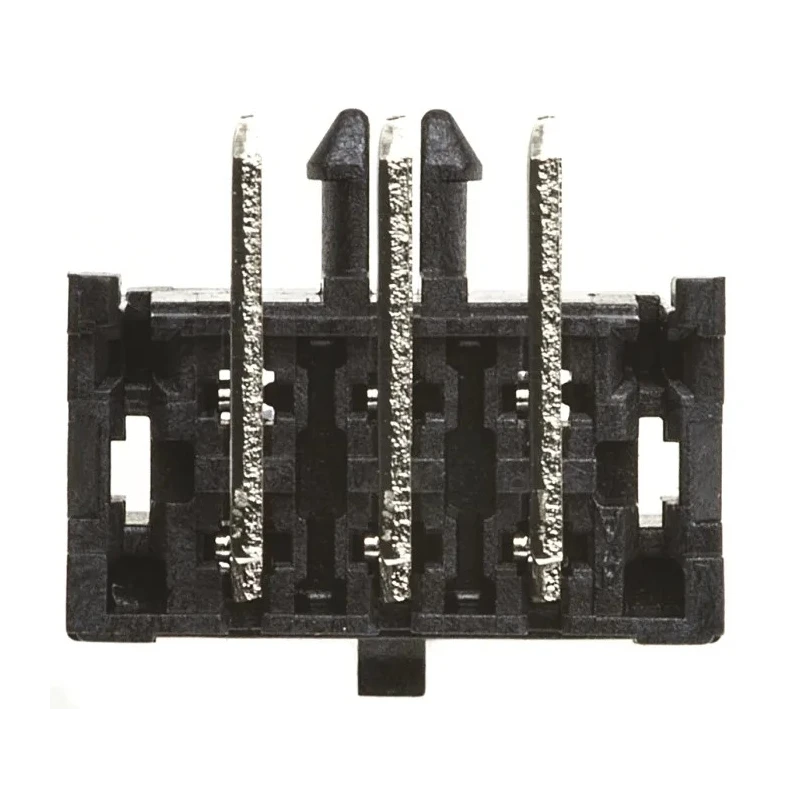

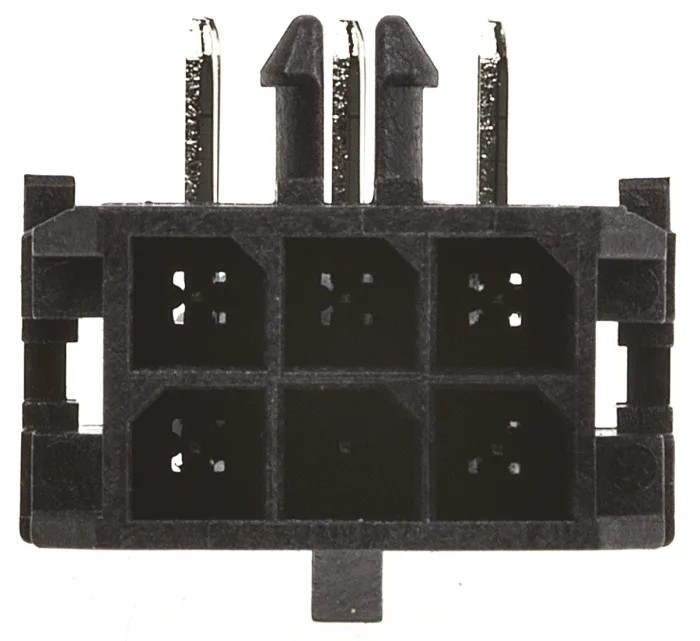

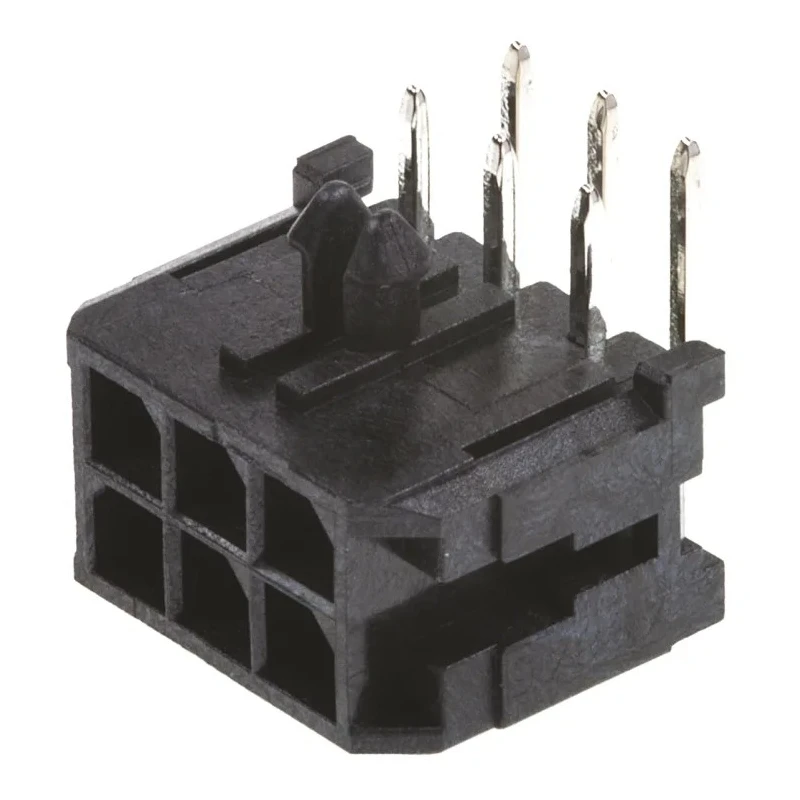

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 6 Contacts, 3 mm Pitch, 2 Row, Shrouded 43045-0600
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5.0 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- This connector carries up to 5A current, supporting low to mid-range power distribution.
- It features a thermoplastic housing with positive latching for secure mating and protection.
- The contacts are brass with tin plating, ensuring reliable conductivity and solder termination.
- Designed for through hole mounting with a right angle orientation for PCB installation.
- Fully isolated contacts minimize electrical arcing and improve safety during operation.
- Operating temperature ranges from -40°C to 105°C for versatile environmental use.
- Standardized 3 mm row pitch and mating pin length of 3 mm support compatibility.
- Suitable for medical devices, automotive, safety equipment, and entertainment systems.
Product Description
Molex 43045-0600 Micro-Fit 3.0 Series right angle through hole PCB header is a compact, shrouded electrical connector designed for reliable wire-to-board connections. Featuring 6 male contacts arranged in 2 rows with a 3 mm pitch, this PCB header is rated for a maximum voltage of 250V and can carry up to 5A current, making it suitable for low to medium power electronic applications.
The housing is made from thermoplastic material, offering durability and protection, while a locking ramp provides positive latching to secure the connection and prevent accidental disconnections. The fully isolated dual-beam brass contacts with tin plating ensure efficient electrical conductivity and reduce arcing risks, enhancing safety against shocks or fire hazards.
This PCB header is right angle oriented and designed for through hole mounting onto printed circuit boards with snap-in plastic peg PCB locks for stable installation. Its wide operating temperature range, from -40°C to 105°C, enables functionality in harsh industrial and commercial environments.
Common industrial applications include medical device assembly, automotive electrical components, security and safety equipment, and audio-visual entertainment systems. The product complies with glow wire testing standards, guaranteeing additional electrical safety during overcurrent or short circuit events.
This connector enables efficient multi-circuit power distribution on PCBs. The shrouded design offers insulation against short circuits and corrosion protection. Brass contacts provide superior mechanical and electrical performance.
Positive locking mechanism ensures secure mating connections. Compatible with automated soldering processes and SMT manufacturing.
Manufactured in China, Molex Micro-Fit 3.0 Series connectors are recognized for their high quality and reliability in electronics manufacturing and assembly settings. Explore more PCB Headers and connectors in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header can carry up to 5A current, making it suitable for low to medium power electronic applications.
The connector is rated for a maximum voltage of 250V, ensuring compatibility with various electronic applications.
The housing is made from thermoplastic material, while the contacts are brass with tin plating, ensuring reliable conductivity and solder termination.
It operates efficiently within a temperature range of -40°C to 105°C, suitable for diverse environmental conditions.
This model is designed for through hole mounting onto printed circuit boards, featuring snap-in plastic peg PCB locks for secure installation.
The Molex Micro-Fit 3.0 Series connector features 6 male contacts arranged in 2 rows with a 3 mm pitch.
It uses solder termination, which is compatible with automated soldering processes and SMT manufacturing.
The connector is designed with a right angle orientation, facilitating efficient space utilization on PCBs.
It is suitable for applications in medical devices, automotive electrical components, safety equipment, and audio-visual entertainment systems.
The fully isolated contacts minimize electrical arcing, and the shrouded design provides insulation against short circuits and corrosion protection.
The contact pitch of this model is standardized at 3 mm, supporting compatibility with various applications.
This connector is manufactured in China, recognized for its quality and reliability in electronics manufacturing.
