Wurth Elektronik WR-UMRF Series UMRF Coaxial Cable 50 Ω, 0.001 m Length, 200 Vrms, Black, Terminated 636201041000

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-UMRF Series UMRF Coaxial Cable 50 Ω, 0.001 m Length, 200 Vrms, Black, Terminated 636201041000

Name: Wurth Elektronik WR-UMRF Series UMRF Coaxial Cable 50 Ω, 0.001 m Length, 200 Vrms, Black, Terminated 636201041000
Brand: Wurth Elektronik
SKU: 172765
Price: 5.62 USD
Availability: InStock



Category Coaxial Cable Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Brand	Wurth Elektronik
Cable Length	0.001m
Series	WR-UMRF
Outside diameter	1.13mm
Maximum Operating Temperature	90°C
Conductor Material	Phosphor Bronze
Minimum Operating Temperature	-40°C
Jacket Material	Fluorinated Ethylene Propylene
Attenuation	5.85 dB
Standards/Approvals	REACH, RoHS
Characteristic Impedance	50Ω
Jacket Colour	Black
Fire Behaviour	VW-1
Conductor Type	Solid
Terminated/Unterminated	Terminated
Coaxial Type	UMRF

Key Features

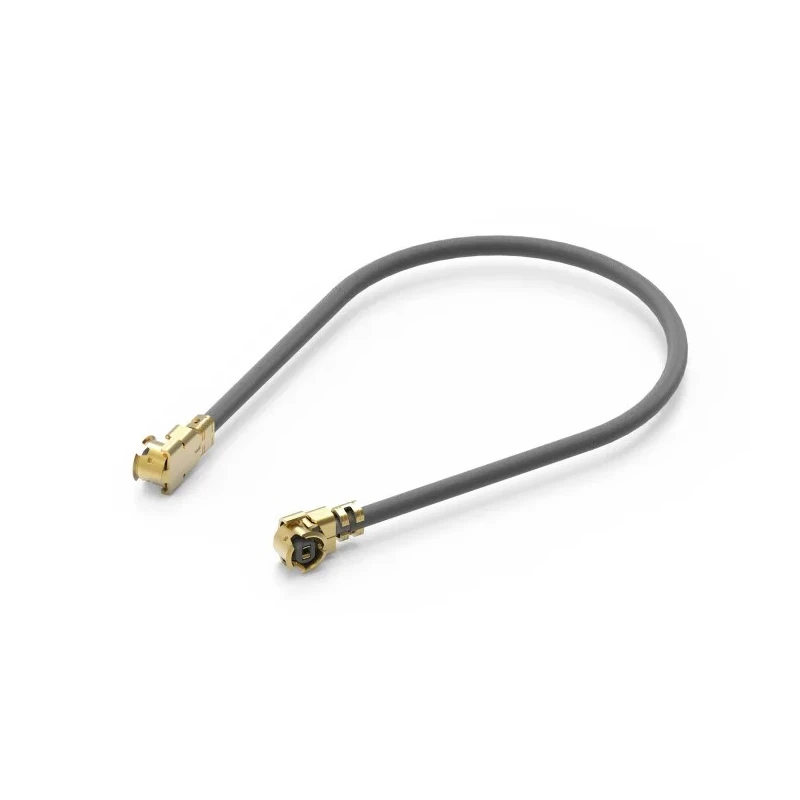

This coaxial cable is terminated with UMRF right angle plugs featuring gold over nickel contact plating on both connectors.
The cable jacket is made of fluorinated ethylene propylene (FEP) providing excellent chemical and thermal resistance.
Designed for operating temperatures from -40°C to 90°C, suitable for various industrial applications.
Minimum bending radius is 4 mm, allowing flexibility in tight installation spaces.
It supports signal frequencies up to 6 GHz with a low insertion loss of 1.17 dB.
The conductor is solid phosphor bronze, ensuring reliable signal transmission.
Black jacket color with VW-1 fire behaviour rating.
Complies with REACH and RoHS environmental standards.

Product Description

Wurth Elektronik 636201041000 UMRF Coaxial Cable is a high-performance, terminated coaxial cable designed for advanced electrical and networking applications. This cable features UMRF right angle plugs terminated on both ends with gold over nickel contact plating, ensuring excellent connectivity and durability.

The cable itself has a length of 0.001 m and an outside diameter of 1.13 mm. It supports a characteristic impedance of 50 Ω and operates reliably with an RMS voltage rating of 200 Vrms. The conductor is made of solid phosphor bronze, enhancing signal integrity with low attenuation of 5.85 dB.

The jacket is constructed from fluorinated ethylene propylene (FEP), which offers high thermal resistance and chemical stability, rated for operation between -40°C and 90°C. The VW-1 fire behaviour rating indicates robust fire resistance, suitable for demanding industrial environments.

This coaxial cable series supports frequencies up to 6 GHz with low insertion loss (1.17 dB), making it suitable for high-frequency signal transmission in applications such as instrumentation, communications, and network cabling setups.

The cable’s minimum bending radius of 4 mm allows installation flexibility in confined spaces without compromising performance. Additionally, the cable is compliant with environmental and safety standards including REACH and RoHS.

This UMRF Coaxial Cable provides stable impedance and low signal loss. The fluorinated ethylene propylene jacket enhances durability and thermal stability. Gold over nickel plating on connectors ensures reliable electrical contact.

Supporting a wide temperature range makes it suitable for various industrial settings. Compact 0.001 m length ideal for precise cabling needs. Low insertion loss ensures efficient high-frequency data transfer. Certified compliant with RoHS and REACH regulations.

Perfect for applications in electronics manufacturing, testing laboratories, networking, and communication systems, this Wurth Elektronik cable combines precision engineering with reliable performance. Explore our extensive Wires & Cables catalog for more high-quality industrial products.
