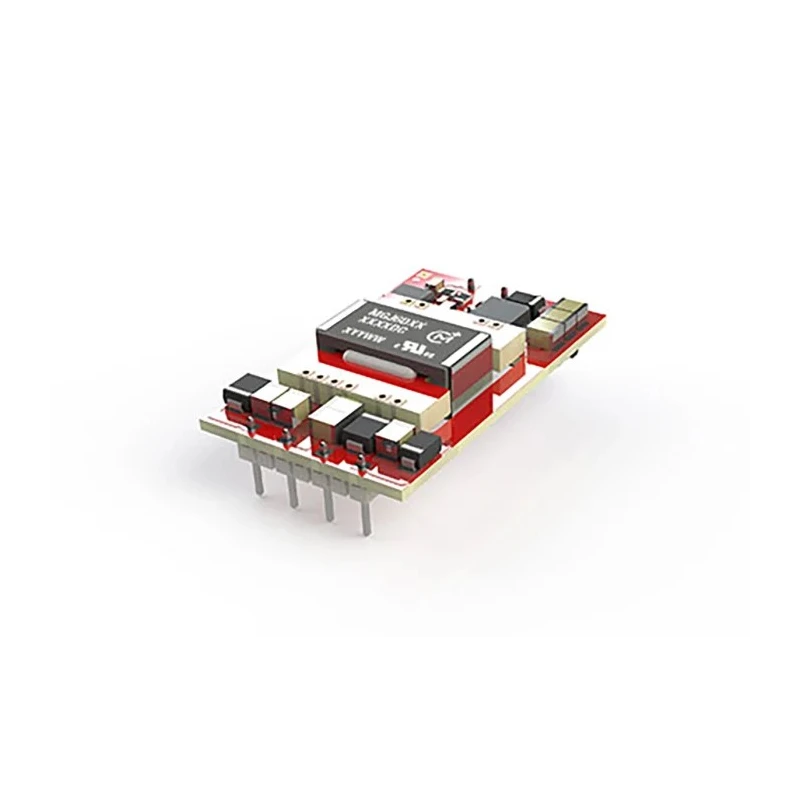

Murata Power Solutions Isolated DC/DC Converter 15V DC Output, 240mA Current, 18V DC Input, +105°C Max Temp MGJ6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 15V d |
| Brand | Murata Power Solutions |
| Length | 45.47mm |
| Model | MGJ6 |
| Depth | 9.88mm |
| Width | 27.81mm |
| Series | MGJ6 |
| Output Current | 240mA |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 15V dc |
| Minimum Input Voltage | 18V dc |
Key Features
- Offers isolated bipolar output voltages ideal for IGBT and MOSFET gate drive applications.
- Designed with high isolation to meet motor drive and inverter requirements.
- Surface mount package with ultra low coupling capacitance of 15pF enhances performance.
- Capable of continuous barrier withstand voltage of 3kV DC for reliability.
- Tested to withstand isolation voltage up to 5.7kV DC ensuring safe operation.
- Compact size with dimensions 45.47mm (L) x 27.81mm (W) x 9.88mm (D) suits space-constrained designs.
- Wide operating temperature range from -40 °C to +105 °C supports harsh environments.
- Power rating suitable for 0.75W to 15W applications in industrial and electronic equipment.
Product Description
Murata Power Solutions MGJ6D241510DC is an isolated DC/DC converter designed to deliver stable 15V DC output at 240mA from an 18V DC input supply. It supports industrial applications requiring high isolation and reliability, such as motor drives, inverters, and bridge circuits utilizing IGBTs and MOSFETs.
The MGJ6 series converters feature optimized bipolar output voltages to improve gate drive efficiency. The device is packaged in a low-profile surface mount format, enabling integration into compact PCB designs with its precise dimensions of 45.47mm in length, 27.81mm width, and 9.88mm depth.
Its key electrical characteristics include a continuous isolation barrier voltage rating of 3kV DC, effective coupling capacitance as low as 15pF, and an isolation test voltage up to 5.7kV DC. The product is engineered to operate reliably in extreme temperatures ranging from -40 °C to +105 °C, making it suitable for demanding industrial, commercial, and HVAC power supply environments.
The MGJ6D241510DC model is ideal for applications in industrial electronics, motor control, power supply systems, and semiconductor device gate driving, providing efficient power conversion with robust isolation.
Offers isolated bipolar output voltages ideal for IGBT and MOSFET gate drive applications. Designed with high isolation to meet motor drive and inverter requirements. Surface mount package with ultra low coupling capacitance of 15pF enhances performance.
Capable of continuous barrier withstand voltage of 3kV DC for reliability. Tested to withstand isolation voltage up to 5.7kV DC ensuring safe operation. Compact size with dimensions 45.47mm (L) x 27.81mm (W) x 9.88mm (D) suits space-constrained designs.
Wide operating temperature range from -40 °C to +105 °C supports harsh environments. Power rating suitable for 0.75W to 15W applications in industrial and electronic equipment. Explore more DC/DC Converters and related products to find optimal power supply solutions for your industrial and commercial electronic equipment at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 15V DC.
It can provide a maximum output current of 240mA.
This unit requires a minimum input voltage of 18V DC.
The operating temperature range is from -40 °C to +105 °C.
The dimensions are 45.47mm in length, 27.81mm in width, and 9.88mm in depth.
It is capable of withstanding a continuous isolation barrier voltage of 3kV DC and has been tested for isolation voltage up to 5.7kV DC.
This model is suitable for industrial applications, particularly in motor drives, inverters, and gate drive applications for IGBTs and MOSFETs.
The coupling capacitance is as low as 15pF, enhancing its performance.
It is suitable for power applications ranging from 0.75W to 15W.
It comes in a low-profile surface mount package, making it suitable for compact PCB designs.
The country of origin for this model is India.
This model belongs to the MGJ6 series of isolated DC/DC converters.
