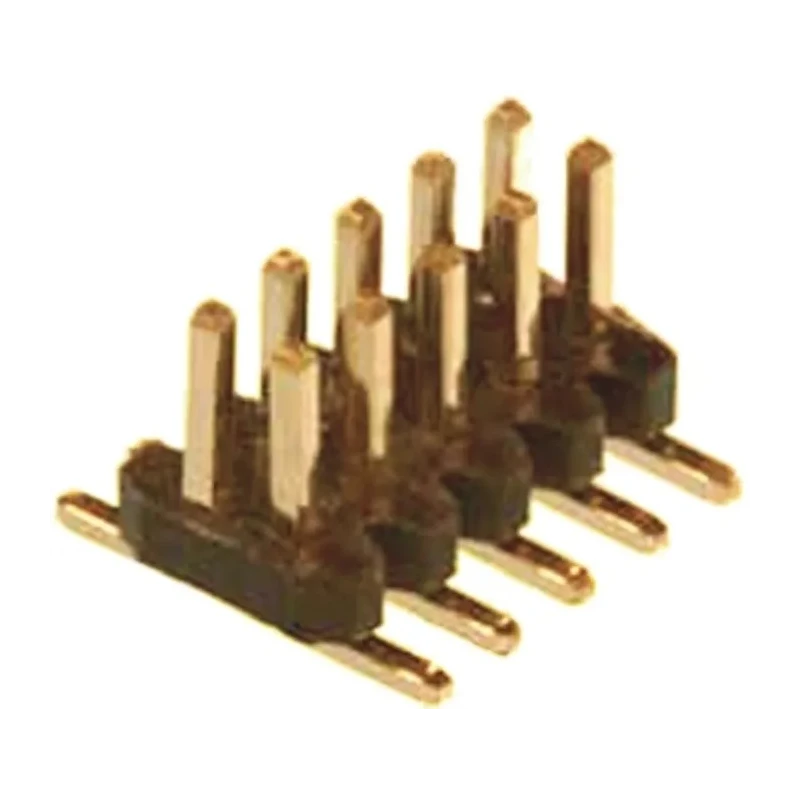

Amphenol Communications Solutions Minitek127 Series Straight Surface Pin Header 16 Contact 1.27 mm Pitch 2 Row MINITEK127
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 125V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 1A |
| Model | Minitek127 |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | Minitek127 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Mating Pin Length | 3.05mm |
Key Features
- This straight surface mount pin header features 16 contacts arranged in 2 rows with a pitch of 1.27 mm.
- Constructed with a high-temperature black thermoplastic housing with UL 94 V-0 flammability rating.
- Contacts made of copper alloy with gold plating for enhanced conductivity and corrosion resistance.
- Rated for 1 A continuous current and a maximum voltage of 125 V.
- Designed for durability withstanding up to 100 mating cycles and operating in temperatures from -55°C to 125°C.
- Unshrouded male contacts with a mating pin length of 3.05 mm suitable for wave solder applications.
- Compatible with a broad range of Board-to-Board MINITEK 127™ connectors and intermateable with other common designs.
Product Description
Amphenol Communications Solutions Minitek127 Series MINITEK127 model is a high-quality PCB Pin Header connector with 16 contact points arranged in 2 rows and a 1.27 mm pitch, designed for surface mount Board-to-Board electronic connections. The straight, unshrouded pin header features a robust housing made from high temperature black thermoplastic material with a UL 94 V-0 flammability rating, ensuring reliability and safety in demanding electronic applications.
The contacts are made from copper alloy and plated with gold to provide excellent electrical conductivity and resistance to oxidation, supporting a continuous current rating of 1 A and voltage rating up to 125 V. The connector tolerates an operating temperature range from -55°C to 125°C, suitable for various industrial and electronic environments.
This connector is engineered to support up to 100 mating cycles, making it durable for repeated assembly and disassembly processes. The mating pin length of 3.05 mm offers secure and consistent connections with Board-to-Board MINITEK SMT receptacles.
The MINITEK 127™ system from Amphenol Communications Solutions includes a versatile range of device options, including straight and right-angle configurations, surface mount and through-hole mount types, and compatibility across multiple connector designs due to its non-proprietary standard.
This pin header is widely used in electronic manufacturing, industrial automation, measurement equipment, and communication devices where reliable, compact, and consistent electrical connections are critical. Its high temperature resistance and compliance with industrial standards make it ideal for professional electronics assemblers and designers.
This straight 16-contact surface mount pin header supports 1 A current capacity. Gold-plated copper alloy contacts ensure reliable signal transmission. Housing made from UL 94 V-0 flammability rated thermoplastic for durability.
Operating temperature range suitable for harsh environments from -55°C to 125°C. Designed for wave solder applications with up to 100 mating cycles. Compatible with a broad range of Board-to-Board MINITEK connectors. Explore the full range of Amphenol Communications Solutions connectors and electronics components on EnvMart for reliable industrial-grade products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 16 contacts arranged in 2 rows with a pitch of 1.27 mm.
It has a maximum voltage rating of 125 V.
This pin header is rated for a continuous current of 1 A.
The housing is made from high-temperature black thermoplastic, and the contacts are made of copper alloy with gold plating.
It operates within a temperature range from -55°C to 125°C.
This model is designed to withstand up to 100 mating cycles.
It uses a solder termination type.
The mating pin length is 3.05 mm.
Yes, it is compatible with a broad range of Board-to-Board MINITEK connectors and intermateable with other common designs.
The housing material has a UL 94 V-0 flammability rating.
It is widely used in electronic manufacturing, industrial automation, measurement equipment, and communication devices.
This pin header is part of a Board-to-Board connector system.
