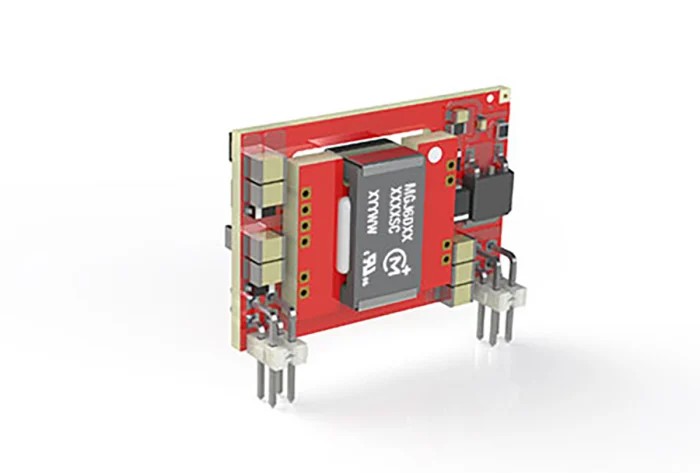

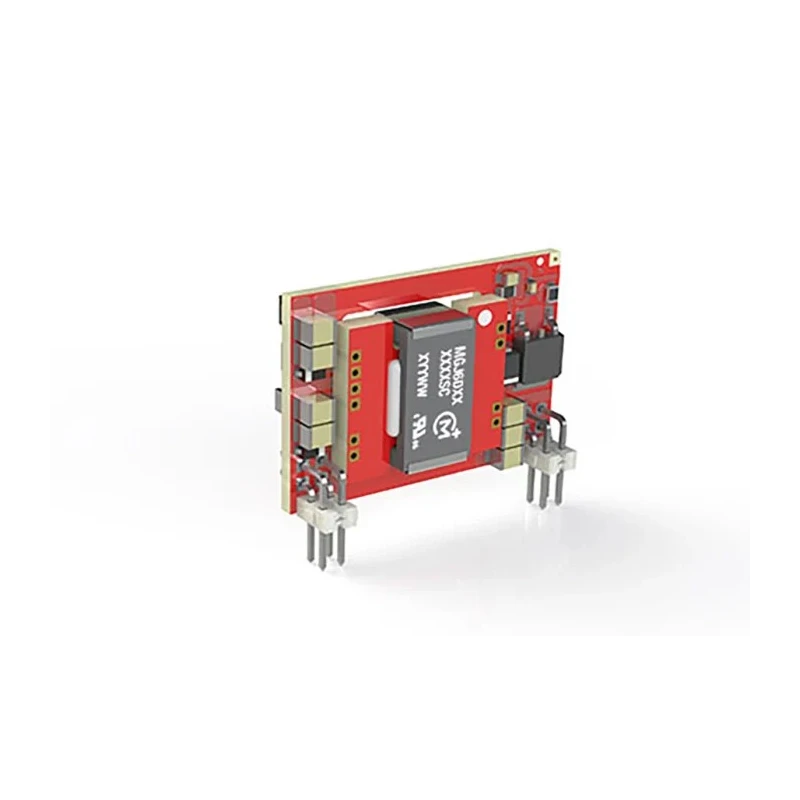

Murata Power Solutions Isolated DC/DC Converter 20V DC Output, 240mA, 36V DC Max Input, 18V Min Input, 4.8W, PCB Mount MGJ6

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions Isolated DC/DC Converter 20V DC Output, 240mA, 36V DC Max Input, 18V Min Input, 4.8W, PCB Mount MGJ6

Name: Murata Power Solutions Isolated DC/DC Converter 20V DC Output, 240mA, 36V DC Max Input, 18V Min Input, 4.8W, PCB Mount MGJ6
Brand: Murata Power Solutions
SKU: 203292
Price: 969.19 USD
Availability: InStock



Category DC/DC Converter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	India
Voltage	Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 20V d
Brand	Murata Power Solutions
Efficiency	82%
Length	38.89mm
Model	MGJ6
Depth	10.9mm
Gross Weight	12g
Width	28.12mm
Mount Type	PCB
Series	MGJ6
Maximum Operating Temperature	105°C
Package Type	SIP
Minimum Operating Temperature	-40°C
Number of outputs	2
Ripple and Noise	150mV Pk-Pk
Maximum Output Power	4.8W
Maximum Input Voltage	36V dc
Standards/Approvals	RoHS, UL, ANSI, EN
Minimum Input Voltage	18V
Output Voltage 1	20V dc
Output Current 1	240mA
Isolation Voltage	5.7kV dc
Output Voltage 2	-5V dc

Key Features

Operates with 20V DC output voltage and 240mA output current.
Maximum input voltage rating of 36V DC with a minimum of 18V DC.
PCB mount type with SIP package for compact integration.
Delivers maximum output power of 4.8W at 82% efficiency.
Provides high isolation voltage of 5.7kV DC for safety.
Supports operating temperatures from -40°C up to 105°C.
Low ripple and noise level at 150mV peak-to-peak.
Compliant with RoHS, UL, ANSI, and EN industry standards.

Product Description

Murata Power Solutions MGJ6 isolated DC/DC converter MGJ6 provides reliable dual output voltage conversion optimized for gate drive circuits of IGBTs and MOSFETS in bridge configurations. With output voltages of 20V DC and -5V DC, and an output current of 240mA, it supports precision drive levels to boost system efficiency.

This device operates from a DC input voltage range of 18V to 36V, making it suitable for a variety of power supply environments including industrial and motor drive applications. Its PCB mount and SIP package type allow easy integration on circuit boards especially in space-conscious layouts.

The MGJ6 series is designed with a high isolation voltage of 5.7kV DC and ultra-low coupling capacitance of 15pF, suitable for applications requiring high isolation such as inverters and motor drives. It delivers a maximum output power of 4.8W at an efficiency level of 82%, balancing power needs and energy savings.

Operating reliably over a temperature range from -40°C to 105°C, this converter withstands harsh industrial conditions. The low ripple and noise of 150mV peak-to-peak ensures stable and clean power supply for sensitive electronics.

The converter has a compact footprint with dimensions 38.89mm (L) x 28.12mm (W) x 10.9mm (D) and weighs only 12 grams. Certified to meet RoHS, UL, ANSI, and EN standards for electrical components, providing safety and quality assurances.

Ideal for industrial, motor drive, inverter, and power management applications requiring robust isolated DC-DC conversion.

This robust product from Murata Power Solutions ensures long service life and high reliability in demanding electronic environments. For users looking for reliable, compact, and efficient isolated DC/DC converters, the MGJ6 series offers an effective solution.
