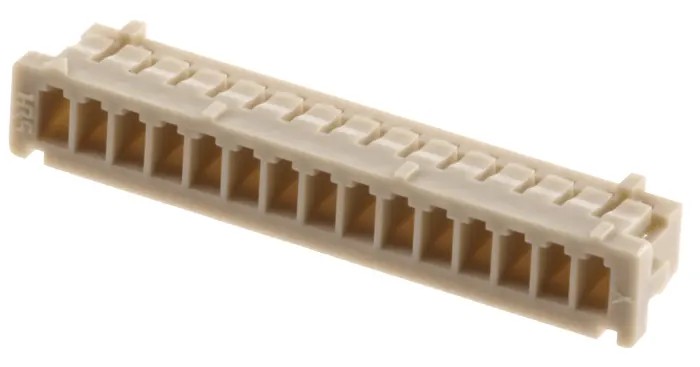

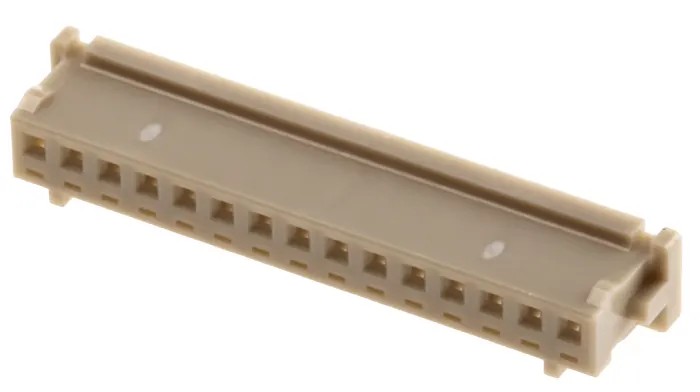

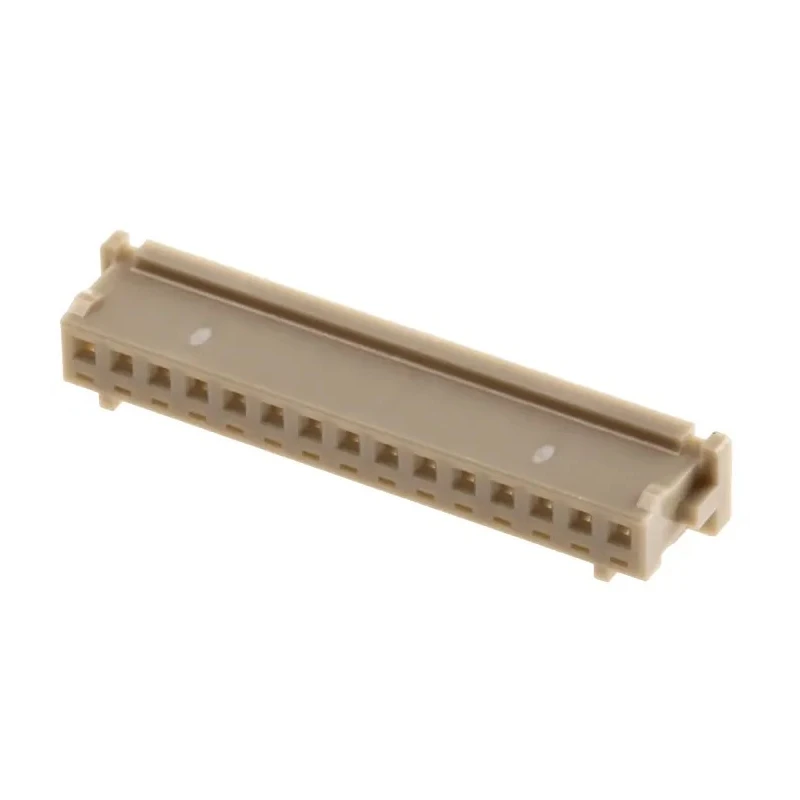

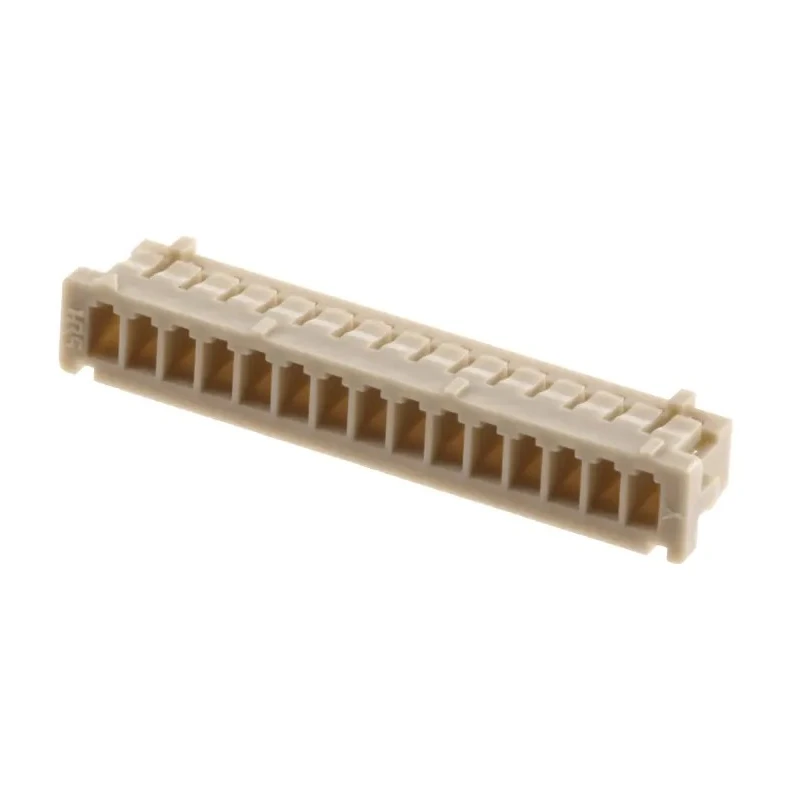

Hirose Male Connector Housing, 1.25 mm Pitch, 15 Way, 1 Row, Cable Mount, Polyamide DF13
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 20.4mm |
| Model | DF13 |
| Width | 3.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| For Use With | Miniature Crimping Connector |
| Standards/Approvals | UL94V-0, RoHS Compliant |
| Number of Contacts | 15 |
| Connector Gender | Male |
Key Features
- Miniature 1.25 mm pitch enables compact and high-density PCB assemblies.
- Single row design with 15 contacts ensures efficient signal routing.
- Male connector housing designed for cable mounting.
- Made from robust polyamide for durability and electrical insulation.
- Secure friction locking mechanism prevents unintentional disconnection.
- Polarisation slots protect against incorrect mating.
- Suitable for use with Hirose DF13 series connectors.
- Straight orientation simplifies assembly and integration.
Product Description
The Hirose DF13-15S-1.25C is a male connector housing engineered for reliable cable-to-board connections in electronic assemblies where compact size and secure mating are essential. With a 1.25 mm pitch and single-row, 15-position arrangement, this connector housing is part of the versatile DF13 series, known for its miniature dimensions and robust design.
Constructed from durable polyamide, the housing provides both mechanical strength and excellent insulation, allowing it to meet the requirements of demanding industrial environments. Its cable mount configuration enables flexible wiring options, making it suitable for integration in digital cameras, LCD displays, automotive systems, measurement devices, and access control units.
The connector features a friction locking mechanism and polarisation slots, which help prevent accidental disengagement and misalignment during assembly. Its straight orientation is ideal for streamlined routing of cables and efficient use of space within compact enclosures. The 1.25 mm pitch allows for dense packing of signals on modern PCB layouts, supporting applications where higher connection densities are needed.
Installation is straightforward - simply mate the male housing with compatible crimping connectors from the Hirose DF13 series. The product is RoHS compliant and rated to UL94V-0 flammability standards, ensuring suitability for a wide range of industrial, commercial, and laboratory applications.
Typical use cases include instrumentation, communication equipment, consumer electronics, and automotive modules, where rapid, secure, and space-saving wire-to-board connectivity is critical to system functionality.
Discover more Hirose connectors and related solutions in the PCB Connector Housing category on EnvMart, or browse by brand to find components tailored to your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 1.25 mm, allowing for compact and high-density PCB assemblies.
This model features 15 contacts arranged in a single row, ensuring efficient signal routing.
It is constructed from polyamide, which provides mechanical strength and excellent electrical insulation.
This connector housing is designed for cable mounting, offering flexible wiring options.
The product is RoHS compliant and rated to UL94V-0 flammability standards, ensuring suitability for various applications.
The length of the housing is 20.4 mm and the width is 3.2 mm, making it suitable for compact installations.
The connector housing includes a secure friction locking mechanism and polarisation slots to prevent unintentional disconnection and incorrect mating.
This model has a straight orientation, which simplifies assembly and integration in electronic assemblies.
Typical applications include digital cameras, LCD displays, automotive systems, measurement devices, and access control units.
The connector housing is manufactured in India, ensuring compliance with international standards.
The connector gender of this housing is male, designed for secure cable-to-board connections.
