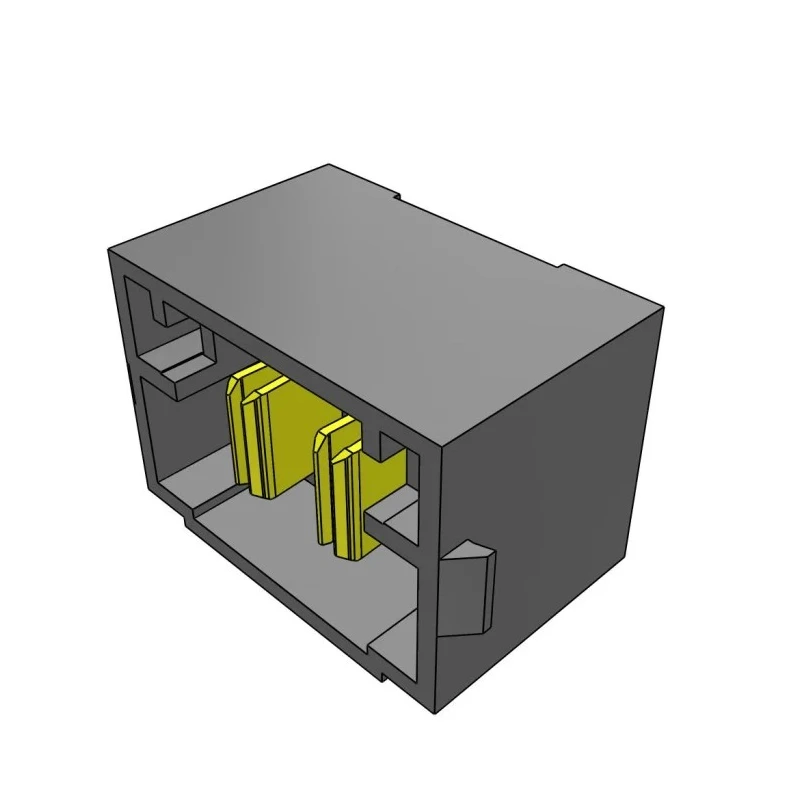

Samtec MPT Series Vertical Through Hole PCB Header, 2 Contacts, 5 mm Pitch, 1 Row, Shrouded MPT-02-6.30-01-T-V
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 575V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 28.8A |
| Model | MPT-02-6.30-01-T-V |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | MPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 5mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features a shrouded design for secure mating and protection.
- Constructed with a housing made of liquid crystal polymer for durability.
- Copper alloy contacts plated with gold ensure reliable conductivity.
- Supports a current rating of 28.8 A per contact for power applications.
- Operates within a temperature range of -55°C to 125°C for diverse environments.
- Male contact gender with a vertical orientation for through-hole mounting.
- Designed for solder termination for secure PCB attachment.
- Polarized alignment enhances correct connector mating.
Product Description
The Samtec MPT-02-6.30-01-T-V is a vertical through hole PCB header designed for board-to-board connector systems in demanding electronic applications. Featuring a 5 mm pitch and 2 contacts in a single row, this shrouded header provides robust electrical connectivity with a current rating of 28.8 A per contact.
Constructed with a liquid crystal polymer housing, the connector ensures high mechanical strength and thermal stability within operating temperatures from -55°C to 125°C. The contacts are made from copper alloy and plated with gold to guarantee excellent conductivity and corrosion resistance.
This header uses a male contact gender and is configured for solder termination, making it suitable for through-hole mounting on printed circuit boards. Its polarized alignment ensures proper orientation during assembly, reducing connection errors.
Applications include industrial electronics, power distribution circuits, manufacturing equipment, and other environments where reliable high power connections and durability are required. The component is lead free solderable and compliant with RoHS directives, supporting environmentally conscious manufacturing.
Shrouded vertical through hole PCB header with 2 contacts. 5 mm pitch and single row configuration. Housing material: liquid crystal polymer for enhanced durability. Copper alloy contacts plated with gold for optimal conductivity.
Current rating: 28.8 A per contact suitable for power applications. Operating temperature range: -55°C to 125°C. Male contact gender with solder termination type. Polarized alignment for secure and correct mating. RoHS compliant and lead free solder able.
This product is ideal for use in electronic components manufacturing, industrial control systems, and other applications requiring reliable, high-current PCB connections. Explore more in the PCB Header category at EnvMart for compatible components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this PCB header is 28.8 A per contact, making it suitable for power applications.
It operates within a temperature range of -55°C to 125°C, allowing it to function in diverse environments.
The housing is constructed from liquid crystal polymer, which provides high mechanical strength and thermal stability.
This model features 2 contacts in a single row configuration.
It is designed for solder termination, which allows for secure attachment to printed circuit boards.
Yes, this product is RoHS compliant and lead free solderable, supporting environmentally conscious manufacturing practices.
The pitch of this header is 5 mm, suitable for various board-to-board applications.
This PCB header has a male contact gender, designed for vertical orientation in through-hole mounting.
It supports a board-to-board connector system, ideal for high-current PCB connections.
The contacts are made from copper alloy and are plated with gold to ensure reliable conductivity and corrosion resistance.
The country of origin for this PCB header is India.
It is suitable for applications in industrial electronics, power distribution circuits, and manufacturing equipment where reliable high power connections are required.
