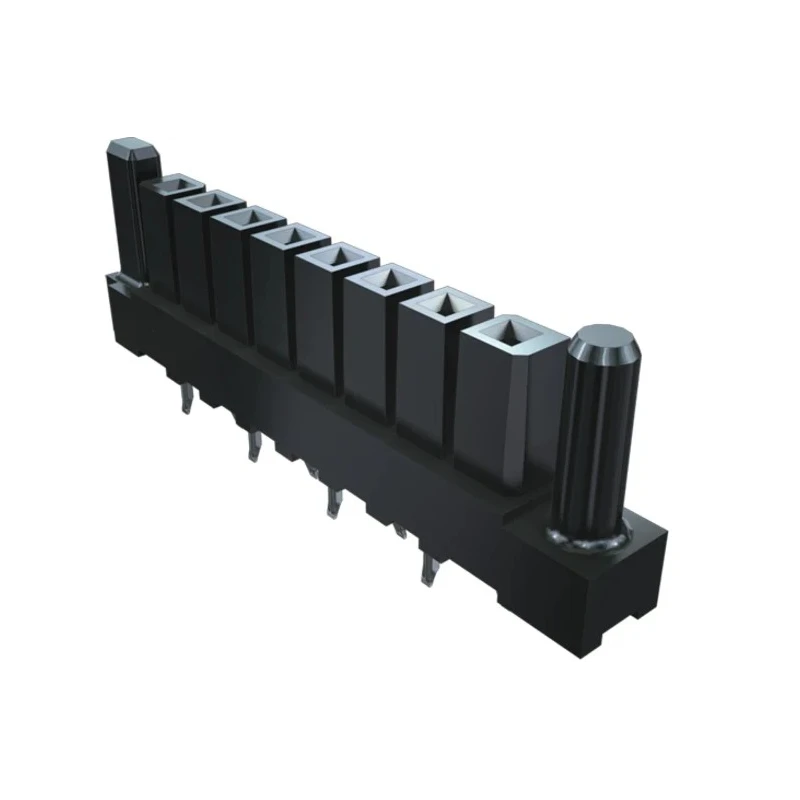

Samtec IPBS Series Straight Through Hole PCB Socket, 8-Contact, 2 Row, 4.191 mm Pitch, 5.3A, 565V IPBS-104-02-T-D

Name: Samtec IPBS Series Straight Through Hole PCB Socket, 8-Contact, 2 Row, 4.191 mm Pitch, 5.3A, 565V IPBS-104-02-T-D
Brand: Samtec
SKU: 172468
Price: 4.73 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	565V
Brand	Samtec
Orientation	Straight
Current	5.3A
Model	IPBS-104-02-T-D
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	IPBS
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	4.191mm
Standards/Approvals	RoHS
Contact Plating	Matt Tin
Number of Contacts	8
Contact Gender	Female
Connector System	Board-to-Board
Row Pitch	4.19mm

Key Features

Constructed with liquid crystal polymer housing ensuring durability and stability.
Through hole mount type allowing secure PCB attachment.
Contact material is phosphor bronze plated with matt tin for reliable conductivity.
Designed for board-to-board connector system with straight orientation.
Operating temperature range from -55°C to 105°C suitable for various industrial environments.
IPBS series provides individually shrouded contacts enhancing electrical isolation.
Compliant with RoHS standards for environmental safety.
Connector features female contact gender for compatibility.

Product Description

The Samtec IPBS-104-02-T-D is a high-quality straight through hole PCB socket designed for board-to-board connections, featuring 8 contacts in 2 rows spaced at a 4.191 mm pitch. It supports an operating current of 5.3 amperes and withstands voltages up to 565 volts.

The socket housing is made from liquid crystal polymer, delivering robustness and reliable mechanical performance. It uses phosphor bronze contacts with matt tin plating aimed at providing consistent electrical conductivity and corrosion resistance. The connector’s female contact design ensures secure mating with corresponding pins.

This through hole mounted PCB socket offers straight orientation, facilitating a stable and durable connection on electronic boards. It is suitable for a wide range of industrial applications, including electronic component assemblies, board interconnections in industrial control systems, and other demanding environments requiring reliable electrical connectors.

Designed to operate in extreme temperature conditions ranging from -55°C to 105°C, this component complies with RoHS standards, assuring environmentally responsible manufacturing. The IPBS series emphasizes electrical isolation through individually shrouded contacts, preventing short circuits and enhancing performance in complex circuit layouts.

Constructed from liquid crystal polymer housing for mechanical strength. Phosphor bronze contact material with matt tin plating for durable conductivity. Board-to-board connector system with through hole mounting. 8 contacts arranged in 2 rows at a 4.191 mm pitch.

Rated for 5.3 A current and 565 V voltage. Operating temperature range from -55°C up to 105°C. Female contact gender with straight orientation. RoHS compliant ensuring environmental safety.

This PCB Socket is ideal for electronics manufacturing, industrial controls, and electrical assembly applications where durability and precise interconnects are essential. Browse EnvMart collections for a wide range of PCB connectors and sockets that meet industrial standards and performance requirements.
