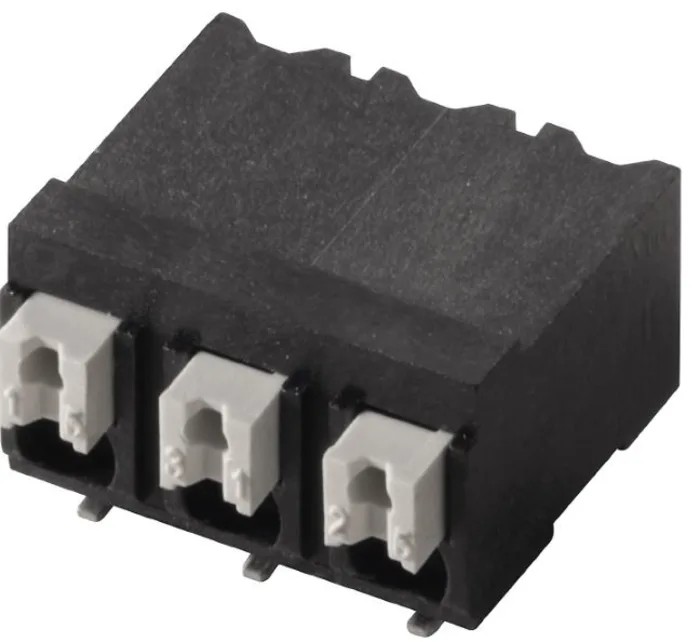

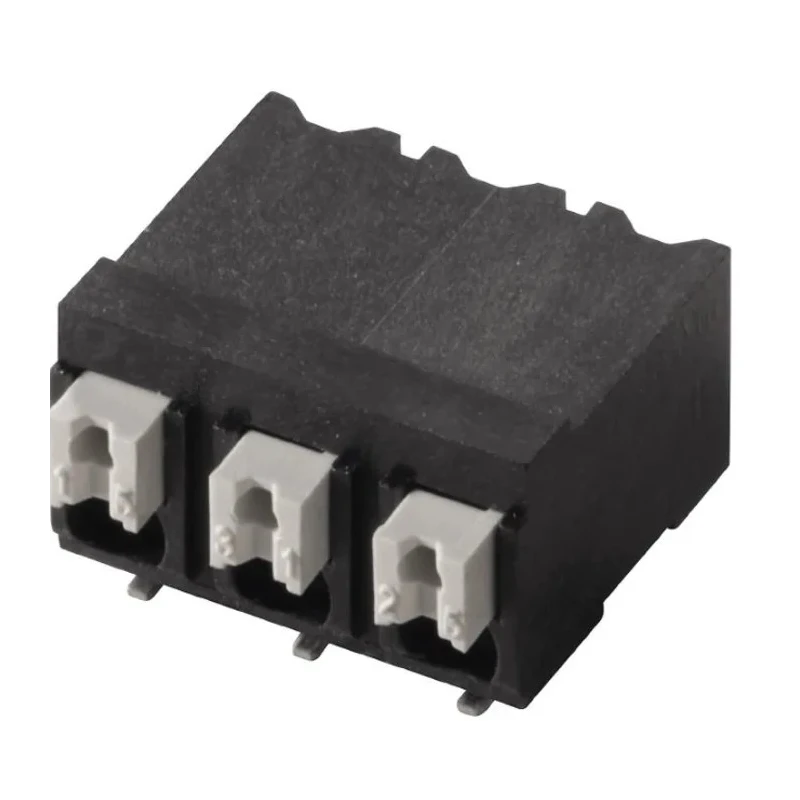

Weidmüller LSF Series PCB Terminal Block 6-Contact 5 mm Pitch 1 Row 500V Push-In Connection 1473810000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 90° |
| Current | 17.5A |
| Depth | 14.75mm |
| Width | 29.2mm |
| Housing Material | Liquid Crystal Polymer Fibreglass |
| Series | LSF |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | RoHS, UL E60693 |
| Number of Contacts | 6 |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Push-in |
Key Features
- Reliable push-in wire connection method enabling quick and secure conductor insertion without tools.
- Rated for 17.5 amperes current and 500 volts voltage capacity for robust performance.
- Constructed from liquid crystal polymer fibreglass housing material for excellent durability and heat resistance.
- Compact dimensions including 29.2 mm width and 14.75 mm depth facilitate integration in dense PCB layouts.
- Supports wire sizes from 2 mm² to 1.5 mm² and AWG 28 to 14, accommodating a range of conductor sizes.
- Meets safety and environmental standards including RoHS compliance and UL E60693 certification.
- Orientation fixed at 90 degrees with a black color finish for easy identification.
Product Description
The Weidmüller 1473810000 LSF Series PCB Terminal Block is designed for automated reflow soldering assembly with a push-in conductor connection system, making it ideal for industrial electronics manufacturing.
This 6-contact pluggable terminal block features a 5 mm pitch in a single-row layout, ensuring compact and efficient PCB design compatibility. The push-in connection allows solid wires or wires with ferrules to be connected and detached quickly and securely without requiring additional tools, enhancing assembly speed and reliability.
The housing is made of liquid crystal polymer fibreglass which provides excellent mechanical and thermal stability, suited for various industrial applications including power electronics and control systems. Rated for 17.5 A current and 500 V voltage, it handles moderate electrical loads safely.
With dimensions of 29.2 mm width and 14.75 mm depth and a 90° orientation, this terminal block integrates seamlessly into compact multi-layer PCB configurations. It supports conductor cross-sections from 1.5 mm² to 2 mm², and AWG sizes 14 to 28, offering versatile wiring options.
Push-in conductor connection system for ease of assembly and maintenance. Compact size ideal for automated SMT assembly processes. Robust material construction ensuring durability and high temperature tolerance. Designed for industrial electronics, manufacturing, and power distribution control.
Complies with RoHS and UL standards for environmental safety and certification.
This product is commonly used in industrial machines, power distribution, electronic control units, and laboratory equipment. It supports automated manufacturing environments requiring reliability and precision.
Explore further options in the electronics components category on EnvMart for compatible accessories and complementary parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 500 volts, making it suitable for moderate electrical loads.
It has a current rating of 17.5 amperes, allowing it to handle various electrical applications safely.
The terminal block has a width of 29.2 mm and a depth of 14.75 mm, facilitating integration into compact PCB layouts.
It supports wire sizes from 2 mm² to 1.5 mm² and AWG sizes from 28 to 14, accommodating a range of conductor types.
It utilizes a push-in connection method, allowing for quick and secure conductor insertion without the need for tools.
The orientation is fixed at 90 degrees, which aids in installation and identification.
The housing is constructed from liquid crystal polymer fibreglass, providing excellent mechanical and thermal stability.
This model features 6 contacts, making it suitable for various connectivity needs in PCB applications.
It complies with RoHS and UL E60693 standards, ensuring environmental safety and certification.
The pitch size of this terminal block is 5 mm, which is essential for efficient PCB design.
It is commonly used in industrial machines, power distribution, electronic control units, and laboratory equipment.
Yes, it is designed for automated reflow soldering assembly, making it ideal for industrial electronics manufacturing.
