Weidmüller LSF Series PCB Terminal Block 3-Contact 7.5 mm Pitch 1 Row 800V Push-in Connection 1826140000

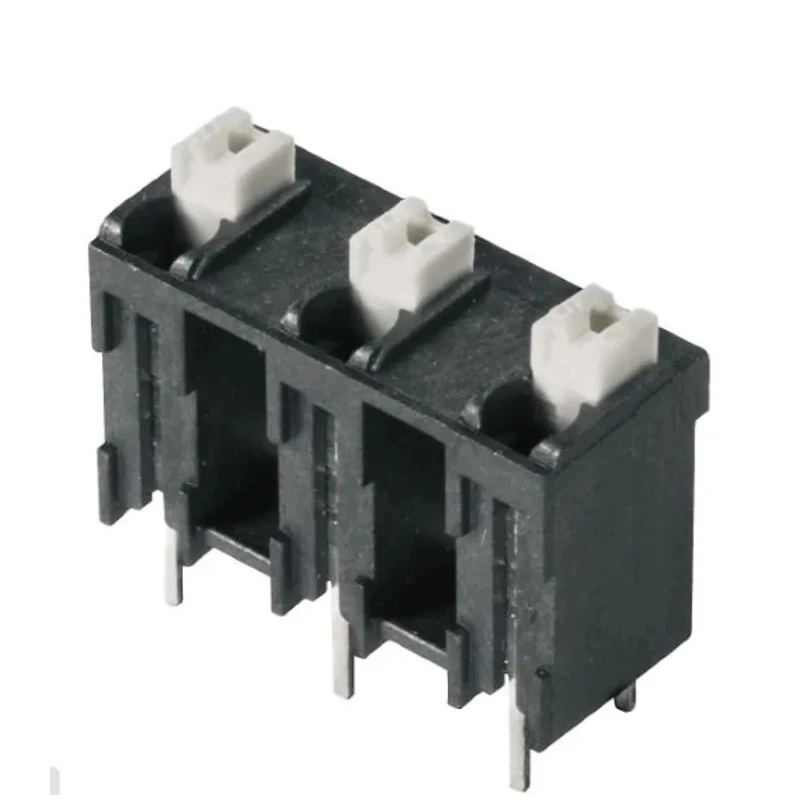

Weidmüller 1826140000 PCB Terminal Block from the LSF Series is designed for robust electronic and industrial applications requiring secure PCB connections with 3 contacts and 7.5 mm pitch spacing. The terminal block supports a nominal voltage of 800V and a current rating of 17.5A, suitable for moderate power electronic circuits and assemblies.

The unit is engineered with a push-in wire connection method allowing for fast and reliable wire insertion without the use of tools. This feature enhances assembly efficiency and reduces maintenance time. The housing is manufactured from Liquid Crystal Polymer Fibreglass, which ensures resistance to heat, mechanical stress, and improves the durability of the terminal block over long-term use in industrial environments.

The terminal block’s conductor connection system aligns with fully automated reflow soldering (SMT) processes, making it suitable for high volume production. It supports both solid wires and wires terminated with ferrules, providing flexibility in wiring options. The clear marking of potentials and clamping points through colored push buttons also aids in correct wiring and troubleshooting.

Conforming with international standards including IEC 60664-1, IEC 61984, UL 1059, and CSA, this terminal block ensures safety, reliability, and compliance with industry regulations. Its compact dimensions with a width of 19.2 mm and depth of 7.8 mm allow for integration into multi-layered PCB designs and compact electronic devices. The 180° orientation enables flexible layout configurations on the printed circuit board.

Supports current of 17.5A suitable for moderate power electronic applications. Pitch optimized at 7.5 mm ensuring compact PCB layouts. Push-in conductor connection system enables easy wire insertion and removal without tools.

Housing made from Liquid Crystal Polymer Fibreglass for enhanced durability and heat resistance. Compatible with solid wires and wires with wire-end ferrules. Complies with IEC 60664-1, IEC 61984, UL 1059, CSA standards for safety and reliability.

Compact design featuring 1 row and a width of 19.2 mm. Voltage rating of 800V with 180° contact orientation.

This product is ideal for industrial, manufacturing, HVAC, and laboratory electronic assemblies requiring reliable, high-quality PCB Terminal Blocks. Explore the comprehensive range of Weidmüller components and similar pluggable terminal blocks on EnvMart for effective circuit connectivity solutions.
