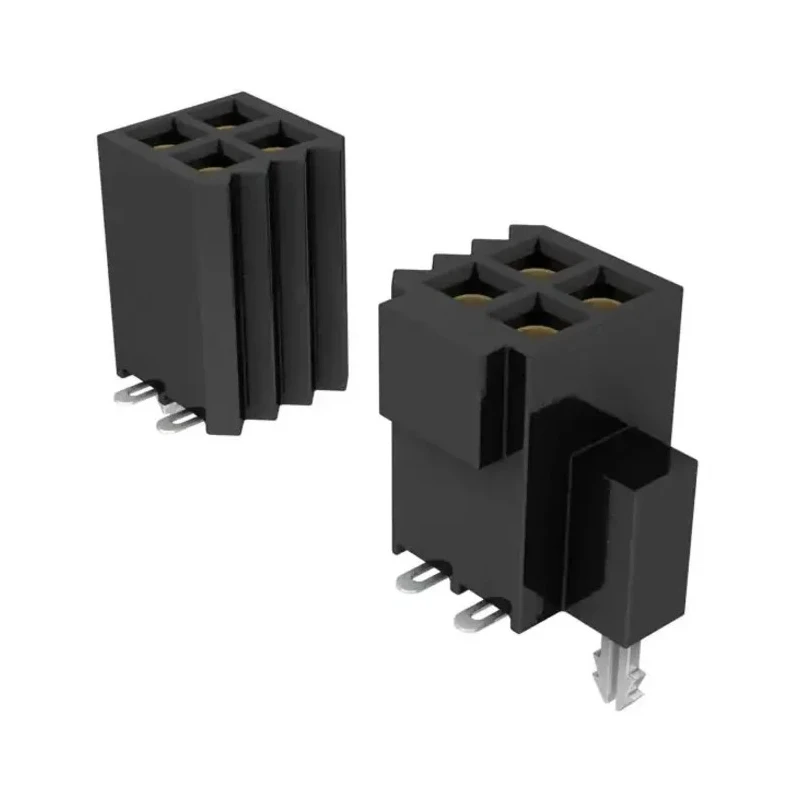

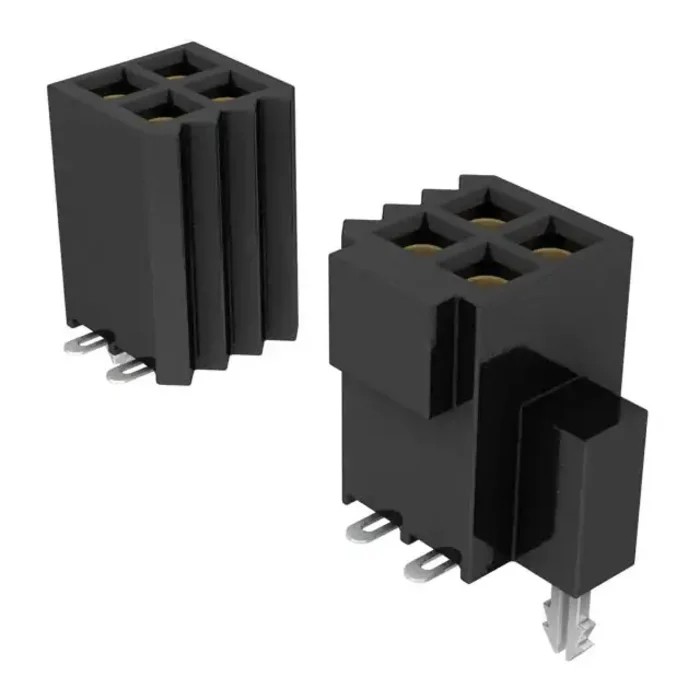

Samtec SFM Series Straight Surface PCB Socket 70-Contact 2 Row 1.27mm Pitch Solder SFM-135-02-S-D-A-K-TR

Samtec SFM-135-02-S-D-A-K-TR is a high-quality PCB socket designed for electronic components requiring reliable board-to-board or cable connections. Featuring a 70-contact capacity arranged in 2 rows with 1.27 mm pitch, this connector ensures precise alignment and strong signal integrity.

The socket's housing is made from liquid crystal polymer, delivering outstanding mechanical strength and thermal stability in demanding industrial and electronic environments. Its female contacts are constructed from beryllium copper alloy with selective gold plating on the contact areas, providing excellent conductivity and corrosion resistance.

Rated for 3.2 amps current and 250 volts, the connector supports a wide range of applications including industrial electronics, communication equipment, and high-reliability PCB systems. The stacking height of 12 mm accommodates various mechanical layouts while maintaining compactness.

Designed for surface mount technology (SMT), the solder termination ensures secure and durable PCB mounting. The component operates reliably across a wide temperature range from -55°C to 125°C, suitable for industrial, manufacturing, and laboratory conditions.

This dual-row socket comes with alignment pins and a polyamide film pick & place pad, facilitating easy automated assembly. It is packaged on tape and reel for efficient handling during production.

Features a straight surface orientation suitable for PCB mounting. Constructed with liquid crystal polymer housing for durability. Contacts are female and plated with gold for optimal conductivity. Supports a current rating of 3.2 A and voltage up to 250 V.

Designed with a stacking height of 12 mm for versatile spacing. Operates between -55°C and 125°C temperature range. Termination type is solder, compatible with surface mount technology. Includes dual-row design with 35 positions per row for 70 total contacts.

Ideal for board-to-board and cable connector systems. Contact material uses beryllium copper alloy ensuring high reliability.

This Samtec series PCB socket is well-suited for applications in industrial electronics, communications, computing devices, and any scenario demanding a high-reliability connection in restricted space. Explore more connectors and electronic components compatible with this series on EnvMart.
