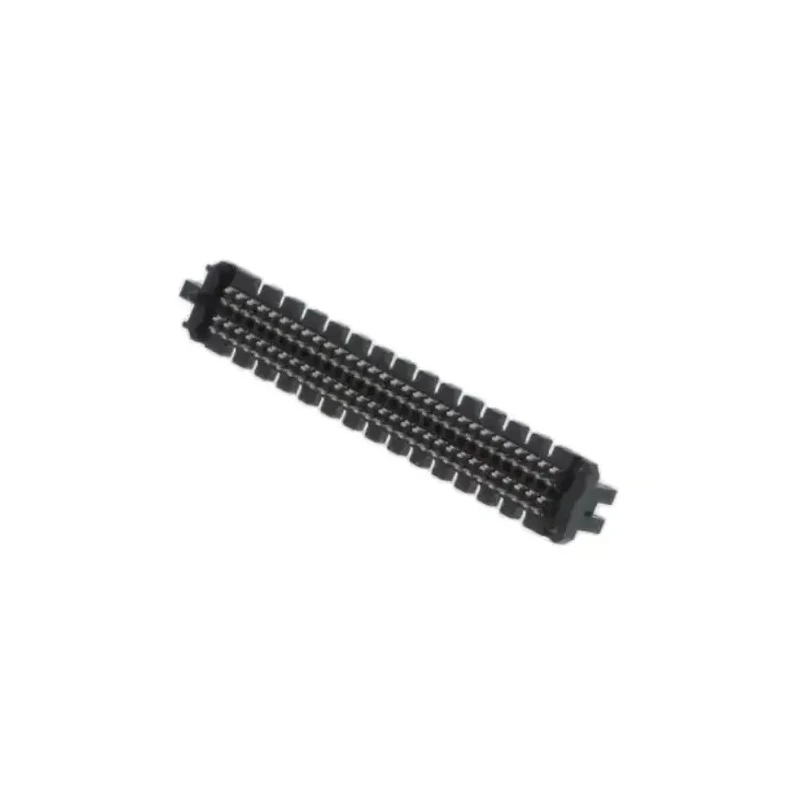

Samtec SEAM Series Vertical Surface PCB Header 120 Contacts 1.27mm Pitch 4 Row Shrouded SEAM-30-02.0-S-04-2-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 2.7A |
| Model | SEAM-30-02.0-S-04-2-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SEAM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Contact Plating | Silver, Tin |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The header is constructed from Liquid Crystal Polymer housing for durability.
- It supports a current of 2.7A and a voltage rating of 240V.
- Features male copper alloy contacts plated with silver and tin for reliable conductivity.
- Designed for surface mounting with vertical orientation and 1.27 mm row pitch.
- Operates efficiently at temperatures ranging from -55°C to 125°C.
- Includes tape and reel packaging suitable for automated assembly.
- Lead-free solder termination type ensures environmental compliance.
- Alignment pin and polyimide film pick and place pad enhance mounting accuracy.
Product Description
Samtec SEAM-30-02.0-S-04-2-A-K-TR is a high-quality vertical surface PCB header designed for industrial and electronic applications requiring reliable board-to-board connection. This connector features 120 contacts arranged over 4 rows with a precise 1.27 mm pitch, maximizing contact density and electrical performance.
Constructed with a durable Liquid Crystal Polymer housing, the header withstands harsh operating conditions with a temperature range from -55°C to 125°C. Its male copper alloy contacts are plated selectively with 0.000762 mm gold on the contact area and matte tin on the tail, ensuring superior conductivity and corrosion resistance.
This shrouded connector ensures proper alignment and connection safety during installation and operation. Designed for surface mount technology, it is compatible with automated production lines and offers tape and reel packaging for ease of use.
Electrical ratings include a current capacity of 2.7A and voltage rating of 240V, suited for a variety of industrial, laboratory, and commercial electronic applications. The lead-free solder termination is environmentally friendly and complies with current standards.
The header body is made of Liquid Crystal Polymer for strength and reliability. Multi-row 4-row design enables dense, high-speed signal transmission. Contact plating with selective gold and tin improves durability and performance.
Shrouded housing provides mechanical protection and precise pin alignment. Tape and reel packaging facilitates automated placement and assembly. Suitable for applications such as PCB connectors in electronics manufacturing.
Operates reliably within a wide temperature range for diverse environments. Vertical orientation and surface mount design for compact PCB layouts. Offers a dependable male contact interface for board-to-board connections.
This Samtec SEAM Series PCB Header is a versatile component ideal for high-density board connectors in electronics manufacturing, automation equipment, and instrumentation. Explore EnvMart for more advanced electronics components and connectors from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current of 2.7A and has a voltage rating of 240V.
This model features a 1.27 mm pitch and includes 120 contacts arranged over 4 rows.
The housing is constructed from Liquid Crystal Polymer, providing durability and strength.
It uses a lead-free solder termination type, ensuring environmental compliance.
The shrouded design provides mechanical protection and ensures proper alignment during installation and operation.
It operates efficiently within a temperature range of -55°C to 125°C.
The contacts are made from copper alloy and are plated with silver and tin for reliable conductivity.
Yes, it includes tape and reel packaging, making it suitable for automated assembly processes.
It supports a board-to-board connector system, ideal for various electronic applications.
This model is designed for vertical orientation and is a surface mount type.
The country of origin for this product is India.
It is suitable for industrial, laboratory, and commercial electronic applications requiring reliable board-to-board connections.
