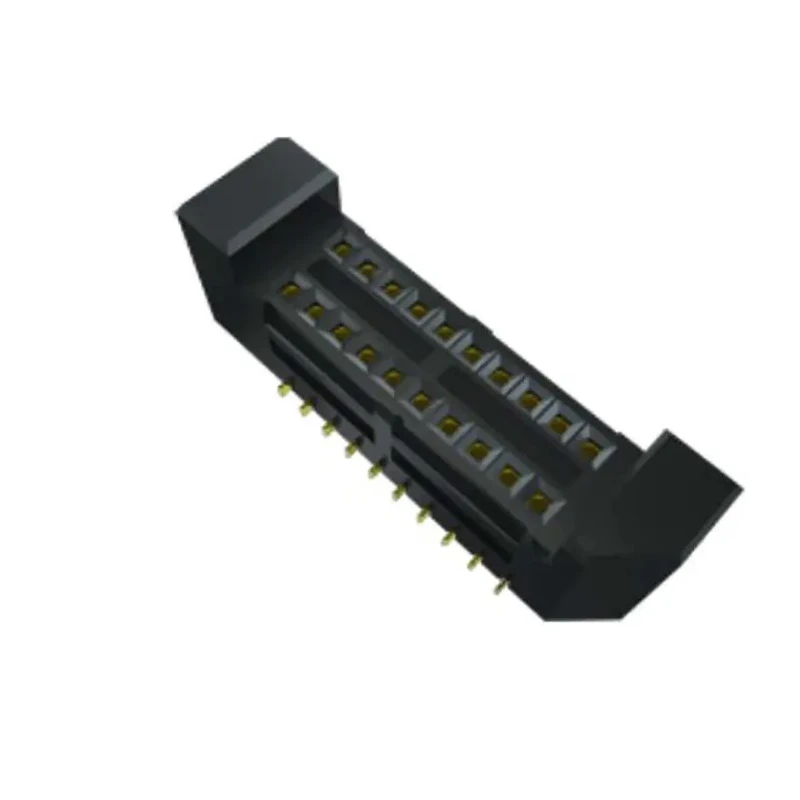

Samtec SEM Series Straight Surface PCB Socket, 20-Contact, 3 Row, 0.8 mm Pitch, 2.6A Current, 330V SEM-110-02-03.0-H-D-WT

Free Delivery in India | Lowest Global Shipping Charges

Samtec SEM Series Straight Surface PCB Socket, 20-Contact, 3 Row, 0.8 mm Pitch, 2.6A Current, 330V SEM-110-02-03.0-H-D-WT

Name: Samtec SEM Series Straight Surface PCB Socket, 20-Contact, 3 Row, 0.8 mm Pitch, 2.6A Current, 330V SEM-110-02-03.0-H-D-WT
Brand: Samtec
SKU: 108762
Price: 10.95 USD
Availability: InStock



Category PCB Sockets Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	330V
Brand	Samtec
Orientation	Straight
Current	2.6A
Model	SEM-110-02-03.0-H-D-WT
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Beryllium Copper Alloy
Series	SEM
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Micro Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board
Stacking Height	3mm
Row Pitch	3.2mm

Key Features

The connector supports a maximum current of 2.6A for reliable electrical performance.
It features a liquid crystal polymer black housing for enhanced electrical insulation.
Contacts are made of beryllium copper alloy and plated with gold for durability and corrosion resistance.
Suitable for operating temperatures from -55°C to 125°C.
The socket has a stacking height of 3 mm and a row pitch of 3.2 mm ensuring compact design.
The termination type is solder with surface mount technology orientation and straight configuration.

Product Description

Samtec SEM-110-02-03.0-H-D-WT Straight Surface PCB Socket is a precision 20-contact micro socket strip distributed across 3 rows with a pitch of 0.8 mm. Built with a black liquid crystal polymer housing, this connector combines excellent electrical insulation properties with mechanical robustness, making it ideal for high-density circuit board designs.

The contacts are constructed from beryllium copper alloy and plated with gold to ensure high conductivity, corrosion resistance, and long service life under demanding conditions. Its solder termination type is tailored for surface mount applications with a straight orientation, enabling secure and compact board-to-board connections.

Designed to operate reliably within the temperature range of -55°C to 125°C and rated for 2.6 amperes at 330 volts, this PCB socket supports multiple industrial and commercial electronic equipment applications including instrumentation, data communication devices, and embedded systems. The connector's stacking height of 3 mm and 3.2 mm row pitch contribute to space-efficient layouts in modern electronics manufacturing.

Supports 20 contact points arranged in 3 rows for efficient connectivity. Uses liquid crystal polymer housing for high insulation and mechanical strength. Gold-plated beryllium copper alloy contacts enhance conductivity and durability.

Surface mount soldering with straight orientation for precise PCB integration. Operating temperature range from -55°C to 125°C ensures reliability under varied conditions. Rated for 2.6A current and 330V voltage for versatile electronic applications.

Stacking height of 3 mm and pitch of 0.8 mm enables compact circuit design.

This Samtec SEM series socket is essential for electronics manufacturing, laboratory PCB assembly, and industrial control systems where reliable, high-quality board-to-board connections are critical. Ensure your projects leverage this robust and efficient connector solution for optimized performance and longevity.
