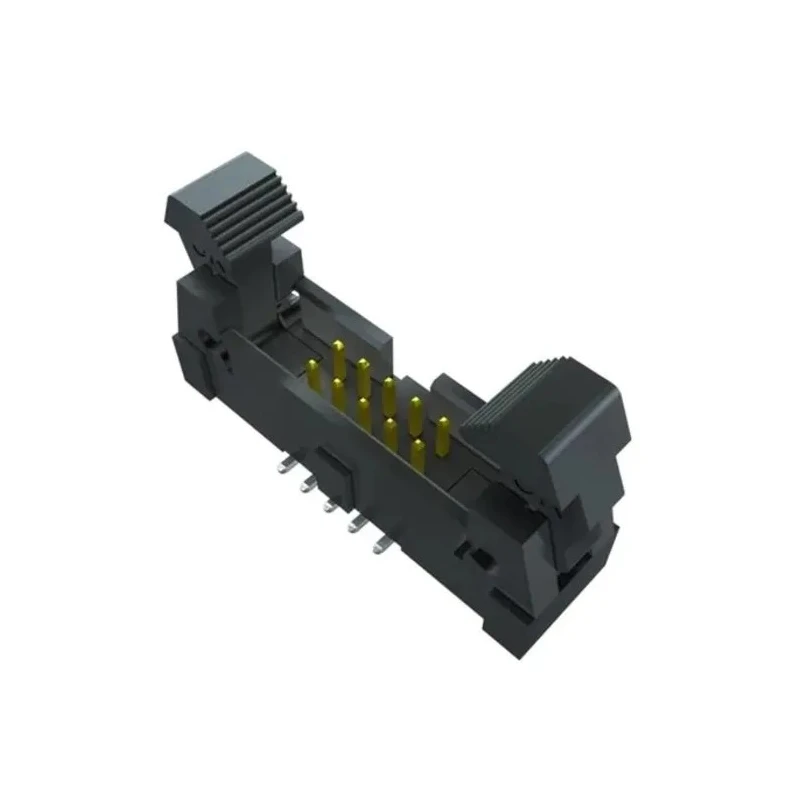

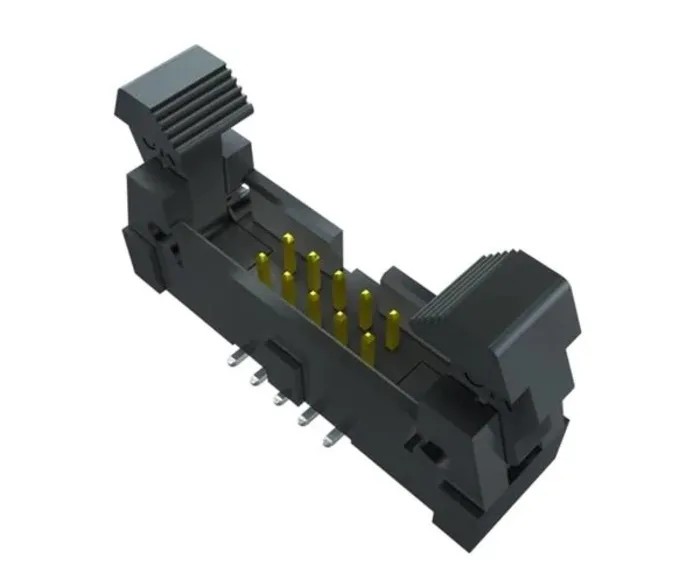

Samtec 26-Way 1.27mm Pitch Shrouded Male PCB Header Connector for Surface Mount, 2 Row EHF-113-01-L-D-SM-K-TR

Samtec EHF-113-01-L-D-SM-K-TR is a high-quality shrouded male PCB Header connector featuring 26 contacts arranged in two rows. With a pitch of 1.27mm, this connector is designed specifically for surface mount applications. The connector includes gold and tin contact plating to ensure low resistance and resistance to corrosion, enhancing signal integrity and long-term reliability.

The housing is made from Liquid Crystal Polymer, offering excellent chemical and thermal stability, suitable for industrial and commercial electronics applications. Operating temperature ranges from -55°C to 125°C, providing robustness for a variety of environments including industrial controls, telecommunications, and consumer electronics.

This connector uses an IDC termination type, which allows for quick and reliable wire insertion without the need for soldering, making installation and maintenance practical and time-efficient. The straight orientation and surface mount design optimize PCB space utilization and assembly line automation.

Typical industrial use includes electronic circuit boards, power distribution units, and data communication equipment requiring stable, durable connections. The packaging in tape and reel format supports high-volume automated placement processes.

The connector features 26 contacts arranged in 2 rows for compact and reliable PCB connections. It has a pitch spacing of 1.27mm ensuring standard compatibility with PCB layouts. The contacts are plated with light selective gold in contact areas and matte tin on the tails for enhanced conductivity and durability.

The housing is constructed from durable Liquid Crystal Polymer suitable for harsh operating conditions. The connector supports surface mount mounting type with a straight orientation for efficient PCB assembly. Operating temperature ranges from -55°C minimum to 125°C maximum, allowing use in a wide variety of environments.

Contact material is phosphor bronze, providing excellent mechanical and electrical properties. Termination is via IDC (Insulation Displacement Contact) type, simplifying cable assembly and maintenance. Packaged in tape and reel format facilitating automated PCB assembly processes.
