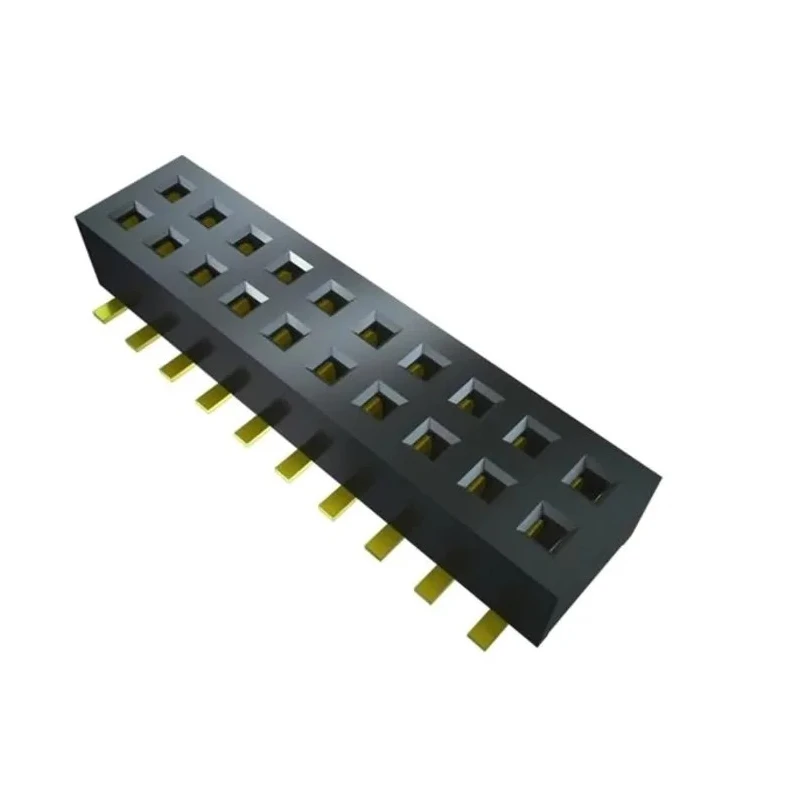

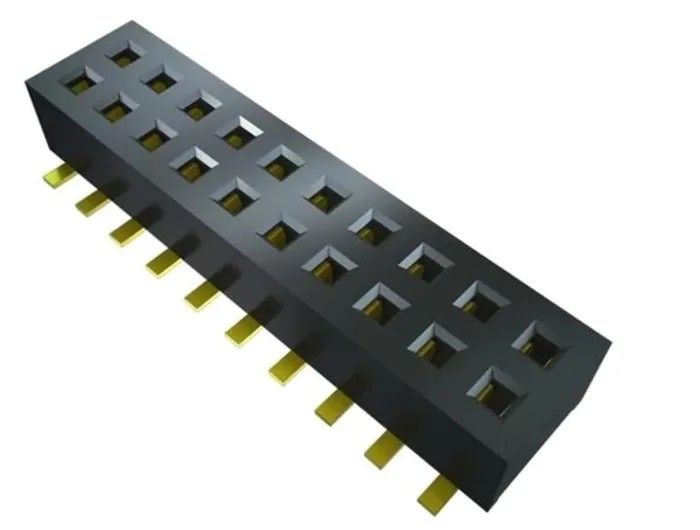

Samtec CLP Series Vertical Surface PCB Socket, 16-Contact, 2 Row, 1.27 mm Pitch, Through Hole, Dual Wipe CLP-108-02-F-D-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec CLP Series Vertical Surface PCB Socket, 16-Contact, 2 Row, 1.27 mm Pitch, Through Hole, Dual Wipe CLP-108-02-F-D-K-TR

Name: Samtec CLP Series Vertical Surface PCB Socket, 16-Contact, 2 Row, 1.27 mm Pitch, Through Hole, Dual Wipe CLP-108-02-F-D-K-TR
Brand: Samtec
SKU: 172118
Price: 3.13 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	395V
Brand	Samtec
Orientation	Vertical
Current	3.4A
Model	CLP-108-02-F-D-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	CLP
Termination Type	Through Hole
Maximum Operating Temperature	125°C
Sub Type	Dual Wipe Socket
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	16
Connector System	Board-to-Board

Key Features

The socket offers a dual wipe contact system ensuring stable electrical performance.
It features a vertical orientation surface mount style suitable for compact PCB layouts.
Constructed with liquid crystal polymer housing for durability and thermal stability.
Phosphor bronze contacts plated with gold guarantee corrosion resistance and signal integrity.
Rated for 3.4 A current and 395 V voltage handling capability.
Designed to operate in temperatures from -55°C up to 125°C.
Packaged in tape and reel format optimized for automated assembly.
Supports industrial and electronic applications requiring reliable PCB socket connectivity.

Product Description

Samtec CLP-108-02-F-D-K-TR is a high-quality vertical surface PCB socket featuring 16 contacts arranged in 2 rows with a 1.27 mm pitch. This dual wipe socket has a through hole termination type designed for secure board-to-board connections in electronics manufacturing.

The housing is made from liquid crystal polymer, ensuring excellent mechanical strength and resistance to heat and chemicals. Contacts are fabricated from phosphor bronze and plated with selective flash gold for dependable conductivity and corrosion resistance. The socket supports a current rating of 3.4 A and voltage rating of up to 395 V, with operational temperature range from -55°C to 125°C, making it suitable for demanding industrial and electronic environments.

Its vertical orientation and surface mount termination accommodate compact PCB design and ease of assembly. Tape and reel packaging facilitates automated pick-and-place processes, contributing to manufacturing efficiency.

Credits to the CLP series, this socket offers a dual wipe contact system that enhances electrical reliability by maintaining consistent contact pressure and minimizing resistance. The socket offers a dual wipe contact system ensuring stable electrical performance.

It features a vertical orientation surface mount style suitable for compact PCB layouts. Constructed with liquid crystal polymer housing for durability and thermal stability. Phosphor bronze contacts plated with gold guarantee corrosion resistance and signal integrity.

Rated for 3.4 A current and 395 V voltage handling capability. Designed to operate in temperatures from -55°C up to 125°C. Packaged in tape and reel format optimized for automated assembly. Supports industrial and electronic applications requiring reliable PCB socket connectivity.

This product is ideal for use in industrial tools, electronic components, power connectors, and applications requiring robust PCB interconnection solutions. It delivers consistent performance in harsh environments, ensuring long-term reliability.
