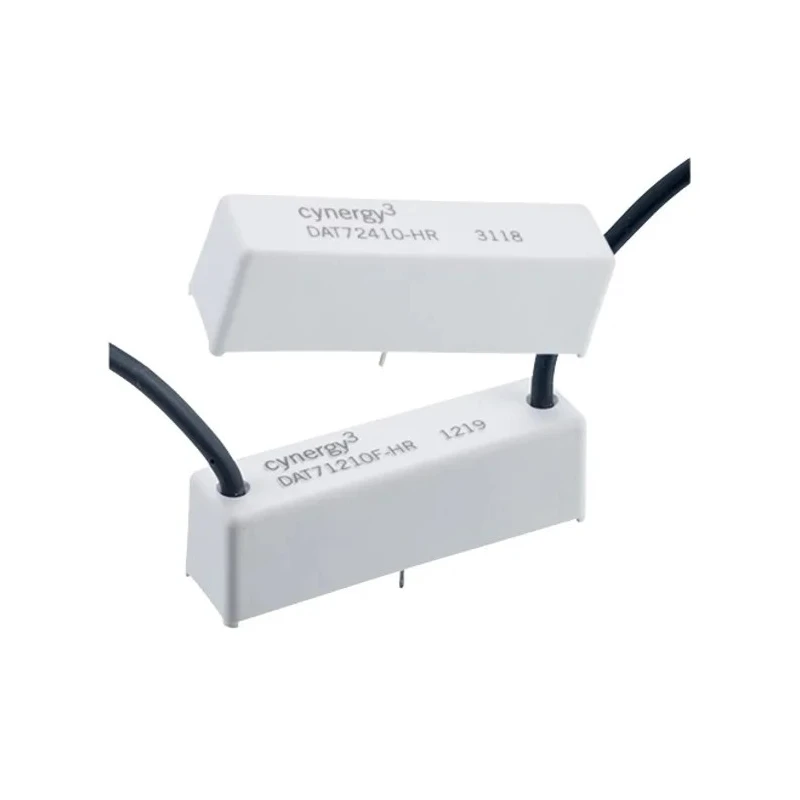

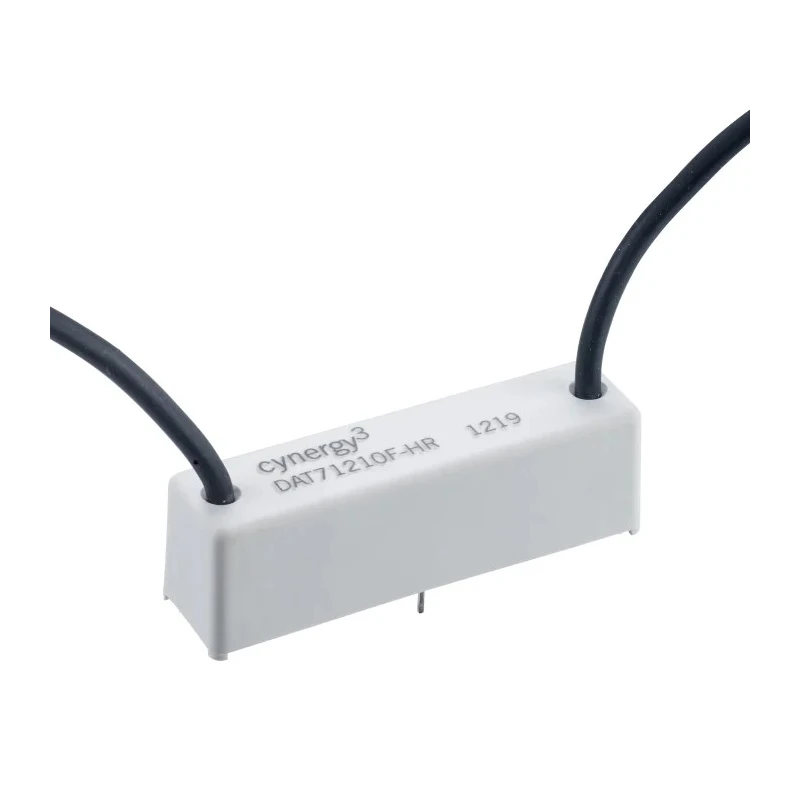

Cynergy3 PCB Reed Relay SPST, 24V DC Coil Voltage, 50W Coil Power, 780Ω Coil Resistance, 7000V DC Isolation, 2A Max Current

Cynergy3 DAT72410F-HR/RS PCB Reed Relay SPST 24V DC Coil Voltage, 50W coil power, and 780Ω coil resistance is an advanced relay designed for precise and reliable signal switching in industrial, laboratory, and automation applications. This component provides a maximum coil-to-contact isolation voltage of 17kV, supporting high-voltage environments safely.

The SPST (single-pole single-throw) contact configuration allows simple and effective circuit integration, with the contacts normally open until activated. Its tungsten contact material ensures excellent resistance to heat and wear, resulting in a consistently low contact resistance of 250mΩ for high-quality signal transmission.

Compact with a length of 60mm, height of 18.5mm, and depth of approximately 15.8mm, this relay is designed specifically for PCB mounting, maximizing space efficiency on printed circuit boards.

Operating efficiently within a temperature range from -20°C to 70°C, it is suitable for use in varying environmental conditions from cold to hot. The relay supports switching power up to 50W and handles maximum currents up to 2A, making it appropriate for signal conditioning and automation control systems.

With a rapid operating time of 3 milliseconds, it provides fast and accurate response times necessary for high-speed electronic applications. It is UL certified, validating its safety and quality standards compliance, and offers a robust operational lifespan capable of 1 billion dry switching cycles, ensuring dependable long-term use.

Commonly used in medical equipment, instrumentation, industrial machinery, and other electronics requiring precise and durable switching components, this Cynergy3 PCB Reed Relay is an ideal choice for demanding signal relay applications.

This Reed Relay features a single-pole single-throw (SPST) contact configuration for easy wiring. It offers a maximum coil-to-contact isolation voltage of 17kV for reliable operation. The relay operates within a temperature range from -20°C to +70°C for diverse environmental conditions.

It delivers a maximum switching power of 50W and a maximum current rating of 2A. Compact dimensions of 60mm length, 18.5mm height, and 15.8mm depth make it suitable for PCB mounting. The tungsten contacts provide low contact resistance of 250mΩ, ensuring efficient signal transmission.

Operating time is rapid at 3ms for quick response to signals. Certified with UL standards, ensuring product reliability and safety. The relay is designed for long-lasting performance with a lifespan of 1 billion dry switching operations.
