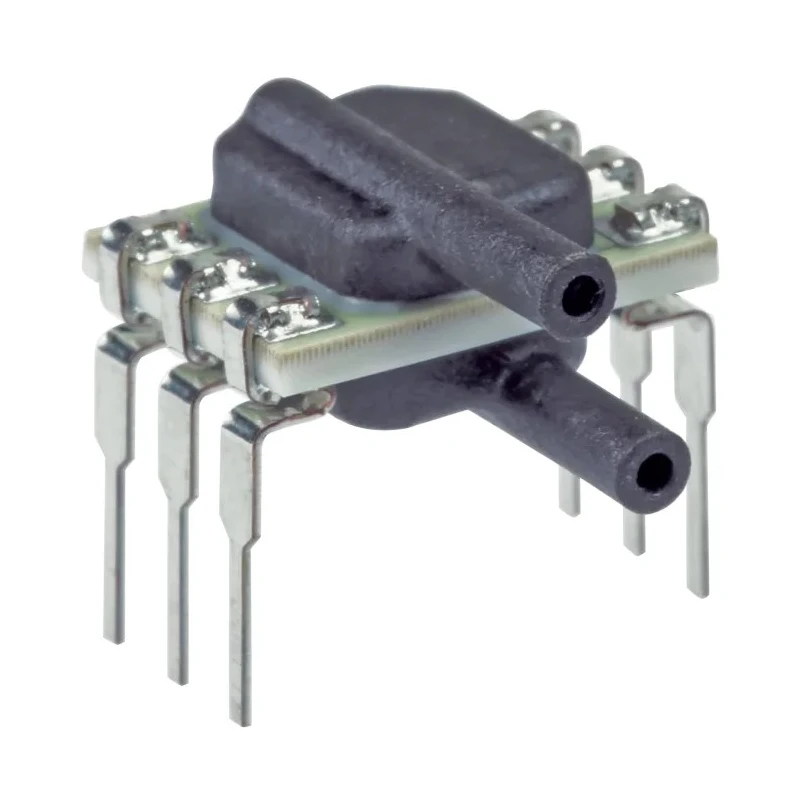

Honeywell Technologies Piezoresistive Pressure Sensor Board DIP 6 Pin 60 kPa ±0.25% Accuracy ABPDRRV600MGSA3

Honeywell Technologies ABPDRRV600MGSA3 is a piezoresistive pressure sensor board featuring a DIP package with 6 pins. It offers precise pressure measurement capabilities up to 60 kPa maximum operating pressure and an accuracy of ±0.25% within an operating temperature range of -40°C to +85°C. This sensor supports both ratiometric analogue and 12-bit digital outputs, compatible with I2C or SPI protocols, providing rapid calibrated readings suitable for industrial, medical, HVAC, and commercial applications.

Equipped with dual radial barbed ports, the sensor allows wet/wet differential pressure sensing, beneficial for systems requiring non-corrosive liquid or dry-gas media compatibility. On-board signal conditioning and temperature compensation enhance measurement fidelity, while the 2 kHz digital and 1 kHz analogue update rates enable fast sampling for responsive control systems.

This device operates on a single low-voltage supply up to 5V, facilitating simple integration into PCB designs. The ABP series sensor is manufactured under ISO 9001 standards, ensuring quality and reliability. The sensor is suitable for varied applications including CPAP and ventilator monitoring, pneumatic control, valve position feedback, blood analysis equipment, HVAC transmitters, process gas monitoring, and commercial appliances such as coffee makers.

Certifications including BPA-free, LFGB, and NSF-169 confirm its suitability for food-contact use, expanding its application range into sensitive environments. The compact dimensions (7.3 mm length, 6.3 mm width, 3.63 mm height) and DIP mount make it straightforward to implement within electronic assemblies.

Offers ratiometric analogue and 12-bit digital output for pressure measurement. Operates within -40°C to +85°C temperature range for wide application use. Dual radial barbed ports allow wet/wet differential sensing with appropriate media.

On-board temperature compensation and signal conditioning provide calibrated outputs. Certified for food-contact safety with BPA-free, LFGB, and NSF-169 approvals. Manufactured under ISO 9001 standard ensuring manufacturing quality.

Compact DIP package enables easy PCB mounting and integration. Suitable for industrial, medical, HVAC, and commercial appliance uses. Explore the extensive range of Pressure Sensor ICs and sensors at EnvMart for reliable industrial and laboratory measurement solutions.
