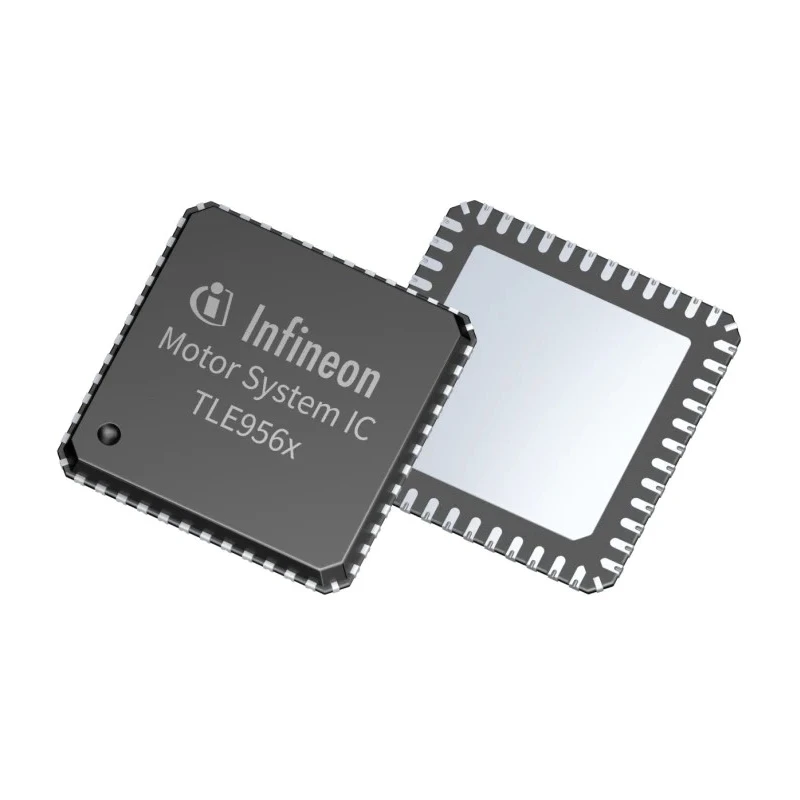

Infineon CAN Caps 5 Mbps 48-Pin VQFN TLE95613QXXUMA1

Infineon's TLE95613QXXUMA1 CAN Caps is a multifunctional system IC designed for advanced automotive motor control systems. Packaged in a robust 48-pin exposed pad PG-VQFN package, it integrates a high-speed CAN FD transceiver supporting data rates up to 5 Mbps compliant with ISO 11898-2 protocols.

This IC uniquely combines power supply management, three half-bridge drivers tailored for BLDC motor control, a precision current sense amplifier, and a 32-bit serial peripheral interface (SPI), all integrated to optimize motor control and communication efficiency in automotive applications.

The device supports power-saving modes including Stop and Sleep modes with very low quiescent current to reduce energy consumption during idle periods. It provides periodic cyclic sense and cyclic wake functionalities in all operation modes enhancing system responsiveness.

Incorporated features like reset, interrupt outputs, and drain-source monitoring enable precise fault detection and response. The device also includes open-load detection and configurable watchdog timers for safety and reliability. Comprehensive protection mechanisms safeguard against over-temperature conditions and short circuits.

The TLE95613QXXUMA1 is certified to stringent automotive standards AEC-Q101 and AEC-Q100, ensuring performance and reliability under challenging automotive environment conditions, operating from -40°C up to 150°C. Its wide supply voltage range from 4.75V to 28V and 250 mA supply current make it suited for diverse automotive applications.

Common industrial and automotive use cases include BLDC motor control for electric power steering, window lifts, and other electronically controlled actuators. It also serves in powertrain and body electronics requiring robust CAN communication and motor drive functionalities.

This Infineon system IC integrates multiple motor control and communication features in a compact VQFN package, providing a high-performance solution for automotive electronic control units demanding high data rates and robust operation.

Explore more semiconductor solutions and CAN interfaces at EnvMart to enhance your automotive electronics designs with reliable, industry-standard components. The device integrates a high-speed CAN FD transceiver compliant with ISO 11898-2 standard.

Features a multifunctional system IC with embedded power supply and communication interfaces for automotive environments. Includes three half-bridges for BLDC motor control, current sense amplifier, and SPI interface. Operates over a wide supply voltage range from 4.75V to 28V with low quiescent current consumption.

Supports power-down modes including Stop and Sleep with wake-up and cyclic sensing capabilities. Built-in diagnostics like open-load detection, reset and interrupt outputs enhance reliability. Protection features include over-temperature and short circuit safeguards for automotive usage.

Rated for extended temperature range from -40°C to 150°C and compliant with AEC-Q101 and AEC-Q100 standards.
