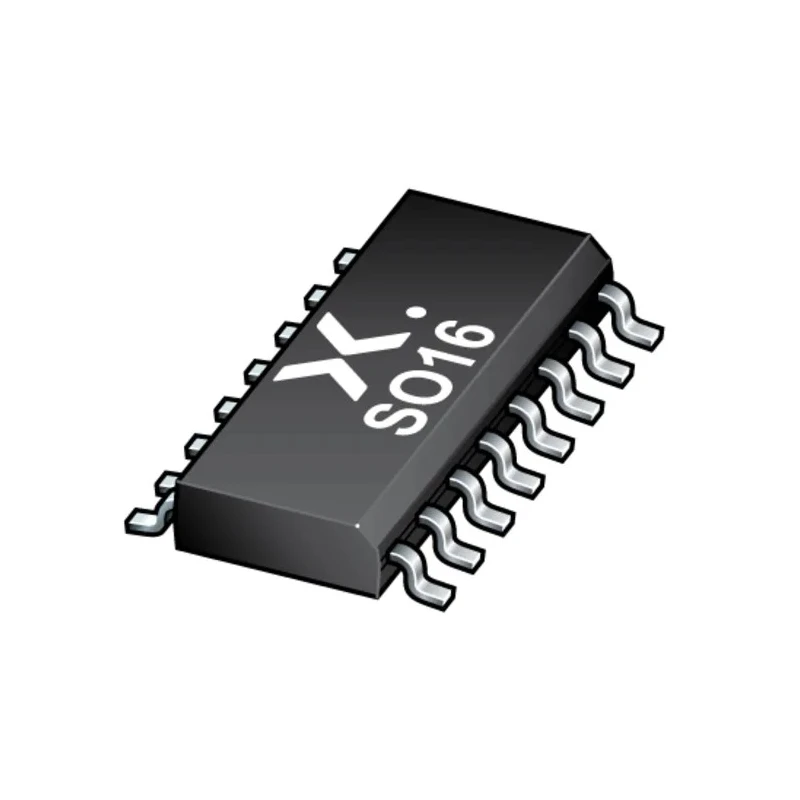

Nexperia HEF4060B Ripple Carry Binary Counter, Surface Mount, 15V, 30 MHz, Asynchronous Master Reset

Nexperia HEF4060B ripple carry binary counter is a 14-stage binary counter and oscillator IC designed for surface mount applications. With a maximum supply voltage of 15V and maximum count frequency of 30 MHz, it operates reliably within temperature ranges from -40°C to 85°C. Its asynchronous master reset enables fast resetting without clock dependency, making it highly effective in digital circuits requiring precise counting and timing.

This uni-directional ripple carry binary counter supports slow clock rise and fall times and operates fully statically, which enhances robustness and versatility. The compact 3.9mm cutout width allows for efficient PCB integration, suitable for electronic components, semiconductor devices, and logic IC use cases.

Applications include industrial digital counters, frequency division, and timing generation in electronics manufacturing, laboratory instrumentation, and embedded systems. The Nexperia HEF4060B is ideal for design engineers needing a stable, surface-mount binary counter with oscillator functionality.

The counter features ripple carry binary mode for consistent counting behavior. Asynchronous master reset allows immediate resetting of the count. Uni-directional counting ensures straightforward binary output progression.

Wide operating temperature range enables use in various environments. Surface mount design supports automated assembly and compact PCB designs. Operates up to 30 MHz frequency with a supply voltage of 15V maximum. Maintains full static operation tolerating slow clock transitions.

Compact cutout width of 3.9mm integrates easily into constrained layouts.
