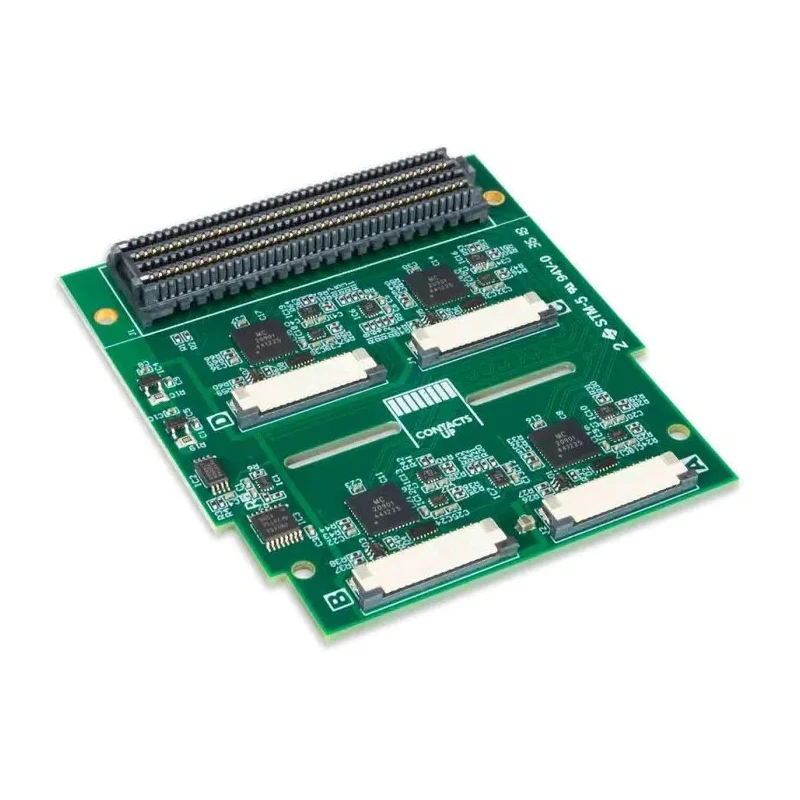

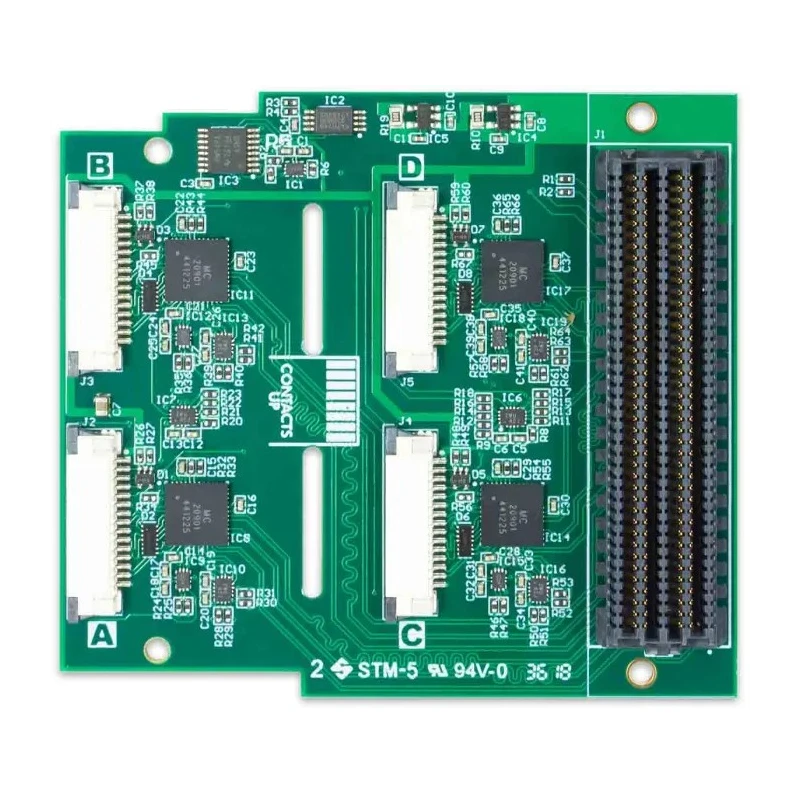

Digilent Development Kit Accessory Adapter for Use with APSoC Development Board FPGA 410-372

Digilent 410-372 Development Kit Accessory Adapter is designed for use with APSoC Development Board FPGA to facilitate cost-effective integration of camera modules via a high-speed FMC connector.

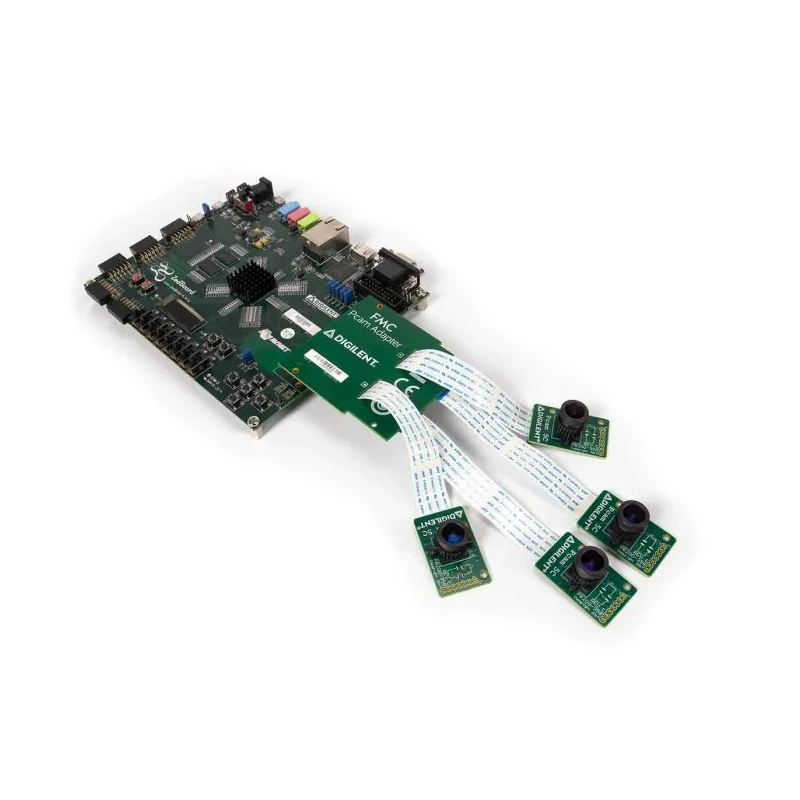

This adapter allows connection of low-cost FMC Pcam CSI-2 interface camera modules, enabling the development of multi-camera systems for complex video processing tasks.

Key onboard features include level shifters translating MIPI-FPHY signal levels to LVDS and LVCCMOS, supporting voltage adaptability between 1.8 V and 3.3 V, making it versatile for various APSoC FPGA setups.

This product is well suited for advanced applications such as video content analysis, development of high-speed video engines, intelligent vision solutions, and embedded vision processing in industrial automation, research, and development.

It is recommended to verify compatibility with the host board's FMC specifications to ensure optimal system performance, especially given the clocking sensitivity inherent to video processing solutions.

This adapter supports FMC Pcam (CSI-2 interface) connection for camera integration. Includes onboard translators from MIPI-FPHY to LVDS and LVCCMOS for signal compatibility. Voltage compatible with VADJ adjustable from 1.8 V to 3.3 V.

Facilitates development of real-time video processing and intelligent embedded vision applications. Enables multi-camera system designs on high-speed FPGA development boards.

For comprehensive details, please refer to the FMC-Pcam Adapter Reference Manual. This accessory is a valuable addition to development tools used in laboratory, industrial, and educational settings focused on FPGA-based video and vision system development.
