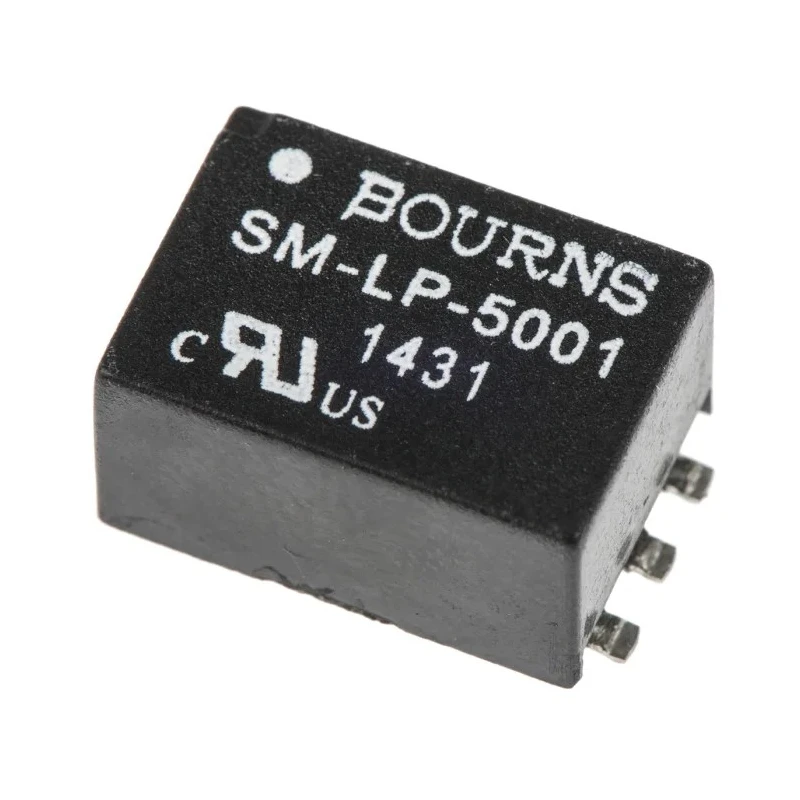

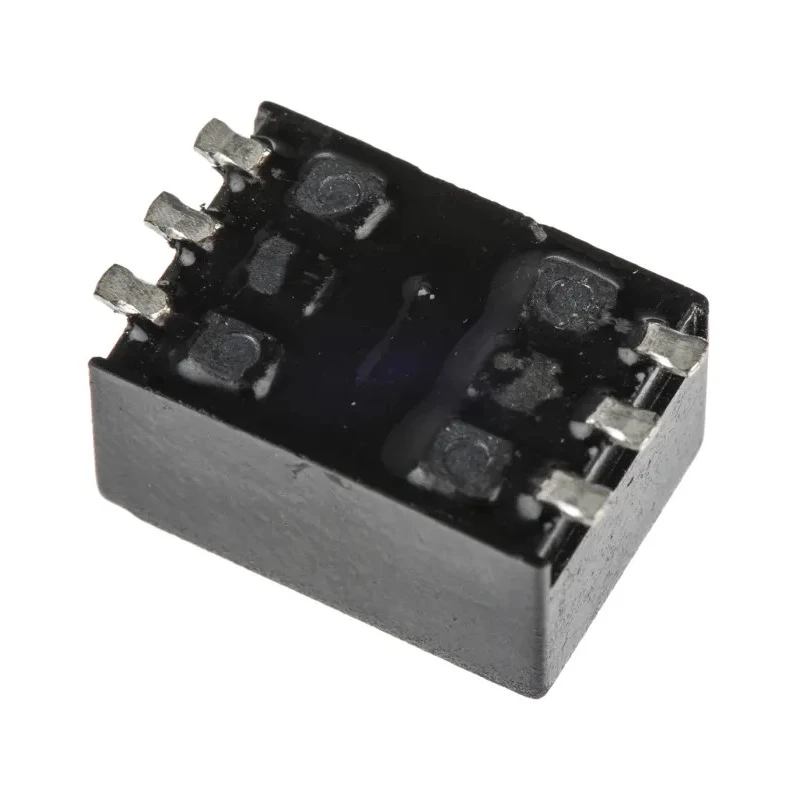

Bourns Surface Pulse Transformer 1:1 Turns Ratio, 3.8h Primary Inductance, 115Ω Primary Resistance SM-LP-5001
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Length | 9.6mm |
| Model | SM-LP-5001 |
| Depth | 14mm |
| Width | 7.36mm |
| Mount Type | Surface |
| Series | SM-LP-5001 |
| Termination Type | AgSn-Plated Terminal |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | UL60950 Certified, RoHS |
| Number of Pins | 6 |
| Insertion Loss | 2dB |
| Minimum Operating Frequency | 0.2kHz |
| Maximum Operating Frequency | 4kHz |
| Primary Inductance | 3.8h |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
| Primary DC Resistance | 115Ω |
| Leakage Inductance | 6mH |
| Bourns Surface Pulse Transformer 1 | 1 Turns Ratio, 3.8 h Prim. Inductance, 115Ω Prim. Resistance |
Key Features
- Low insertion loss of 2dB for efficient signal transmission.
- Surface mount type with AgSn-plated terminals for reliable connections.
- Leakage inductance of 6mH enhances performance stability.
- Operates within temperature range of -20°C to 85°C suitable for diverse environments.
- 6 pins for secure mounting and electrical contacts.
- Certified UL60950 and RoHS compliant ensuring safety and environmental standards.
- Maximum operating frequency is 4kHz, supporting a range of electronic devices.
- Vacuum encapsulated design minimizes distortion down to 0.015% for signal integrity.
Product Description
Bourns SM-LP-5001 Surface Pulse Transformer features a 1:1 turns ratio with a primary inductance of 3.8 h and a primary resistance of 115Ω. This surface mount Pulse Transformer is designed for precise line matching and high fidelity signal transmission in electronic circuits.
The SM-LP-5001 offers a low insertion loss of 2 dB which enhances signal quality across the operating range. It incorporates AgSn-plated terminal terminations ensuring robust and corrosion-resistant contact points, making it ideal for industrial and commercial electronic components.

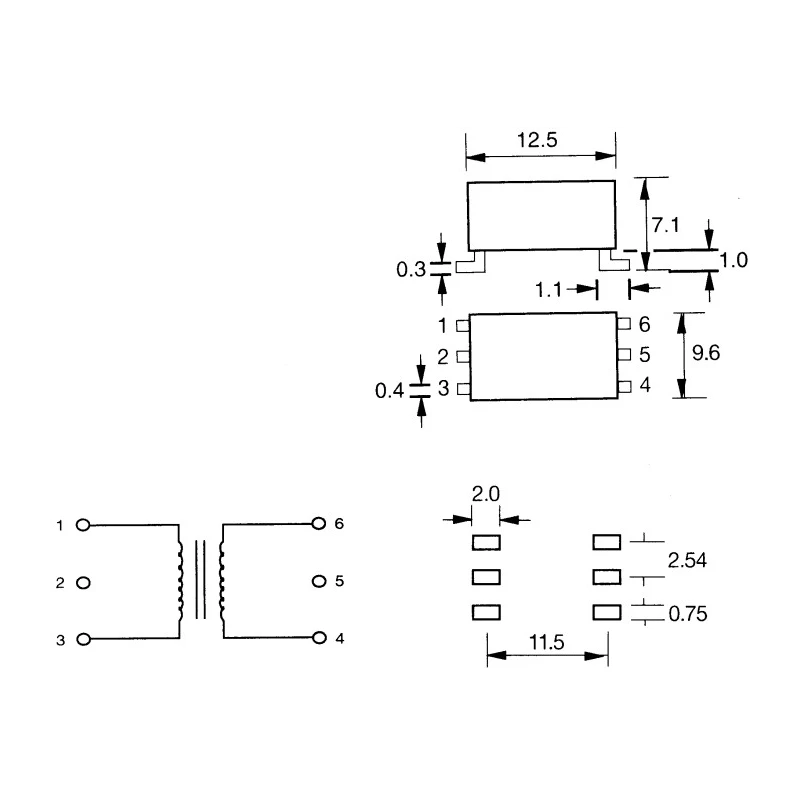

Compact with dimensions of 9.6mm length, 7.36mm width, and 14mm depth, this transformer has a 6-pin configuration facilitating easy PCB surface mounting. It operates reliably across a temperature range from -20°C up to 85°C and supports a maximum operating frequency of 4kHz, making it versatile for a range of applications.
The vacuum encapsulated design achieves a distortion level of only 0.015% and provides a dielectric strength of 2000 Vrms with a 1-minute withstand test, ensuring durable isolation and signal integrity in demanding environments. Its leakage inductance is specified at 6mH which contributes to its stable electrical characteristics.
This transformer is UL60950 certified and RoHS compliant, confirming adherence to safety and environmental standards. Common uses include instrumentation, telecommunications equipment, laptops, and modems supporting V32 protocol, where precise signal matching and low distortion are critical.
Low insertion loss of 2 dB for efficient signal transmission. Surface mount packaging for space-saving PCB designs. Wide operating temperature range from -20°C to 85°C. High isolation voltage withstand of 2000 Vrms. Vacuum encapsulated for enhanced durability and signal integrity.
AgSn-plated terminals resist corrosion and improve connection reliability. Minimal distortion of 0.015% for high fidelity electronic applications. Compact size and 6-pin configuration support versatile mounting. UL60950 certified and RoHS compliant ensuring safety and eco-friendly manufacture.
Ideal for instrumentation, telecommunications, laptop, and modem applications. Explore more transformers and electronic components suitable for precision industrial and commercial electronics applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary inductance of this model is 3.8 henries (h).
It supports a maximum operating frequency of 4 kHz.
This transformer has dimensions of 9.6 mm in length, 7.36 mm in width, and 14 mm in depth.
The insertion loss is 2 dB, which contributes to efficient signal transmission.
The turns ratio of the SM-LP-5001 is 1:1.
The primary DC resistance is 115 ohms (Ω).
It features AgSn-plated terminals for reliable connections.
It operates within a temperature range of -20°C to 85°C.
This transformer has a 6-pin configuration for secure mounting and electrical contacts.
The leakage inductance is specified at 6 mH.
It is UL60950 certified and RoHS compliant, ensuring safety and environmental standards.
Common applications include instrumentation, telecommunications equipment, laptops, and modems supporting V32 protocol.
