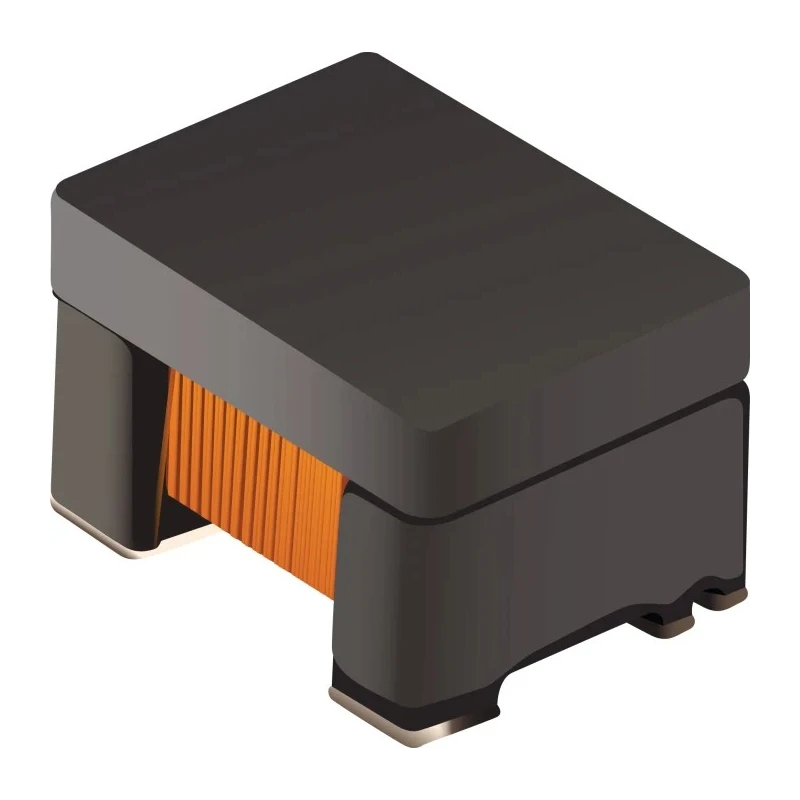

Bourns Surface Mount LAN Ethernet Transformer, 1 Output, 10G Base-T, -40°C to 85°C, 2.9 mm Depth SM453230-121N7YP

Name: Bourns Surface Mount LAN Ethernet Transformer, 1 Output, 10G Base-T, -40°C to 85°C, 2.9 mm Depth SM453230-121N7YP
Brand: BOURNS
SKU: 175800
Price: 1.2 USD
Availability: InStock



Category LAN Ethernet Transformer Brand BOURNS Condition New

Specifications

Country of Origin	Taiwan
Brand	Bourns
Model	SM453230-121N7YP
Depth	2.9mm
Mount Type	Surface
Series	SM453230-121N7YP
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Interfaces	Ethernet compatible
Number of outputs	1
Standards/Approvals	RoHS
Insertion Loss	-2dB
Turns Ratio	1:1± 3 %
Turns Ratio1	1± 3 %
Supported Ethernet Standards	10G Base-T

Key Features

Insertion loss is maintained at -2dB to ensure minimal signal attenuation.
Surface mount type enables flexible and compact PCB layout integration.
Supports PoE+ capability and is compatible with IEEE 802.3 Ethernet standards.
Constructed as a discrete chip-LAN transformer with integrated common mode chip inductor for EMI suppression.
Halogen-free and RoHS compliant for environmental safety.
Operates reliably in an expanded temperature range between -40°C and +85°C.
Manufactured in Taiwan, Province Of China ensuring quality and origin transparency.

Product Description

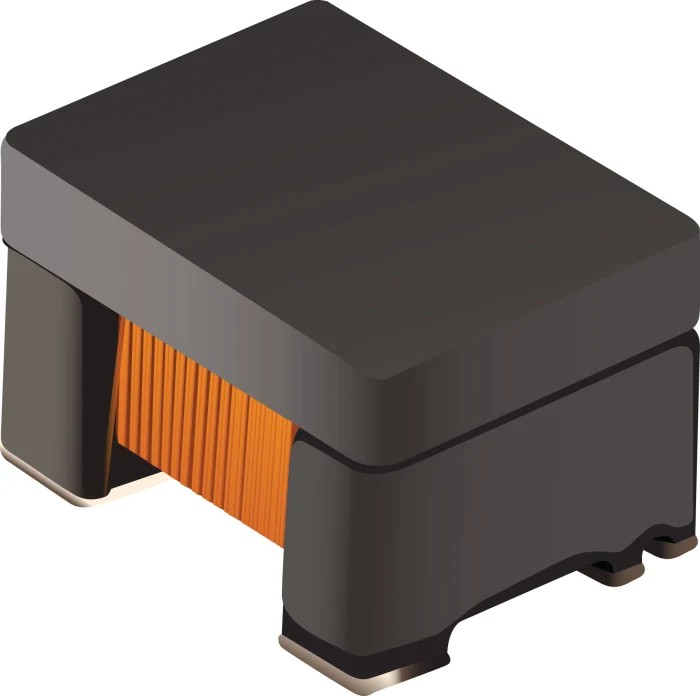

Bourns SM453230-121N7YP Surface Mount LAN Ethernet Transformer is a high-performance component engineered for 10 Gb Ethernet and PoE+ applications. The transformer features a surface mount design with a compact depth of 2.9 mm, suitable for modern PCB layouts requiring minimal footprint.

This device provides a single output with a turns ratio of 1:1±3%, enabling accurate signal transformation while maintaining insertion loss at approximately -2 dB to minimize signal degradation. The discrete chip-LAN transformer design employs a drum core wound component capped with a ferrite plate, emulating toroidal core performance with improved EMI suppression via a paired common mode chip inductor.

The transformer supports IEEE 802.3 Ethernet standards and is fully compatible with 10G Base-T technology, making it ideal for high-speed network applications. Additionally, it is PoE+ capable and halogen free, aligning with environmental compliance regulations like RoHS.

Operating reliably across a wide temperature range from -40°C to 85°C, this transformer is suitable for demanding industrial, telecommunications, and data communication environments. Its Taiwan, Province Of China origin assures adherence to quality standards.

Single output with 1:1±3% turns ratio ensures signal fidelity. Maintains low insertion loss of -2 dB for optimal performance. Surface mount style facilitates efficient PCB integration. Discrete chip-LAN transformer with EMI suppression chip inductor.

Compatible with IEEE 802.3 standards and 10G Base-T networks. PoE+ capable and halogen free, compliant with environmental standards. Wide operating temperature range from -40°C to 85°C ensures versatility. Manufactured in Taiwan, Province Of China ensuring quality production.

This Bourns LAN Ethernet Transformer is ideally suited for industrial electronics, telecommunications equipment, network infrastructure, and other applications where robust, high-speed Ethernet connectivity is required. It offers engineers a reliable, compact, and efficient solution integrating LAN interfaces in demanding environments.
