| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 55°C to +125°C |
| Height | 0.8mm |
| Length | 1.6mm |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-MK |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 120nH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Maximum DC Current | 300mA |
| Maximum DC Resistance | 1200mΩ |
| Inductance Tolerance | 5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 500MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |

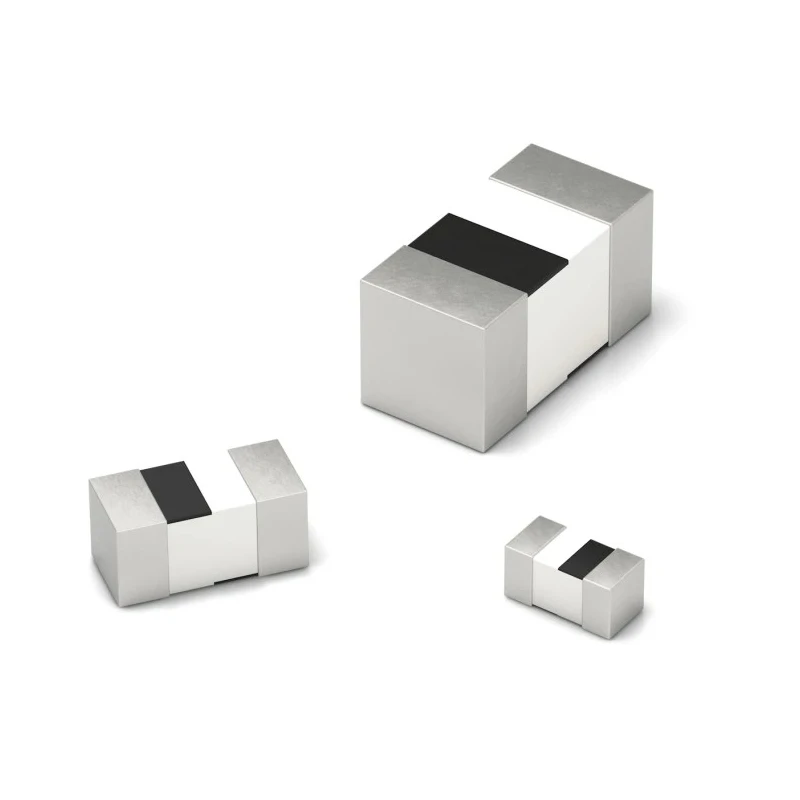

Wurth Elektronik 7447860212 is an unshielded multilayer surface mount inductor featuring a ceramic core with an inductance of 120 nH and 5% tolerance. It is specially designed for high frequency applications such as Bluetooth and wireless LAN communications, providing stable inductance performance across a wide temperature range from -55°C to +125°C.
The inductor is constructed using a multilayer ceramic structure, ensuring mechanical robustness and electrical consistency. Its compact size of 1.6 mm length, 0.8 mm depth, and 0.8 mm height allows for efficient utilization on densely packed PCBs. With a maximum DC current rating of 300 mA and a maximum DC resistance of 1200 mΩ, it balances performance and power efficiency effectively.
This component complies with the automotive standard AEC-Q200, making it suitable for automotive electronics requiring rigorous quality and reliability. Additionally, the inductor achieves a high self-resonant frequency of 500 MHz, making it ideal for sophisticated RF circuits.
Designed for high frequency and wireless applications including Bluetooth and WLAN. Multilayer ceramic core construction for durability and performance stability. Compact surface mount dimensions for space-saving on PCBs.
5% inductance tolerance ensures precise circuit behavior. Operating temperature range from -55°C to 125°C supports diverse environments. AEC-Q200 qualified for automotive and industrial reliability. High self-resonant frequency up to 500 MHz for advanced RF applications.
Low DC resistance minimizing energy loss and heat generation.
This inductor is extensively used in electronic components manufacturing, automotive electronics, telecommunications, and wireless communication systems. Its quality and compliance with international standards such as RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 guarantee environmentally responsible and reliable performance.
