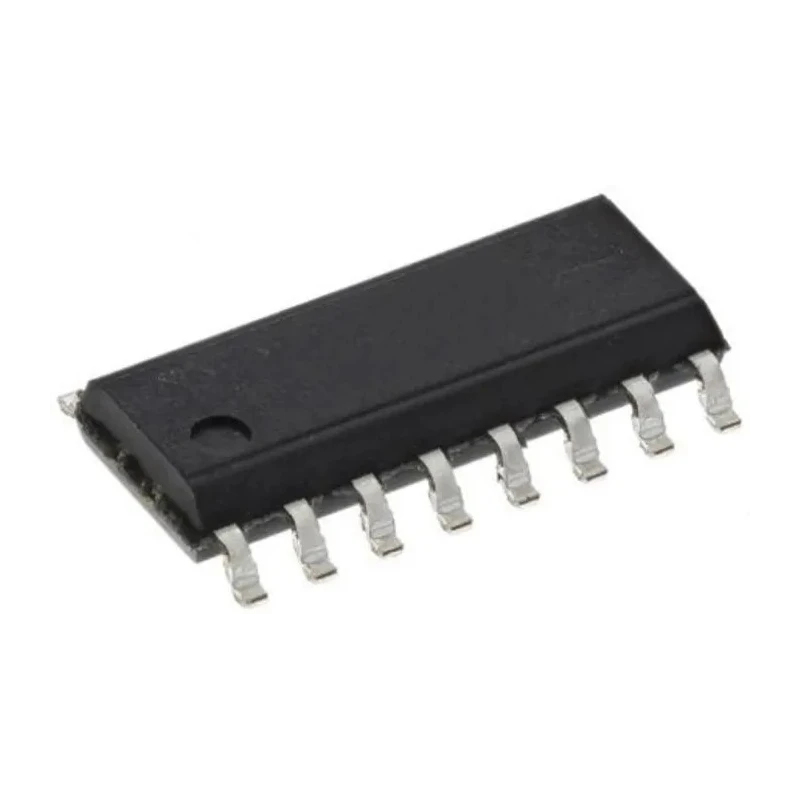

Renesas Electronics High-Speed CMOS TTL-Compatible Dual 4:1 Bus Switch, 16-Pin QSOP QS3253QG

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics High-Speed CMOS TTL-Compatible Dual 4:1 Bus Switch, 16-Pin QSOP QS3253QG

Name: Renesas Electronics High-Speed CMOS TTL-Compatible Dual 4:1 Bus Switch, 16-Pin QSOP QS3253QG
Brand: Renesas Electronics
SKU: 170218
Price: 0.59 USD
Availability: InStock



Category Electronic Components Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1.47mm
Length	8.7mm
Model	QS3253QG
Mount Type	Surface
Series	QS3253
Configuration	2 x 4:1
Maximum Operating Temperature	85°C
Package Type	QSOP
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	16
Number of Elements per Chip	20
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Minimum Supply Voltage	2.3V
Maximum Propagation Delay Time @ CL	0.25ns
Maximum Quiescent Current	3μA
Maximum On State Resistance	15Ω
Configuration2 x 4	1
Renesas Electronics QS3253QG, Bus Switch, 2 x 4	1, 16-Pin QSOP

Key Features

High-speed CMOS TTL-compatible logic family for reliable performance.
Low ON resistance of 15 ohms allows direct input-output connection without delay.
Operates within a wide temperature range of -40°C to 85°C.
Maximum quiescent current is only 3 microamperes, ensuring low power consumption.
Supports supply voltage range from 2.3V to 3.6V suitable for various electronic applications.
Zero propagation delay and zero ground bounce for noise-free switching.
Available in 16-pin QSOP surface mount package for compact PCB designs.
Includes undershoot clamp diodes on all switch and control inputs for signal integrity.

Product Description

Renesas Electronics QS3253QG is a high-speed CMOS TTL-compatible dual 4:1 multiplexer/demultiplexer designed for efficient bus switching in electronic systems. It comes housed in a compact 16-pin QSOP surface mount package measuring 8.7mm length and 1.47mm height, suitable for dense PCB layouts.

This bus switch provides bidirectional 5 ohm N-channel FET switches without any inherent diode to Vcc, allowing direct connections between inputs and outputs without introducing propagation delays or ground bounce noise, essential for high-integrity signal routing in industrial, communication, and computing applications.

The device operates over an extended temperature range from -40°C to +85°C, making it ideal for use in demanding environments. It features a low maximum quiescent current of 3μA and supports a supply voltage range from 2.3V to 3.6V, offering low power operation and compatibility with a broad range of digital logic systems.

Zero propagation delay ensures that signals pass through instantly, improving timing in timing-critical systems. The bus switch includes undershoot clamp diodes on all switch and control pins to protect against voltage undershoot, enhancing device reliability.

The QS3253QG is functionally and pin compatible with the 74F253, 74FCT253, and 74ALS/AS/LS253 dual 4:1 multiplexers, facilitating easy integration and replacement in existing designs. This device conforms to RoHS environmental standards for material safety.

High-speed CMOS TTL-compatible logic family. Dual 4:1 multiplexer/demultiplexer configuration. Surface mount QSOP 16-pin package. Low ON resistance of 15 ohms. Wide operating voltage range: 2.3V - 3.6V. Zero propagation delay and ground bounce noise free.

Operating temperature range from -40°C to 85°C. RoHS compliant. This bus switch is suited for industrial, computing, communication, and electronic equipment applications requiring fast and noise-free signal multiplexing and demultiplexing.
