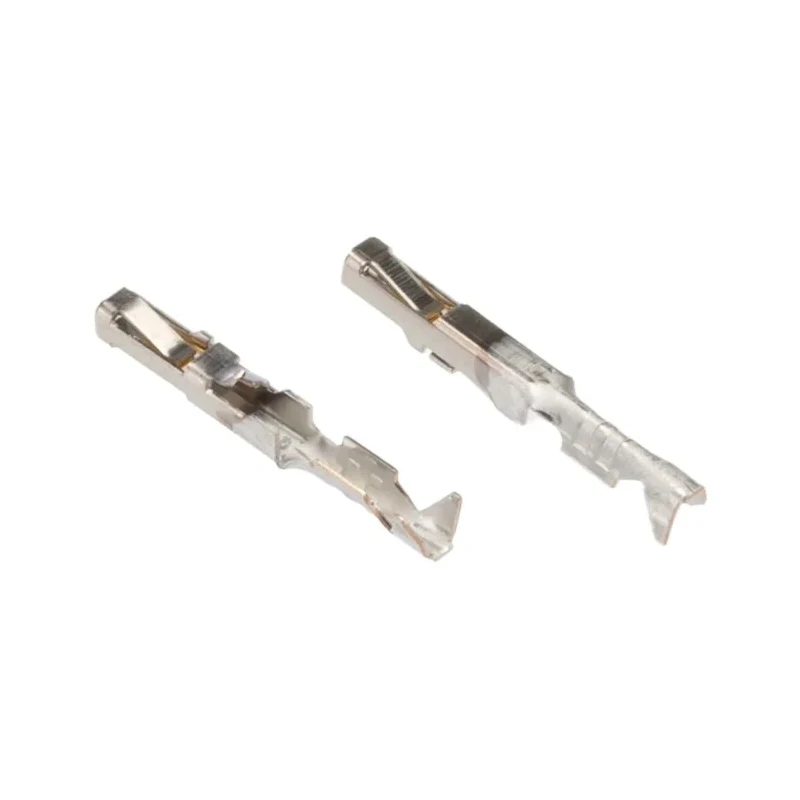

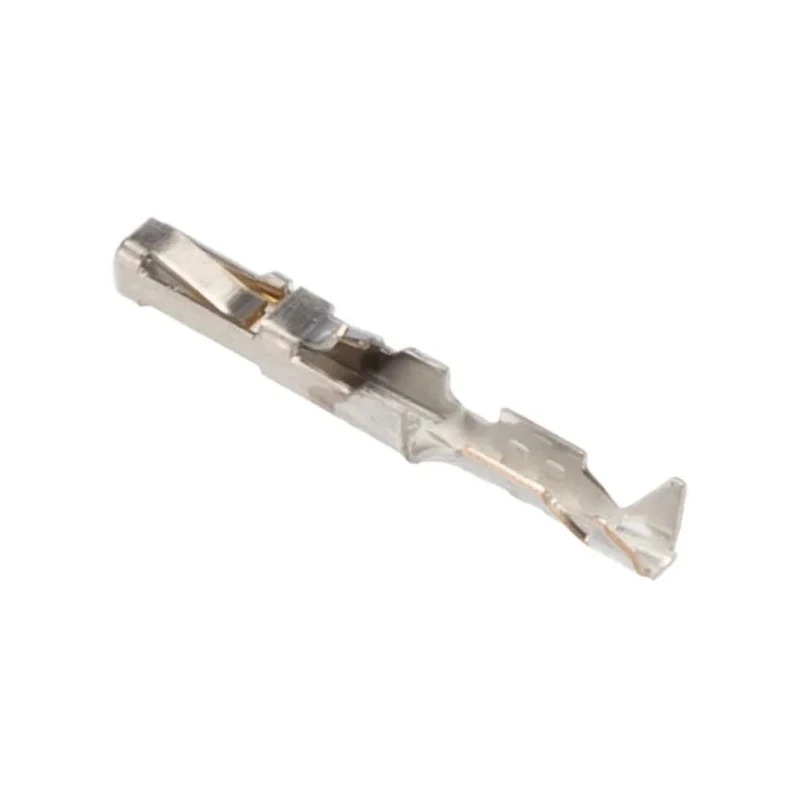

Molex 90119 Series Female Crimp Terminal, 28 AWG Min Crimp, 26 AWG Max, Phosphor Bronze, Gold Plating, 3A 90119-2121

Molex 90119-2121 Female Crimp Terminal is a high-quality connector component designed to securely join stranded cables to printed circuit boards (PCBs). Constructed from phosphor bronze, it delivers mechanical strength and durability, while the selective gold plating prevents oxidation and corrosion, ensuring consistent electrical performance.

This crimp terminal supports a wire size range of 28 AWG minimum to 26 AWG maximum, making it versatile for multiple electronic applications. It is intended primarily for use with Molex C-Grid III connector housings, featuring a compact box design and uniform locking system compatible with various housing styles.

The terminal can handle a maximum current of 3 amps and operates safely at voltages up to 350 volts AC or DC, suitable for low-voltage electronic circuits. Its temperature tolerance ranges from -55°C to 105°C, making it ideal for environments with wide temperature fluctuations such as industrial, automotive, and commercial electronics.

Additional features include a low contact resistance of 20 milliohms, which assures stable signal transmission without signal loss. The termination type is crimp, supporting efficient and reliable cable connections. The header pin size measures 0.64 square millimeters, and a recommended PCB hole diameter of 1 millimeter facilitates proper mounting.

Lightweight at just 0.73 grams, this crimp terminal is easy to install and does not exert strain on the equipment. The insulation material for headers is 15% glass-filled polyester (PBT), and the housing is made of polyphenylene oxide, providing durability and electrical insulation.

This crimp terminal series finds application in consumer electronics, industrial and commercial vehicles, and personal computers. It complies with DIN 41651 and HE13/14 standards, reflecting its industrial-grade quality.

Constructed from phosphor bronze for durability and strength. Gold plating offers corrosion resistance and excellent conductivity. Supports wire sizes from 28 AWG to 26 AWG for broad compatibility. Rated for 3A current and 350V AC/DC voltage for low-voltage applications.

Operates reliably between -55°C and 105°C across demanding conditions. Low contact resistance of 20mΩ ensures stable electrical connection. Compact design with a 0.64 mm² header pin size and 1 mm PCB hole requirement. Lightweight at 0.73g facilitating easy assembly.

Suitable for consumer electronics, automotive, and industrial use cases.
