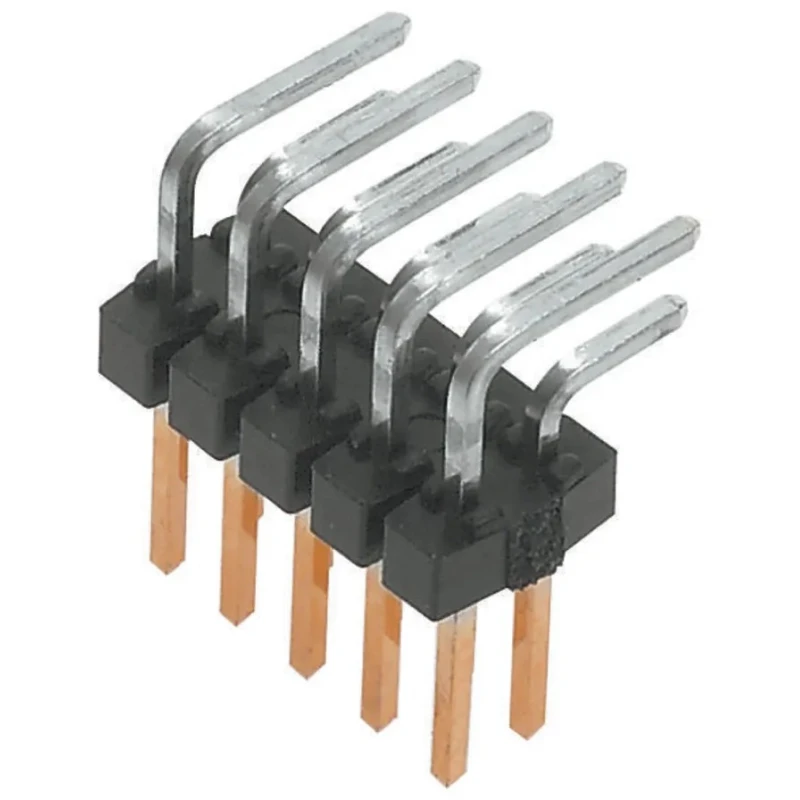

Molex C-Grid III Series Right Angle Through Hole Pin Header 12 Contact 2.54 mm Pitch 2 Row Unshrouded 90122-0766
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Features a right angle, through hole mount design for secure PCB connection.
- Contains 12 male contacts in 2 rows, unshrouded for flexible wiring.
- Constructed with polyester housing and gold-plated brass contacts for durability.
- Supports current rating of 3A and voltage up to 350V.
- Operates reliably within -55°C to 125°C temperature range.
- Breakaway design allows cutting to size for adaptable layout configurations.
- High retention force and mechanical stability ensure a secure mating connection once soldered.
- Suitable for board-to-board and wire-to-board applications in industrial and electronic systems.
Product Description
Molex 90122-0766 C-Grid III Series Right Angle Through Hole Pin Header is designed for robust, reliable electrical connections in industrial and electronic settings. This PCB header features 12 male contacts arranged in 2 rows with a 2.54 mm pitch, manufactured with a durable polyester housing and gold-plated brass contacts to ensure longevity and performance.
Ideal for applications requiring board-to-board and wire-to-board connectivity, the right angle through hole mount type allows for secure mechanical stability after soldering. The breakaway design offers flexibility to customize the header length according to specific design requirements.
Rated to carry a current of 3A and operate at voltages up to 350V, this pin header performs reliably across a wide temperature range from -55°C to 125°C. It is unshrouded, providing ease of wiring and inspection.
Common industrial and commercial applications include use in desktop computers, servers, medical equipment, telecommunications, white goods, and automotive safety electronics, making it a versatile component in electronics assembly and manufacturing.
Right angle, through hole mounting ensures a durable mechanical and electrical connection. Polyester housing with gold-plated brass contacts provides excellent conductivity and resistance to corrosion. Breakaway feature for customizable length suits diverse design needs.
High retention force secures mating connections firmly. Wide operating temperature range ensures performance in harsh environments.
This component complies with DIN 41651 and HE13/14 standards and is an established choice for advanced PCB connection solutions. Explore more PCB headers and connectors from our extensive Molex range on EnvMart for your next project.
Explore more products in our PCB Pin Header category.
