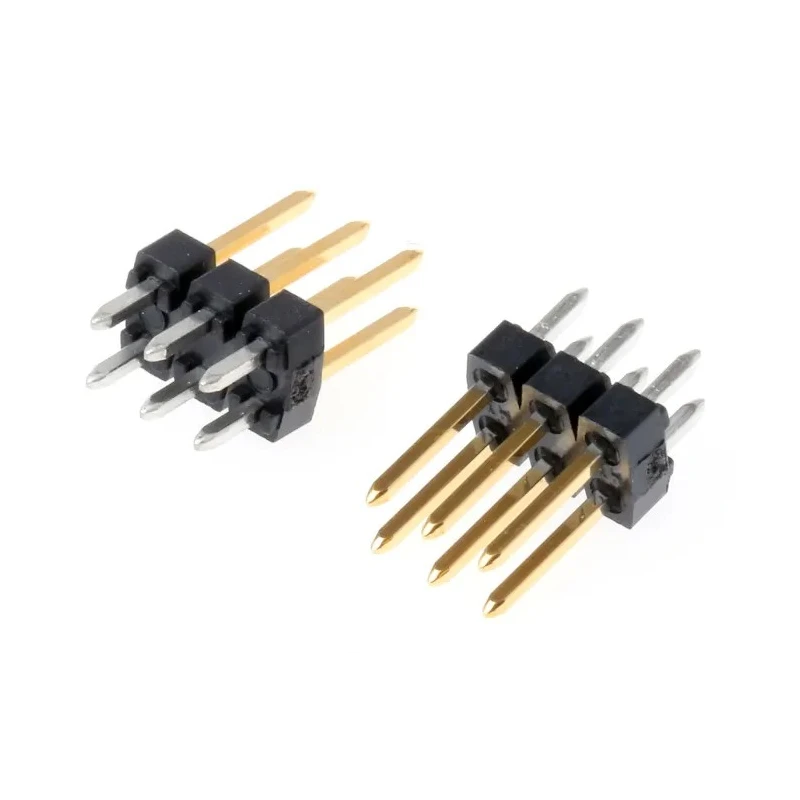

Molex C-Grid III Series Straight Through Hole Pin Header 6 Contacts 2.54 mm Pitch 2 Row Unshrouded 90131-0763

Molex 90131-0763 C-Grid III Series Straight Through Hole Pin Header is a high-quality PCB connector designed for industrial and electronic applications. Featuring 6 male contacts arranged in 2 rows, this unshrouded pin header has a 2.54 mm pitch suitable for board-to-board and wire-to-board interconnections.

The contacts are made of brass with gold plating, enhancing conductivity and corrosion resistance. The housing is constructed from durable polyester, ensuring electrical insulation and mechanical strength. Operating voltage is rated up to 350V, with a current rating of 3A, apt for various industrial electronics.

This pin header supports through hole mounting with a solder termination type that provides stable mechanical bonding once soldered. It operates efficiently in temperature ranges from -55°C to 125°C, suitable for harsh environments.

Designed with a breakaway feature, the header strip can be cut to the required size to suit specific design needs, offering installation flexibility. Tail pin length is 2.9 mm, and mating pin length is 6.75 mm, achieving reliable and secure mating connections.

C-Grid III series connectors are widely used in industrial machinery, computer systems, medical equipment, consumer electronics, telecommunications, transportation, and automotive safety systems.

Supports 3A current carrying capacity ensuring stable electrical performance. Features polyester housing material providing durability and insulation. Unshrouded design with two rows and a straight orientation for versatile mounting.

Gold plating on brass contacts offers excellent corrosion resistance and conductivity. Suitable for through hole mount type with male contact gender and solder termination. Operates reliably from -55°C to 125°C temperature range.

Contact tail pin length is 2.9 mm with mating pin length of 6.75 mm for secure effective connections. Rated for 350V voltage with high mechanical stability once soldered to PCB. Breakaway design allows cutting to size for design flexibility in applications.

Ideal for board-to-board and wire-to-board industrial, computer, medical, and telecommunications uses. Explore a broad range of reliable PCB connectors and accessories at EnvMart to support your electronic design and manufacturing needs.
