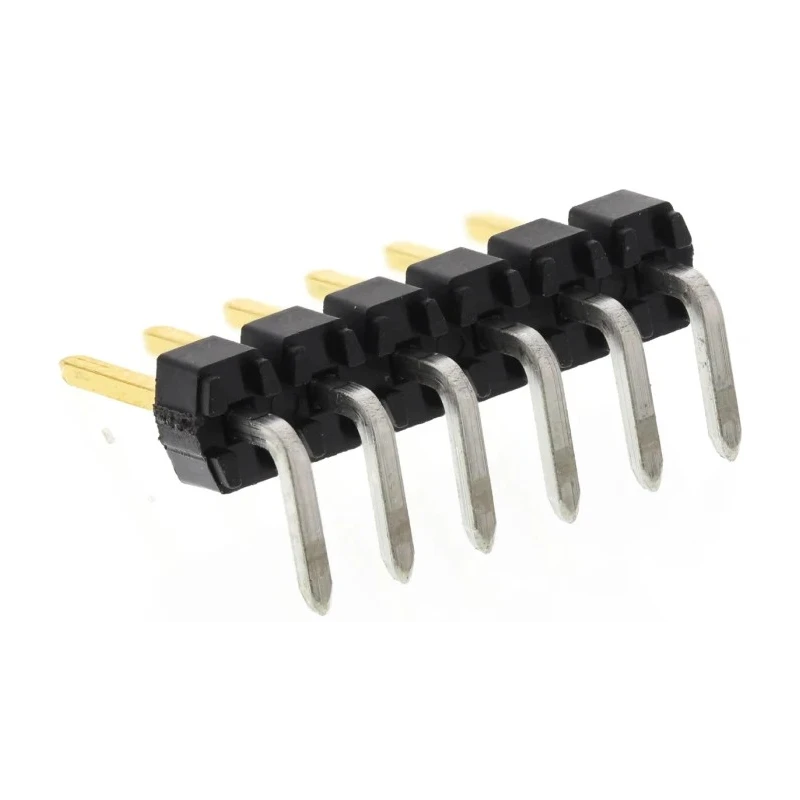

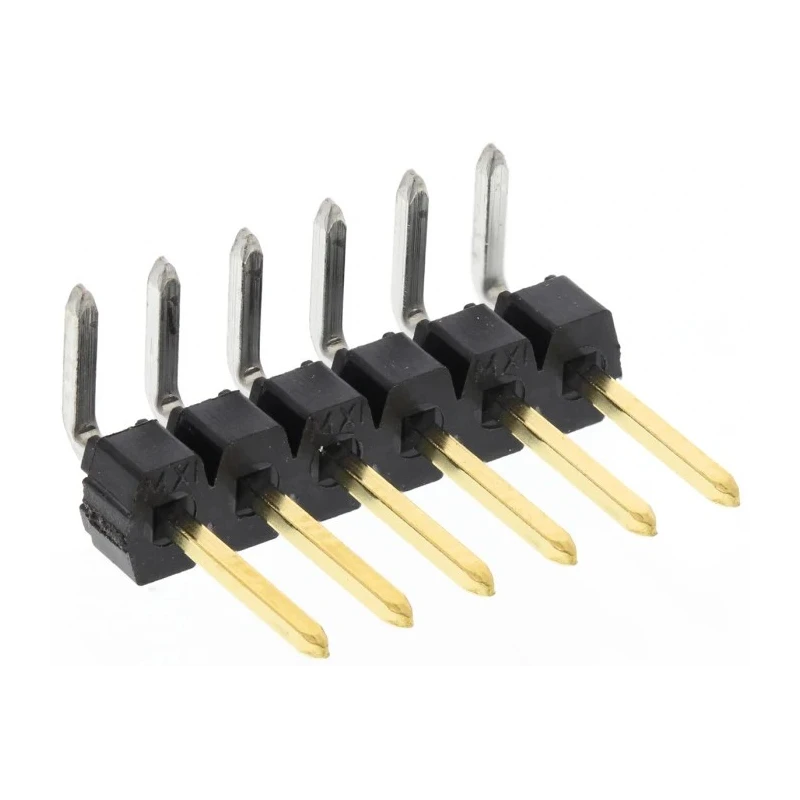

Molex C-Grid III Series Right Angle Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90121-0766
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Designed for board to board and wire to board applications.
- Breakaway feature allows for customizable pin length for flexible designs.
- High pin retention force ensures secure mating connections.
- Contacts provide high mechanical stability once soldered to PCB.
- Gold plated brass contacts for reliable conductivity and corrosion resistance.
- Rated at 3A current and 350V voltage for robust performance.
- Operating temperature range from -55°C to 125°C for versatile industrial use.
- Single row with right angle orientation suits compact PCB layouts.
Product Description
Molex 90121-0766 C-Grid III Series Right Angle Through Hole Pin Header is engineered for industrial-grade electronic connectivity. This pin header features 6 male contacts spaced at 2.54 mm pitch in a single row unshrouded format, which allows use in both board to board and wire to board applications.
The right angle orientation and through-hole mounting give it excellent mechanical stability and support on printed circuit boards, suitable for electronics in medical devices, telecommunications equipment, computers, and automotive safety systems. The stainless polyester housing withstands temperatures from -55°C to 125°C, adapting to stringent operating environments.
Gold-plated brass contacts reduce oxidation and improve durability with a current rating of 3A at 350V, ensuring reliable power transmission. The breakaway design enables precise customization of pin length to fit unique assembly requirements, with pins having 2.9 mm tail pin length and 6.75 mm mating pin length.
This connector complies with industry standards DIN 41651 and HE13/14, supporting safe and consistent electrical connections across demanding industrial and commercial applications.
Suitable for use in industrial, medical, computer, telecommunications, and automotive electronics. Breakaway pins provide design flexibility for custom PCB configurations. High retention force on pins secures contacts during vibration or movement.
Durable brass material with gold plating extends connector life. Wide operating temperature range for harsh environmental conditions. Right angle orientation enables compact board layouts. Through-hole mounting enhances mechanical bonding strength on PCBs.
This product is essential for designers seeking reliable and flexible PCB header solutions compliant with modern industrial standards. Browse our catalog for additional Molex C-Grid III components and accessories suitable for comprehensive electrical interconnection projects on EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a current of 3A, ensuring reliable power transmission in various applications.
The voltage rating for this model is 350V, suitable for robust performance in electrical connections.
The contacts in this pin header are spaced at a pitch of 2.54 mm, which is standard for various electronic applications.
It operates within a temperature range of -55°C to 125°C, making it versatile for industrial use.
This pin header features 6 male contacts, allowing for multiple connection points in a compact design.
This model utilizes through-hole mounting, providing excellent mechanical stability on printed circuit boards.
The contacts are made of brass with gold plating, while the housing is constructed from polyester, ensuring reliable conductivity and durability.
The tail pin length is 2.9 mm, allowing for effective soldering to the PCB.
The mating pin length is 6.75 mm, designed for secure connections with compatible components.
Yes, this model is designed for both board-to-board and wire-to-board applications, providing flexibility in electronic designs.
This pin header has a right angle orientation, which is beneficial for compact PCB layouts.
This connector complies with industry standards DIN 41651 and HE13/14, ensuring safe and consistent electrical connections.
