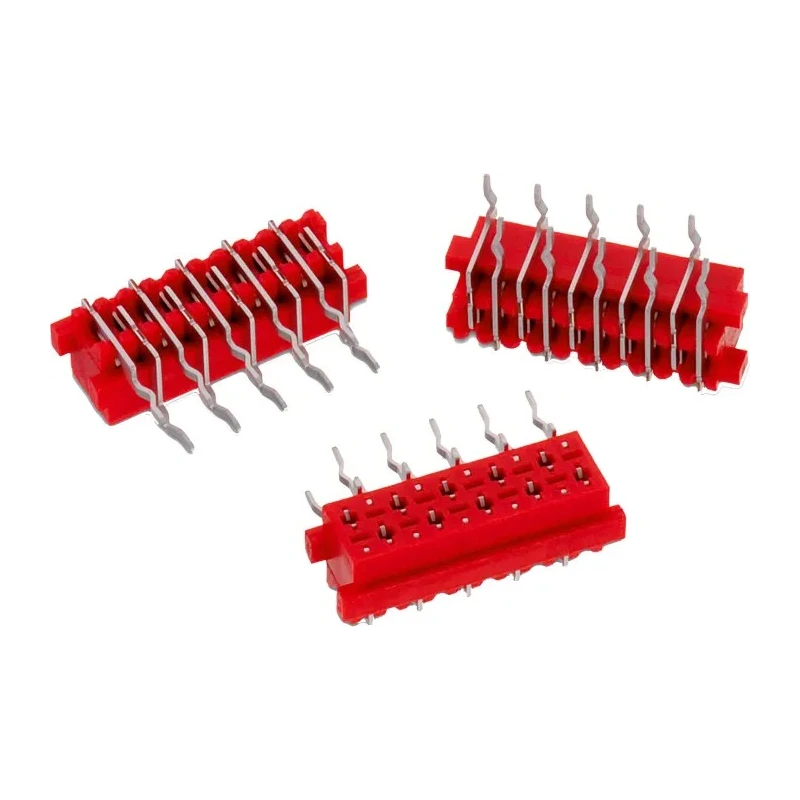

Wurth Elektronik WR-MM Series Right Angle Through Hole PCB Header 14 Contact 2.54 mm Pitch 2 Row Shrouded 690368181472

Wurth Elektronik 690368181472 Right Angle Through Hole PCB Header is designed for reliable electrical connections in electronic applications. Featuring a robust Polybutylene Terephthalate housing with UL94 V-0 flammability rating, it ensures safety and durability in industrial and commercial PCB assemblies.

This shrouded connector includes 14 female contacts arranged in 2 rows, each spaced at 2.54 mm pitch and row pitch. It supports a current rating of 1.5A and a voltage rating of 250V, making it suitable for a range of power and signal transmission tasks.

The right angle orientation allows for compact PCB designs and effective wire-to-board connector system integration. Its through hole mount type ensures secure soldering to printed circuit boards, enhancing mechanical stability under vibration and thermal stress.

Residential, industrial, and laboratory electronics assemblies benefit from the corrosion-resistant phosphor bronze contacts plated with matt tin over nickel. The tail pin length of 2.9 mm supports solid solder joints. Operating temperature range from -40°C up to 105°C makes it versatile for various environments.

This component complies with RoHS directives and holds UL E323964 certification, ensuring conformity to environmental and safety standards within electronics manufacturing. Constructed with Polybutylene Terephthalate housing for durability.

Rated for 1.5A current and 250V voltage operation. Female contact gender with matt tin plating over nickel for reliable conductivity. Operates within a temperature range of -40°C to 105°C. Right angle orientation facilitates PCB mounting requiring angled connectors.

Through hole mount type ensures stable soldered connections. Includes 14 contacts arranged in 2 rows with a 2.54 mm row pitch. Tail pin length is 2.9 mm for secure board insertion. Complies with RoHS and UL E323964 standards for safety and environmental regulations.

Shrouded design provides protection and prevents misalignment during assembly.

Ideal for industrial, commercial, laboratory, and manufacturing electronics, this Wurth Elektronik PCB Header supports efficient assembly with adherence to safety and quality standards.
