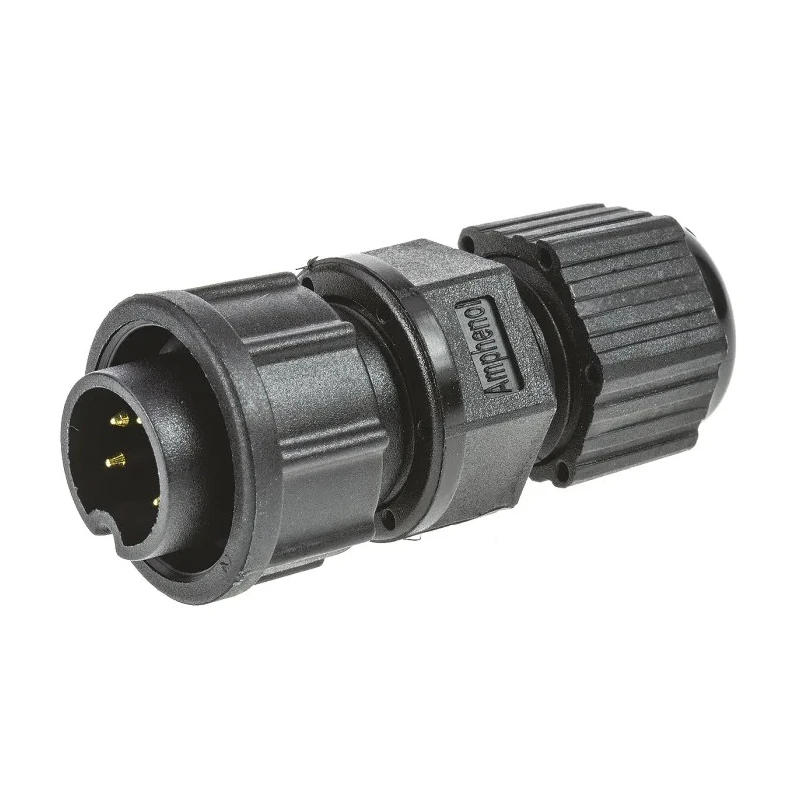

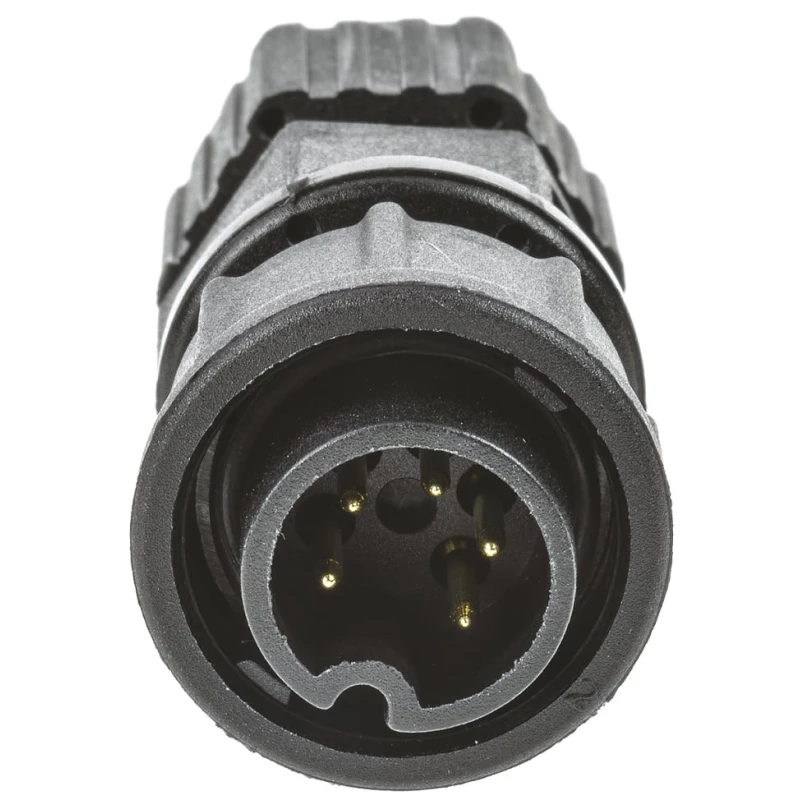

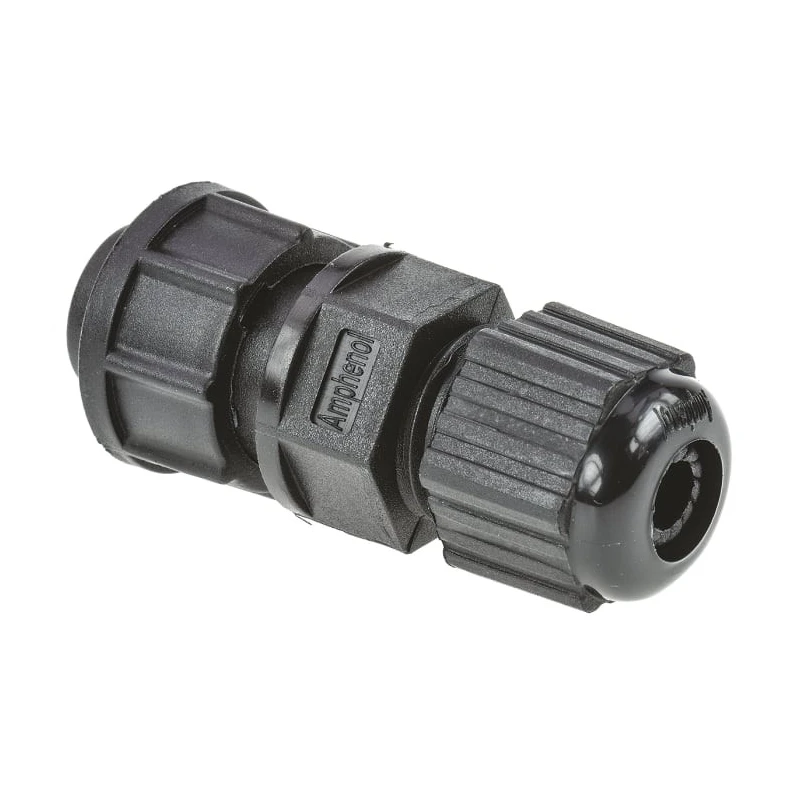

Amphenol Industrial Circular Connector Panel Mount Plug Male 5 Contacts 500V 5A IP67 Nylon Housing BD-05BFMA-LL7001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500.0V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 5A |
| Model | BD-05BFMA-LL7001 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Contact Material | Copper |
| Series | Ceres |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 5 |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 20 mm |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Rated for 5A current and 500 volts voltage capacity.
- Features a durable black nylon housing providing IP67 ingress protection.
- Contacts are gold plated copper with solder termination for reliable connections.
- Provides a straight orientation with bayonet mating for secure locking.
- Operates within -40°C to +105°C temperature range with up to 1000 mating cycles durability.
- Ideal for harsh outdoor and industrial environments requiring rugged connectors.
- Complies with Amphenol LTW series design standards.
- Shell size measures 20 mm and has a 2-point bayonet lock mechanism.
Product Description
Amphenol Industrial BD-05BFMA-LL7001 is a panel mount circular connector with 5 male contacts designed for industrial and harsh environment use. It features a black nylon housing rated to IP67 for dust and water resistance, ensuring reliable performance outdoors and in demanding industrial applications.
The connector supports a current of 5A and voltage up to 500 volts. Contact materials include gold-plated copper providing excellent conductivity and corrosion resistance. Termination type is solder, allowing ease of assembly and secure connections.
The design has a straight orientation and employs a 2-point bayonet mating type for robust locking and easy panel mounting. It operates over a temperature range of -40°C to +105°C and is rated for up to 1000 mating cycles, making it highly durable for repeated use.
Its shell size is 20 mm and it is part of the Amphenol LTW Ceres series connectors, known for ruggedness and reliability. This connector is suitable for use in industrial automation, machinery, instrumentation, and other commercial electrical setups.
Rated for 5A current and 500 volts voltage capacity. Durable IP67 black nylon housing for harsh environment protection. Gold-plated copper contacts with solder termination. Straight orientation with bayonet lock for secure mating.
Operational temperature range from -40°C to +105°C. High mating durability of 1000 cycles. 20 mm shell size for standard connector format. Ideal for industrial automation, machinery, and instrumentation. Explore the full range of Industrial Circular Connectors at EnvMart for reliable electrical connections tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5A and a voltage capacity of 500V.
It has an IP67 rating, providing protection against dust and water ingress.
The housing is made of nylon, and the contacts are made of gold-plated copper.
It operates within a temperature range of -40°C to +105°C.
This connector features 5 male contacts.
It uses solder termination for secure connections.
The shell size measures 20 mm, which is standard for this type of connector.
It employs a 2-point bayonet mating type for robust locking, ensuring a secure connection.
It is suitable for industrial automation, machinery, instrumentation, and other commercial electrical setups.
This model is rated for up to 1000 mating cycles, indicating high durability for repeated use.
The connector has a straight orientation, facilitating easy panel mounting.
The country of origin for this connector is India.
