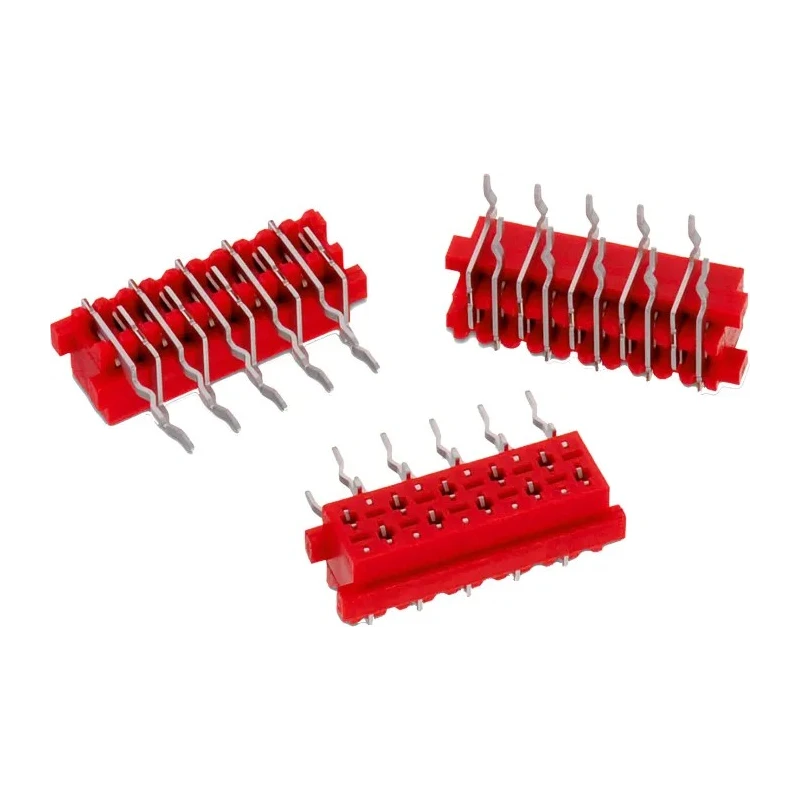

Wurth Elektronik WR-MM Series Right Angle Through Hole PCB Header Shrouded Female Connector 18 Contacts 2.54 mm 690368181872
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | WR-MM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS, UL E323964 |
| Contact Plating | Matt Tin over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Operates at a voltage rating of 250V and current rating of 1.5A.
- Constructed with Polybutylene Terephthalate housing for durability and UL94 V-0 flammability standard.
- Right angle orientation with a tail pin length of 2.9mm for secure solder termination.
- Contact made of phosphor bronze with matt tin over nickel plating for corrosion resistance.
- Wide operating temperature range from -40°C to 105°C ensures performance under demanding conditions.
- Complies with RoHS and UL E323964 standards for safety and environmental compliance.
- Ideal for industrial electronics, power connectors, and PCB assembly applications.
Product Description
Wurth Elektronik 690368181872 WR-MM Series right angle through hole PCB header is a high-quality female connector designed for wire-to-board applications. Featuring 18 contacts arranged in 2 rows with a 2.54 mm pitch, this shrouded PCB header provides reliable connectivity and protection for sensitive electronics.
The housing material is Polybutylene Terephthalate which meets UL94 V-0 flammability rating, ensuring safety in demanding electrical environments. The connector operates at a maximum voltage of 250V and current of 1.5A, suitable for a variety of circuit boards and industrial electronics.
The contacts are made from phosphor bronze, plated with matt tin over nickel to enhance corrosion resistance and durability. The right angle orientation and 2.9mm tail pin length facilitate secure through-hole solder mounting on PCBs.
Designed to operate within a temperature range of -40°C to 105°C, this PCB header performs reliably in varied environments, making it suitable for industrial, manufacturing, and electronic assembly applications.
Voltage rating of 250V and current of 1.5A. Durable Polybutylene Terephthalate housing. Shrouded design for enhanced protection. Phosphor bronze contacts with matt tin plating. RoHS and UL E323964 compliance. Right angle, 2-row configuration with 2.54 mm pitch.
Wide operating temperature range.
This Wurth Elektronik WR-MM Series connector is ideal for professional PCB assembly, power and signal transmission in electronic components. It supports a secure and durable connection essential in industrial, laboratory, electronic manufacturing, and commercial applications.
Browse EnvMart's extensive selection of Wurth Elektronik PCB Headers and connectors for more solutions tailored to your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum voltage of 250V and a current rating of 1.5A.
This model features a 2.54 mm pitch and has 18 contacts arranged in 2 rows.
The housing is constructed from Polybutylene Terephthalate, which meets the UL94 V-0 flammability standard.
The tail pin length is 2.9 mm, facilitating secure solder termination.
It operates within a temperature range of -40°C to 105°C, making it suitable for demanding environments.
This unit uses solder termination, designed for through-hole mounting.
The contacts are made of phosphor bronze and are plated with matt tin over nickel for enhanced corrosion resistance.
Yes, it complies with RoHS and UL E323964 standards for safety and environmental compliance.
It features a right angle orientation, which is beneficial for space-constrained applications.
This model is ideal for industrial electronics, power connectors, and PCB assembly applications.
It has a shrouded design that provides additional protection for the contacts against damage and contamination.
It is designed as a wire-to-board connector system, suitable for various electronic applications.
