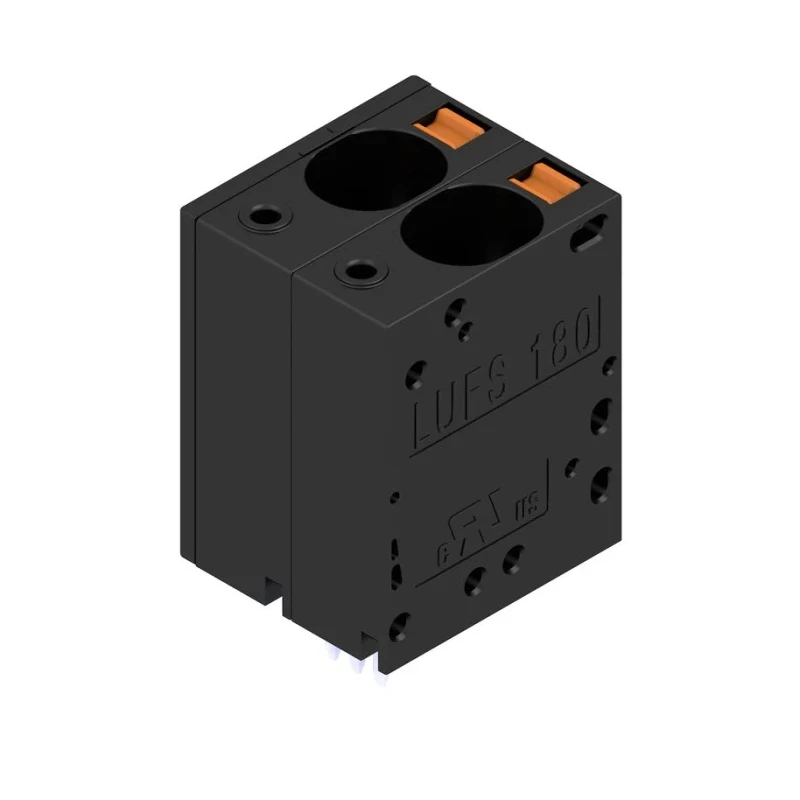

Weidmüller LU Series PCB Terminal Block 3-Contact 15 mm Pitch 1 Row 600V 57A Push-in Connection 2492220000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 180° |
| Current | 57A |
| Depth | 24.7mm |
| Width | 41.48mm |
| Housing Material | Polyamide |
| Series | LU |
| Number of Rows | 1 |
| Pitch | 15mm |
| Standards/Approvals | CSA, cURus |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 16mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 4AWG |
| Wire Connection Method | Push-in |
Key Features
- Designed for high current and voltage applications on printed circuit boards.
- Features a 15 mm pitch and single-row configuration.
- Supports wire sizes from 0.5 mm² (18 AWG) up to 16 mm² (4 AWG).
- Constructed with durable polyamide housing for high reliability.
- Push-in connection method enables easy and secure wiring.
- Suitable for applications such as solar inverters, frequency converters, servo-controllers, and power supplies.
- Operates at voltage up to 600V with a current rating of 57A.
- Compact design with 41.48 mm width and 24.7 mm depth for PCB mounting.
Product Description
Weidmüller 2492220000 LU Series PCB Terminal Block is a high-performance connector designed specifically for demanding power electronic applications, including solar inverters, frequency converters, servo controllers, and power supplies. This 3-contact terminal block features a 15 mm pitch and a single-row configuration, lending itself to precise and reliable installations on printed circuit boards.
The terminal block accommodates wire sizes ranging from 0.5 mm² (18 AWG) minimum to 16 mm² (4 AWG) maximum, supporting significant current loads up to 57 amperes at a voltage rating of 600 volts. It utilizes a push-in connection method, which simplifies wiring and ensures a secure and stable connection, reducing assembly time while maintaining electrical safety.
The housing of the terminal block is made from durable polyamide, providing excellent mechanical strength and insulation properties. It offers a conductor outlet oriented at 180 degrees relative to the PCB mounting side, effectively managing space and wire routing on circuit boards.
Measuring 41.48 mm in width and 24.7 mm in depth, this compact terminal block is optimized for through-hole technology (THT) solder connection on printed circuit boards, ensuring a robust mechanical mount and reliable electrical contact. The series complies with CSA and cURus standards, verifying its safety and quality for industrial applications.
High current and voltage handling capability ideal for industrial-grade electronic assemblies. Push-in wire connection reduces installation time and improves reliability. Polyamide housing material provides mechanical resilience and electrical insulation.
Compact form factor enabling efficient PCB layout and space utilization. Compliance with CSA and cURus standards ensures operational safety.
This terminal block is manufactured in China and is available for use across various industrial and laboratory electronic applications, including power distribution and control systems. Choose Weidmüller LU Series 2492220000 terminal block for dependable electrical connectivity on your PCB-based systems.
Explore the Electronics Components category at EnvMart for more Weidmüller connectors and terminal block solutions designed for high-performance electronic equipment assembly and maintenance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block operates at a voltage of up to 600V and has a current rating of 57A.
It supports wire sizes ranging from 0.5 mm² (18 AWG) to 16 mm² (4 AWG).
The terminal block features a 15 mm pitch and a single-row configuration.
The housing is constructed from durable polyamide, providing good mechanical strength and insulation properties.
The conductor outlet is oriented at 180 degrees relative to the PCB mounting side.
It measures 41.48 mm in width and 24.7 mm in depth.
It utilizes a push-in connection method for easy and secure wiring.
This model complies with CSA and cURus standards, ensuring operational safety.
It is suitable for applications such as solar inverters, frequency converters, servo controllers, and power supplies.
This terminal block features 3 contacts.
It is manufactured in China.
The compact design enables efficient PCB layout and space utilization, making it suitable for various electronic applications.
