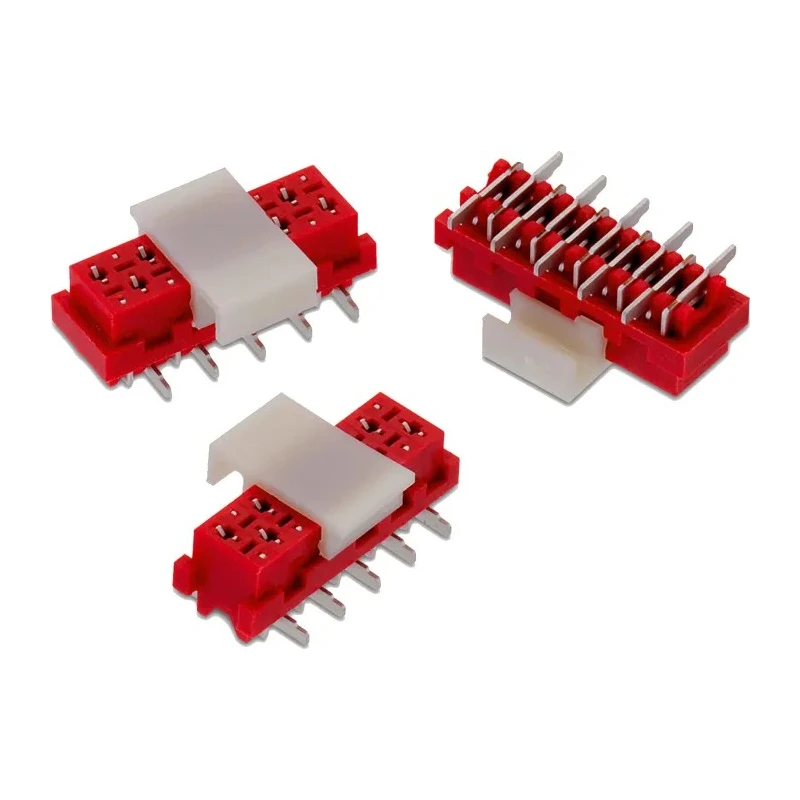

Wurth Elektronik WR-MM Series Straight Surface PCB Header, 24 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 690367282476

Wurth Elektronik 690367282476 WR-MM Series Straight Surface PCB Header is a high-quality connector featuring 24 female contacts arranged in 2 rows with a standard 2.54 mm pitch. It is designed for use in electronic components assemblies requiring secure and reliable connections on printed circuit boards.

The connector housing is constructed from polyamide material, providing excellent mechanical strength and thermal resistance. The contacts are made from phosphor bronze and are plated with matt tin over nickel, enhancing corrosion resistance and ensuring consistent electrical conductivity over the product lifetime.

This surface mount technology (SMT) component is shrouded to protect the contacts and prevent accidental shorts, making it ideal for industrial applications where durability and safety are priorities. It supports currents up to 1.5 amperes and operates effectively between temperatures of -40°C and 105°C, making it suitable for harsh operating environments.

Its tail pins, each 2.9 mm in length, ensure secure soldering onto PCBs, while the straight orientation and 2-row configuration provide compatibility with a wide range of electronic devices and power connectors. The wire-to-board connector system allows easy integration with wiring harnesses and cable assemblies for complex electrical setups.

Notably, the connector complies with RoHS standards and carries UL approval (E323964), reflecting strict adherence to environmental and safety regulations. The connector has a pitch of 2.54 mm, suitable for standard PCB applications.

Supports a continuous current rating of 1.5A for efficient power transmission. Housing made of durable polyamide material for mechanical stability. Phosphor bronze contacts plated with matt tin over nickel for corrosion resistance.

Shrouded design prevents accidental contact and improves durability. Operating temperature range of -40°C to 105°C suitable for various environments. Surface mountable type designed for ease of PCB assembly. Wire-to-board connector system for secure mating with cables.

Tail pins length of 2.9 mm for stable solder termination. Complies with RoHS and UL E323964 safety standards.

This PCB header is widely used in electronics, manufacturing, telecommunications, and other industrial applications requiring reliable PCB connectors. For professional engineers and designers seeking quality connectors with robust features, this Wurth Elektronik WR-MM Series model is an excellent choice.
