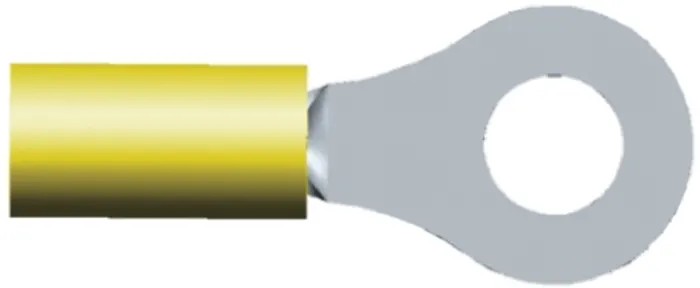

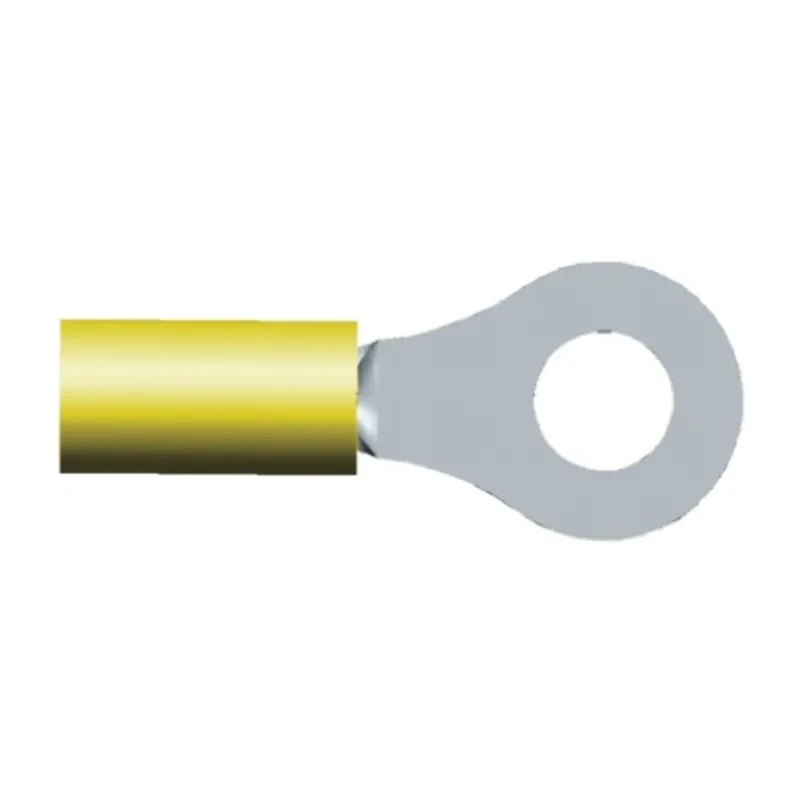

TE Connectivity PIDG Insulated Ring Terminal, M5 Stud Size, 12 AWG to 10 AWG Wire Size, Nylon Insulation, Yellow 130679
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 130679 |
| Insulation | Insulated |
| Overall Length | 40.5mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Inner Ring Diameter | 5.2mm |
| Stud Size | M5 |
Key Features
- High conductivity copper body ensures reliable electrical performance.
- Insulated with yellow nylon for wire size identification and protection.
- Serrated copper sleeve provides excellent wire insulation support and prevents fraying.
- Pre-formed ring terminal design enables consistent, reliable crimps.
- Rated for a maximum operating temperature of 105°C for durability under heat.
- Compatible with various wiring applications including instruments, lighting, and motors.
- Color-coded sleeve simplifies tool matching and wire sizing in production.
- Meets RoHS standards, ensuring environmental compliance.
Product Description
TE Connectivity 130679 PIDG Insulated Ring Terminal is designed for industrial and commercial electrical wiring applications where secure, reliable connections are essential. This M5 stud size terminal accommodates wire sizes from 12 AWG to 10 AWG (3 mm² to 6 mm²) and features a yellow nylon insulation sleeve for ease of identification.
The terminal incorporates a high conductivity copper body with a tin plating to resist corrosion and ensure long-term electrical performance. Inside the barrel, serrations improve contact strength and tensile resistance after crimping. Additionally, the copper sleeve enhances wire insulation support and prevents wire strand fraying during installation.
The pre-insulated diamond grip (PIDG) design optimizes crimp uniformity and reliability, facilitating high-speed production use while maintaining consistent mechanical and electrical properties. The funnelled wire entry reduces the chance of wire strands turning back and assists quick, trouble-free wire insertion.
This ring terminal can operate up to 105°C maximum temperature, making it suitable for varied environmental conditions and applications such as panel boxes, power supplies, aerospace systems, transportation, and control instrumentation.
High conductivity copper body ensures reliable electrical contact. Yellow nylon insulation sleeve provides wire size identification and electrical insulation. Serrations in the wire barrel enhance contact and tensile strength post-crimp.
Copper sleeve prevents wire fraying and improves insulation support. Funnelled wire entry allows easy and reliable wire insertion. Meets RoHS standards for environmental compliance. Rated for 105°C maximum operating temperature.
Suitable for diverse industrial and commercial wiring applications.
The PIDG ring terminal series by TE Connectivity delivers dependable, consistent crimps using specialized tooling dies, offering excellent performance in challenging circuit environments. It is recommended for use in electrical and electronic assemblies requiring secure ring-type wire connections.
Explore additional TE Connectivity PIDG Ring Terminal variants and related power connectors with EnvMart for comprehensive wiring and crimping solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal accommodates wire sizes from 12 AWG to 10 AWG, which corresponds to 3 mm² to 6 mm².
It is rated for a maximum operating temperature of 105°C, making it suitable for various environmental conditions.
The contact material of this ring terminal is copper, which ensures reliable electrical performance.
The terminal features nylon insulation, which provides electrical insulation and aids in wire size identification.
This model has an M5 stud size, making it compatible with M5 mounting applications.
It includes a funnelled wire entry that reduces the chance of wire strands turning back, facilitating quick and reliable wire insertion.
This product meets RoHS standards, ensuring compliance with environmental regulations.
The overall length of this terminal is 40.5 mm.
The thickness of the insulation is 0.79 mm.
The serrations improve contact strength and tensile resistance after crimping, enhancing the reliability of the connection.
Yes, the pre-insulated diamond grip (PIDG) design optimizes crimp uniformity and reliability, making it suitable for high-speed production applications.
It is suitable for various industrial and commercial wiring applications, including panel boxes, power supplies, aerospace systems, and control instrumentation.
