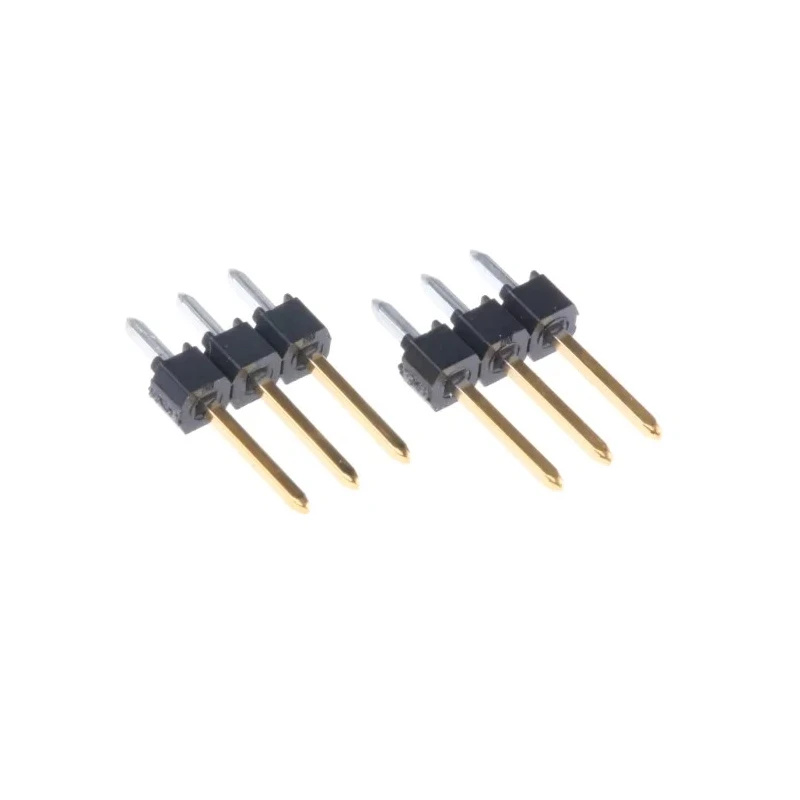

Molex C-Grid III Series Straight Through Hole Pin Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0763
Specifications
| Country of Origin | Indonesia |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Unshrouded design allows easy access to contacts during soldering.
- Made from polyester housing with brass contacts plated in gold for excellent conductivity.
- Designed with a breakaway feature for flexible length adjustment.
- Suitable for through hole mounting with straight orientation.
- Operates safely between -55°C to 125°C temperature range.
- Supports voltage rating of 350 V and current rating up to 3 A.
- The tails have a pin length of 2.9 mm and mating pin length of 6.75 mm.
- Connector system is compatible with C-Grid III series sockets and crimp housings.
Product Description
Molex 90120-0763 C-Grid III Series Straight Through Hole Pin Header features a 3-contact wire-to-board connector with a 2.54 mm pitch and a single row of unshrouded male pins. This connector uses a polyester housing and gold-plated brass contacts to offer reliable electrical connections and durability in demanding industrial and electronic environments.
The pin header is designed for through hole mounting with straight orientation and includes a breakaway design that allows customization of pin length to suit various PCB layouts. The 2.9 mm tail pin length and 6.75 mm mating pin length ensure secure and stable connections when mated with compatible C-Grid III series sockets or crimp housings.
Operating at voltages up to 350 V and carrying currents up to 3 A, this connector is suitable for applications requiring moderate electrical load handling. Its operating temperature range from -55°C to 125°C makes it reliable in harsh conditions, including industrial, medical equipment, telecommunications devices, automotive electronics, and consumer appliances.
The high mechanical stability once soldered provides excellent retention force for mating connections, reducing the risk of disconnections during operation or handling. The unshrouded design enables easy soldering access and inspection.
Key features include:. Breakaway feature for flexible design modifications. High retention force for secure mating connections. Gold plating for corrosion resistance and conductivity. Polyester housing for electrical insulation and mechanical strength.
Compatible with multiple C-Grid III series components.
This Molex pin header is widely used across computer servers, medical instruments, white goods, exchange stations, and automotive safety systems. Its robust design makes it indispensable for PCB interconnections in critical electronics.
Explore more Molex connectors and electronic components on EnvMart for reliable industrial and commercial applications.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header supports a voltage rating of 350 V.
It has a current rating of up to 3 A.
This connector operates safely between -55°C and 125°C.
The pitch of the contacts is 2.54 mm.
This model features 3 contacts in a single row.
The housing is made from polyester, and the contacts are brass plated in gold for conductivity.
The tail pin length is 2.9 mm, while the mating pin length is 6.75 mm.
It is designed for through hole mounting with straight orientation.
This model features an unshrouded design, allowing easy access to contacts during soldering.
It is compatible with C-Grid III series sockets and crimp housings.
The termination type for this pin header is solder.
The country of origin for this pin header is Indonesia.
