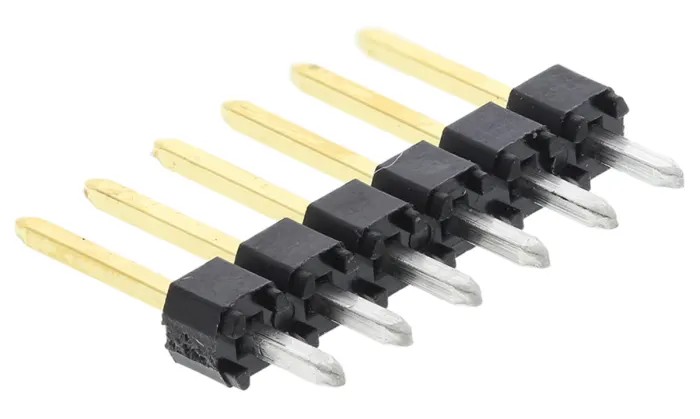

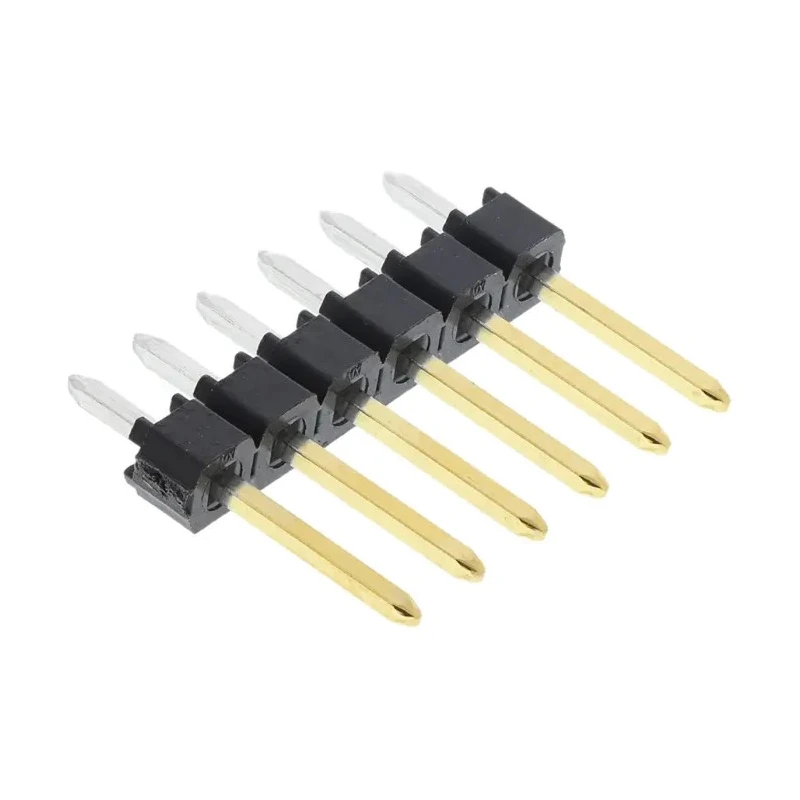

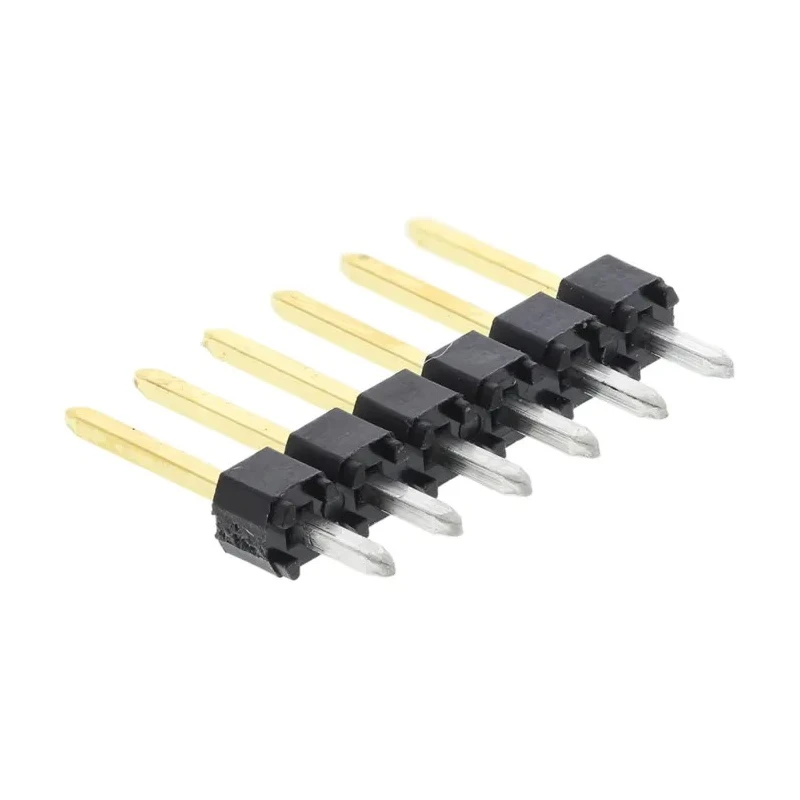

Molex C-Grid III Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0766

Molex 90120-0766 C-Grid III Series Straight Through Hole Pin Header features a 2.54 mm pitch with 6 male contacts arranged in a single row, intended for reliable wire-to-board connections in industrial and commercial electronics.

Manufactured with a durable polyester housing and brass contacts plated with gold, this unshrouded header supports a voltage rating of 350V and current capacity of 3A. It operates effectively in temperatures ranging from -55°C to 125°C, making it suitable for demanding environments.

The through-hole mount design includes solder termination for robust fixation on printed circuit boards. Its breakaway design allows users to cut the header to desired lengths, providing flexibility for various layout requirements. The high pin retention force ensures secure mating, while soldered contacts offer excellent mechanical stability.

These headers interface seamlessly with C-Grid III series PCB sockets and crimp housings for board-to-board and wire-to-board applications. Typical uses include industrial equipment, computer systems, medical devices, telecommunications, and automotive safety electronics.

Compatible with C-Grid III interconnection system for robust PCB connections. Constructed with polyester housing and brass contacts plated with gold for durability. Supports operating voltage up to 350V and current rating of 3A.

Features through-hole mount type with solder termination for secure assembly. Operating temperature range is -55°C to 125°C ensuring reliability. Breakaway design enables easy cutting for custom sizing. High mechanical stability and retention force maintain strong mating connections.

Suitable for industrial, computer, medical, telecommunications, and automotive applications. Discover more professional PCB connector solutions from Molex and other leading brands on EnvMart.
