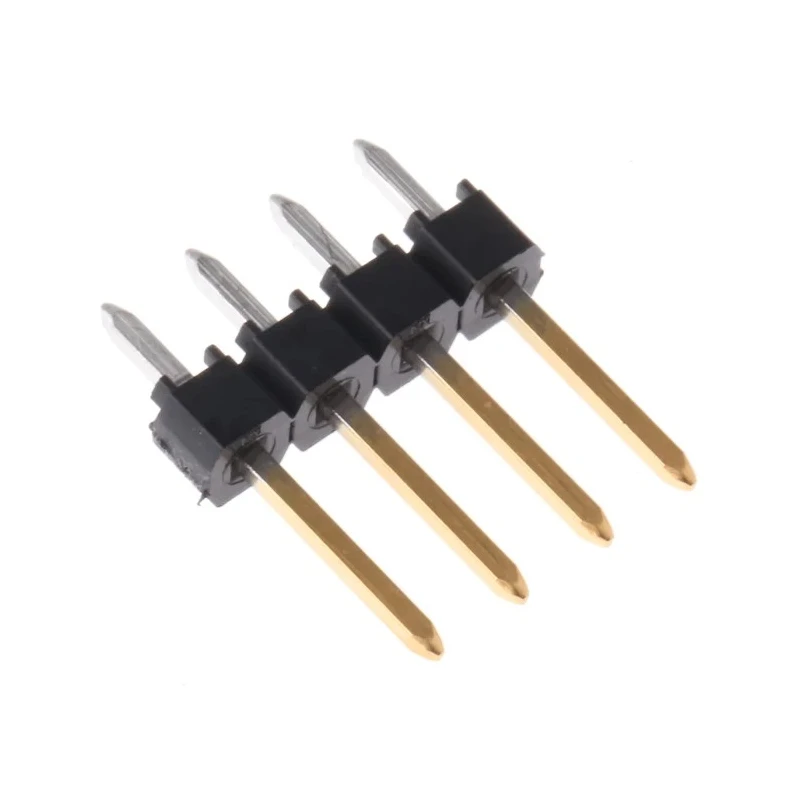

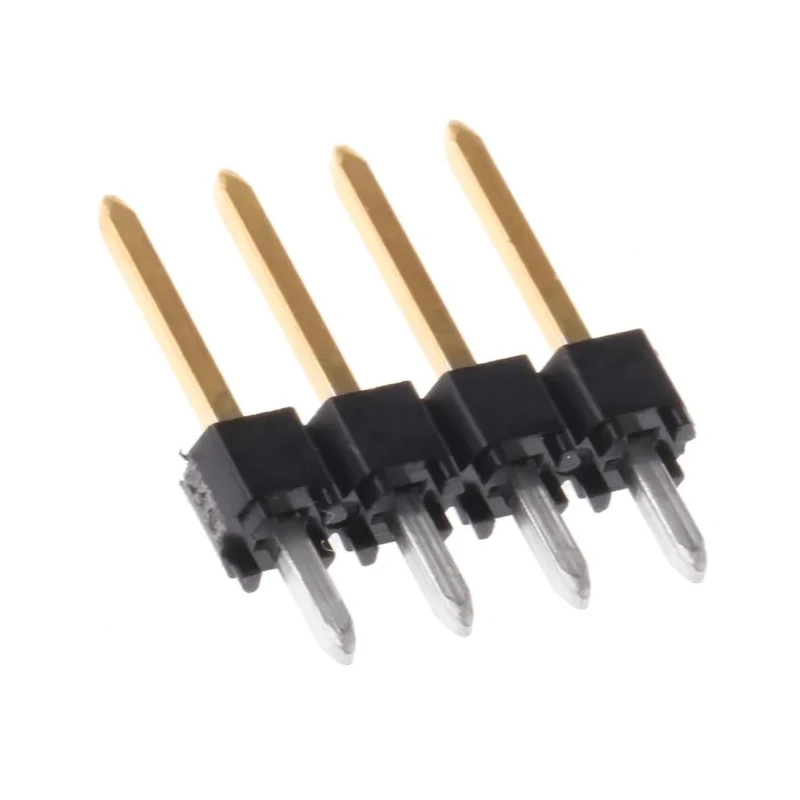

Molex C-Grid III Series Straight Through Hole Pin Header, 4 Contact, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0764
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
| 4WAY SHROUDED HEADERBrand | FCI |
Key Features
- Supports a maximum current of 3A for reliable electrical performance.
- Constructed with a polyester housing material ensuring durability.
- Features brass male contacts with gold plating for enhanced conductivity and corrosion resistance.
- Designed with a 2.54 mm pitch and 1-row straight orientation for versatile PCB applications.
- Includes a breakaway design allowing customization of pin length for flexible design requirements.
- Operates effectively within a wide temperature range from -55°C to 125°C.
- Termination by solder enhances mechanical stability once mounted on PCB.
- Compatible with C-Grid III series PCB sockets and crimp housings for board-to-board and wire-to-board applications.
Product Description
Molex 90120-0764 C-Grid III Series Straight Through Hole Pin Header offers a precise and robust electrical connection solution with 4 contacts, 2.54 mm pitch, and a single row design. This unshrouded pin header is engineered for through-hole mounting, ideal for wire-to-board interconnections in industrial, computer, telecommunications, medical, and automotive electronics.
The housing is made from durable polyester, and the male contacts are brass plated with gold to provide superior conductivity and corrosion resistance. The pins include a breakaway feature which allows customization to suit various PCB layouts, adding to design flexibility.
Operating over a temperature range of -55°C to 125°C and rated for voltages up to 350V with a current capability of 3A, this component is suitable for demanding electrical environments. The solder termination ensures a strong mechanical bond to the PCB, enhancing stability during operational stress.
Molex C-Grid III connectors are widely used in critical applications such as desktop PCs, servers, medical equipment, white goods, and automotive safety systems. The series complies with DIN 41651 and HE13/14 standards.
Supports 3A current capacity for reliable electrical performance. Polyester housing ensures mechanical robustness and insulation. Gold-plated brass male contacts for enhanced electrical conductivity. Breakaway pins provide design flexibility for customized PCB implementations.
Wide operating temperature range from -55°C to 125°C. Suitable for board-to-board and wire-to-board applications. Unshrouded one-row straight orientation suits various interconnection needs. Voltage rating up to 350V for safe operation in diverse electronic devices.
High retention force maintains secure connector mating under mechanical stresses.
This Molex 90120-0764 pin header is an essential component in PCB assembly for industrial, consumer, medical, telecommunications, and automotive sectors. Explore the full range of Molex C-Grid III connectors at EnvMart for your electronic component requirements.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 3A for reliable electrical performance.
The pin header has a voltage rating of up to 350V, making it suitable for diverse electronic devices.
The contacts are designed with a pitch of 2.54 mm, which is standard for many PCB applications.
The housing is made from durable polyester, and the male contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
It operates effectively within a wide temperature range from -55°C to 125°C.
The termination type is solder, which enhances mechanical stability once mounted on the PCB.
This pin header features a straight orientation and is unshrouded, suitable for various interconnection needs.
It has 4 contacts, allowing for multiple connections in a compact design.
It is designed for wire-to-board interconnections in industrial, computer, telecommunications, medical, and automotive electronics.
The tail pin length is 2.9 mm, providing compatibility with various PCB thicknesses.
It complies with DIN 41651 and HE13/14 standards, ensuring compatibility with various applications.
Yes, it includes a breakaway design that allows customization of pin length for flexible design requirements.
