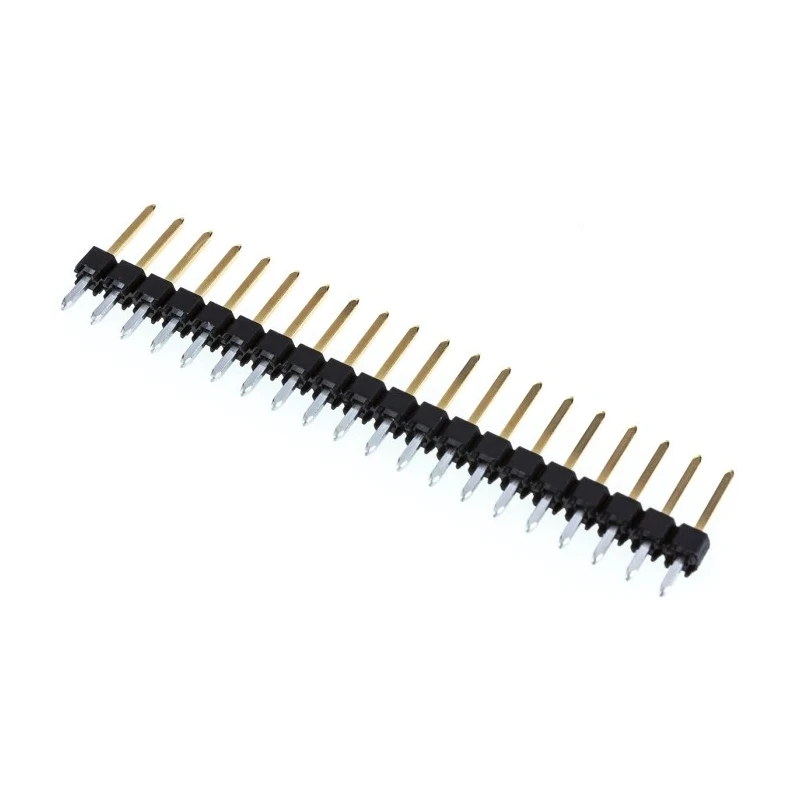

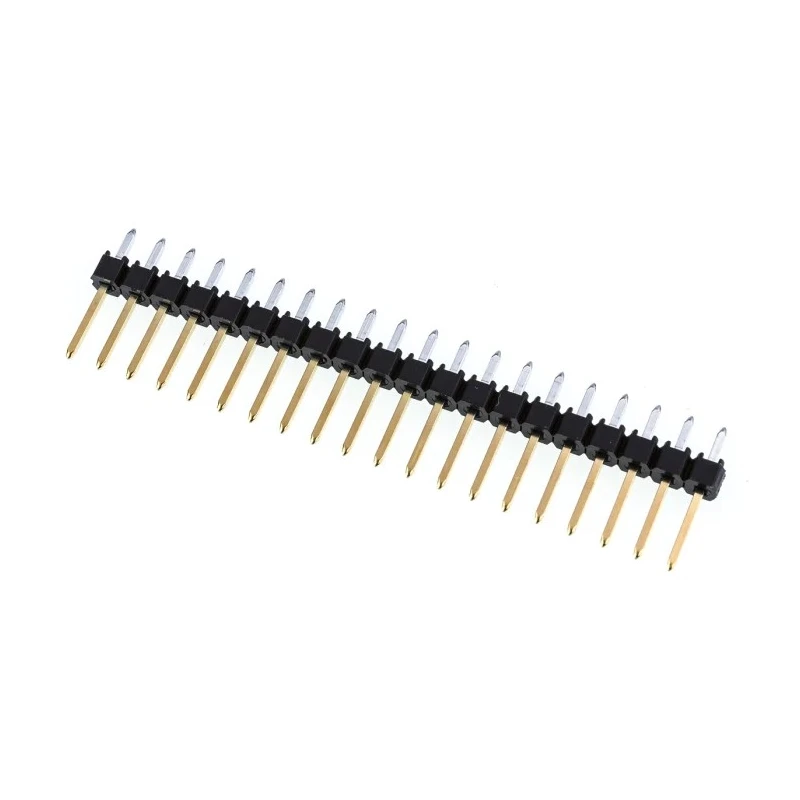

Molex C-Grid III Series 20 Contact Straight Through Hole Pin Header 2.54 mm Pitch 1 Row Unshrouded 90120-0780
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Features a 1 row, unshrouded pin header with brass contacts plated in gold.
- Designed for through-hole mounting and solder termination.
- Supports a current rating of 3A and voltage up to 350V for robust performance.
- Operating temperature range from -55°C to 125°C for versatile environmental use.
- Includes breakaway pins for design flexibility and secure mating connection with high retention force.
- Suitable for applications in industrial, computer, medical, telecommunications, and automotive electronics.
- Housing made from durable polyester material for insulation and protection.
Product Description
Molex 90120-0780 C-Grid III Series Straight Through Hole Pin Header offers a 20-contact, 2.54 mm pitch interface for versatile wire-to-board electrical connections. This unshrouded, single row header is designed to meet demanding industrial, computer, medical, and telecommunications applications with its robust current capacity of 3A and voltage rating of 350V.
The connector features brass contacts plated with gold to enhance conductivity and corrosion resistance. It is engineered for through-hole mounting, facilitating solder termination that ensures mechanical stability once installed on printed circuit boards (PCBs). The breakaway design allows customization of pin count for flexibility during product development.
Operating reliably across a wide temperature range from -55°C to 125°C, the header is suitable for harsh environments including automotive safety systems, industrial equipment, and medical devices. Its high pin retention force guarantees secure mating with C-Grid III series PCB sockets and crimp housings.
The polyester housing provides excellent insulation and durability. Pin lengths are specified as 2.9 mm for tail pins and 6.75 mm for mating pins, contributing to solid mechanical stability and optimal electrical contact.
20 gold-plated brass contacts support high current and signal integrity. 2.54 mm pitch for standardized PCB component spacing. Breakaway design for additional design flexibility. Unshrouded, straight orientation suited for wire-to-board applications.
Durable polyester housing ensures insulation and resistance to wear.
This pin header is ideal for industrial plants, medical equipment, computer servers, and telecommunications hardware where reliable, high-density PCB connections are essential. The product complies with industry best practices though is not associated with specific certifications.
Explore more PCB headers and connectors in the Electronics Components category on EnvMart for comprehensive industrial and commercial solutions.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a current rating of 3A, making it suitable for various applications requiring robust electrical connections.
The voltage rating for this model is up to 350V, allowing it to be used in high-voltage applications.
The operating temperature range for this unit is from -55°C to 125°C, enabling it to function in diverse environmental conditions.
It is designed for through-hole mounting, which facilitates solder termination on printed circuit boards (PCBs).
The contacts are made of brass and are plated with gold to enhance conductivity and corrosion resistance.
This model features 20 contacts, providing multiple connection points for electrical signals.
The pitch of this pin header is 2.54 mm, which is a standardized spacing for PCB components.
The tail pins are specified to be 2.9 mm in length, contributing to stable mechanical connections.
The mating pins have a length of 6.75 mm, which aids in ensuring a secure connection with compatible sockets.
This pin header is unshrouded, allowing for easier access and flexibility during connections.
It is suitable for use in industrial, computer, medical, telecommunications, and automotive electronics applications.
This pin header utilizes a wire-to-board connector system, facilitating direct connections between wires and PCBs.
