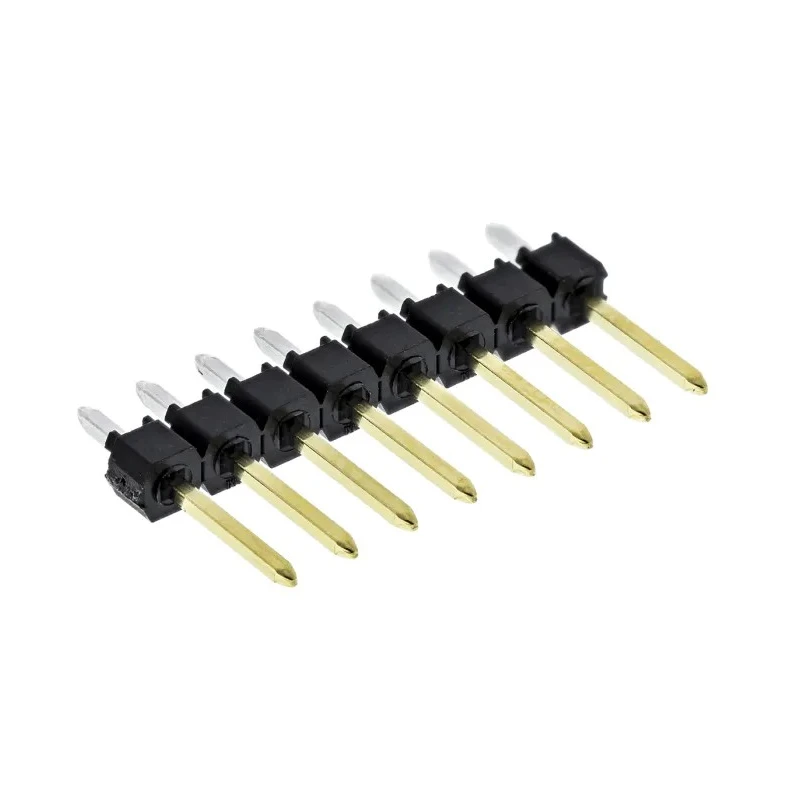

Molex C-Grid III Series Straight Through Hole Pin Header, 8 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 90120-0768
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- The header features an unshrouded, single-row straight through hole design for versatile mounting.
- Contacts are made of brass with gold plating for excellent conductivity and corrosion resistance.
- Suitable for operation in temperatures ranging from -55°C to 125°C.
- Breakaway design allows the header to be cut to custom sizes for added design flexibility.
- Rated for a voltage of 350V and a current of 3A, ensuring reliable electrical performance.
- High retention force and mechanical stability after soldering provide secure mating connections.
- Compatible with C-Grid III series PCB sockets and crimp housings for diverse applications.
- Ideal for industrial, computer, medical, telecommunications, and automotive electronic equipment.
Product Description
Molex 90120-0768 C-Grid III Series Straight Through Hole Pin Header is a high-quality electronic component designed for robust wire-to-board and board-to-board interconnections. Featuring 8 male contacts spaced at a 2.54 mm pitch in a single-row, unshrouded configuration, this through hole mount pin header supports flexible circuit design with a breakaway feature allowing custom sizing.
Manufactured with brass contacts plated in gold and housed in durable polyester, it provides excellent electrical conductivity and corrosion resistance. The pin header is engineered to operate reliably between -55°C and 125°C, handling voltages up to 350V and currents up to 3A, making it well suited for demanding industrial and commercial applications.
This component ensures strong mechanical retention and stability once soldered, maintaining secure mating connections even under vibration or mechanical stress. It interfaces seamlessly with other C-Grid III series products such as PCB sockets and crimp housings for versatile system integration.
Common applications include use in desktop PCs, servers, medical devices, telecommunications hardware, white goods, industrial equipment, and automotive safety electronics, reflecting its broad utility across multiple industries.
The header is unshrouded and offers a straight single-row through hole mount. Gold plated brass contacts deliver enhanced electrical performance and corrosion resistance. Designed to withstand wide temperature variations and mechanical stress.
Flexible breakaway format enables tailored PCB mounting solutions. Compatible within the C-Grid III family for various wire-to-board and board-to-board connections. Built for industrial, computer, medical, telecommunications, and transportation electronics.
Ensures high reliability and secure electrical bonding in challenging environments. Standard pitch of 2.54 mm supports industry-standard PCB layouts. Browse EnvMart's complete Electronics Components section for compatible connectors, sockets, and accessories to enhance your electronic assemblies and system designs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 350V, ensuring reliable electrical performance in various applications.
It can handle a current of up to 3A, making it suitable for demanding electrical connections.
The contacts are spaced at a pitch of 2.54 mm, which is standard for many PCB layouts.
The contacts are made of brass and are plated with gold for enhanced conductivity and corrosion resistance.
It operates reliably within a temperature range of -55°C to 125°C, suitable for various environments.
This pin header features 8 male contacts, allowing for multiple connections in a compact design.
It supports through hole mounting, which is commonly used in PCB applications.
Yes, it is compatible with C-Grid III series PCB sockets and crimp housings for versatile applications.
The termination type is solder, which is standard for secure electrical connections in PCB assemblies.
The tail pin length is 2.9 mm, allowing for effective soldering to the PCB.
The housing is made of durable polyester, providing structural integrity and support for the contacts.
The breakaway design allows the header to be cut to custom sizes, providing flexibility in circuit design.
