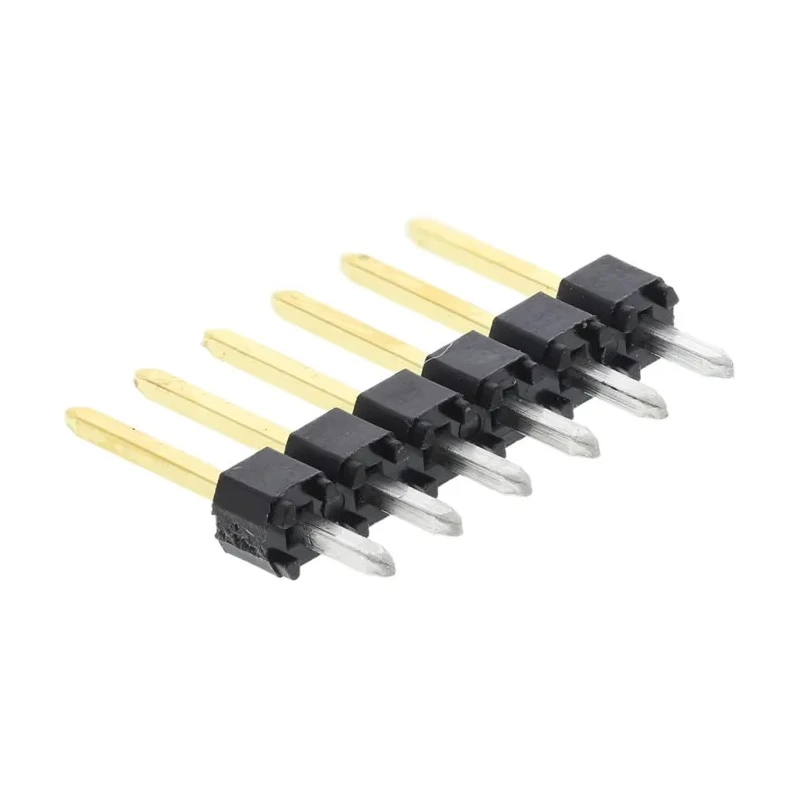

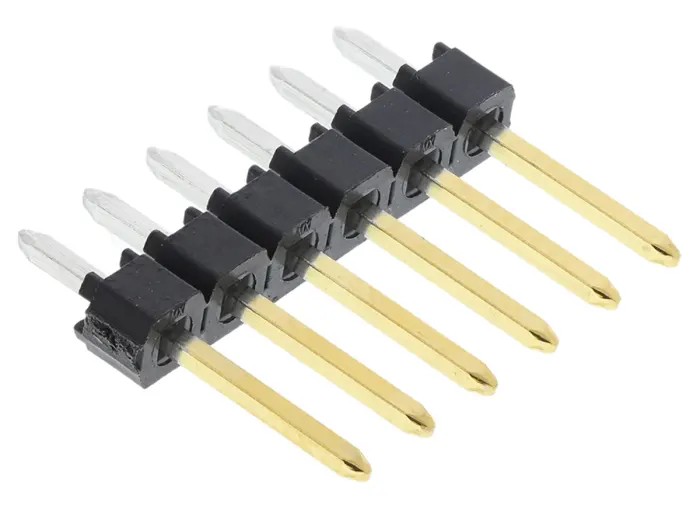

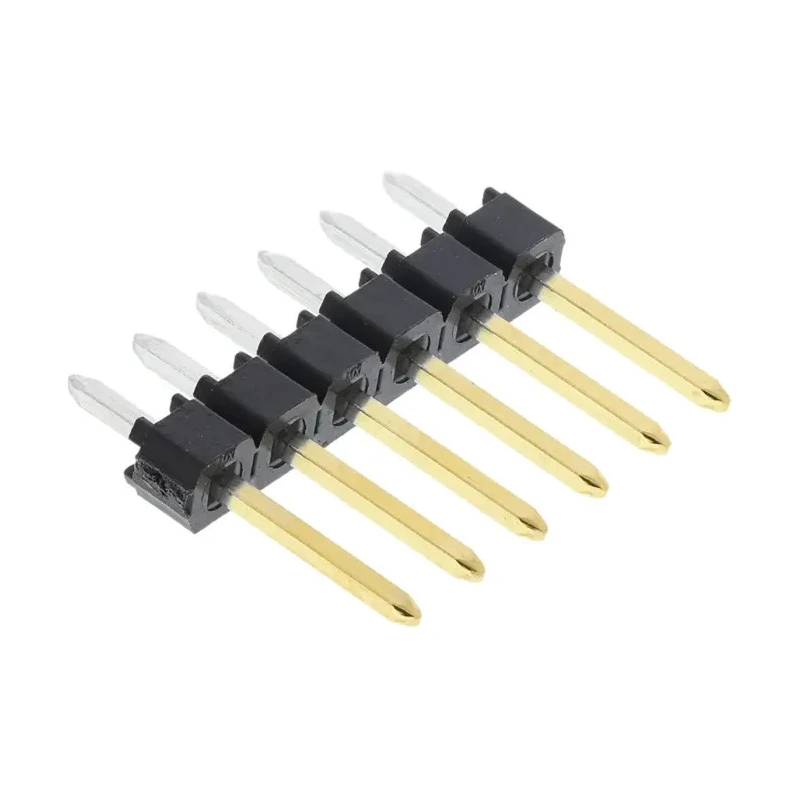

Molex C-Grid III Series Straight Through Hole Pin Header 6 Contacts 2.54 mm Pitch 1 Row Unshrouded 90120-0766
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Molex |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- Features a breakaway design for flexible sizing to accommodate custom layouts.
- Constructed with polyester housing and brass contacts plated with gold for durability.
- Rated for 3A current and 350V voltage with high mechanical stability after soldering.
- Supports a wide operating temperature range from -55° to 125°C.
- Suitable for use in industrial, computer, medical, telecommunications, and automotive applications.
- Contact tail pin length is 2.9 mm with mating pin length of 6.75 mm for secure connections.
- Unshrouded male contacts arranged in a single row aligned at 2.54 mm pitch.
- Through hole mount type ensures strong mechanical and electrical connection on PCB.
Product Description
Molex 90120-0766 C-Grid III Series Straight Through Hole Pin Header is a 6-contact, unshrouded, single-row connector with a 2.54 mm pitch designed specifically for secure and flexible PCB interconnections. Its breakaway design allows customization by cutting to the desired length, enabling adaptation in various industrial and commercial electronic assemblies.
This pin header features a durable polyester housing combined with brass contacts plated in gold plating to ensure superior conductivity and corrosion resistance. Rated for a continuous current of 3A and voltage up to 350V, it also withstands harsh environments with operating temperatures ranging from -55°C to 125°C.
Its through-hole mounting style provides high mechanical stability once soldered to the printed circuit board, making it ideal for reliable performance in demanding applications such as medical equipment, telecommunications devices, automotive safety systems, industrial machinery, and consumer electronics. The connector facilitates both board-to-board and wire-to-board connections, enhancing design versatility.
Breakaway feature allows flexible sizing for custom configurations. High retention force of pins ensures secure mating connection. Gold plating on brass contacts enhances longevity and electrical performance. Unshrouded design suited for versatile connector system requirements.
Compatible with C-Grid III series PCB sockets and crimp housings. Suitable for use in industrial, computer, medical, consumer, telecommunications, and transportation industries.
This product supports multiple applications including desktop PCs, servers, monitors, medical devices, white goods, exchange stations, and automotive electronics. The 2.54 mm pitch and single-row configuration provide standardization compatible with typical industry PCB layouts.
Explore more connectors and PCB header solutions from Molex to meet your electronic component requirements.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a continuous current of 3A and a voltage of 350V.
The contacts are arranged with a pitch of 2.54 mm.
The housing is made of polyester, and the contacts are brass plated with gold.
It operates within a temperature range from -55°C to 125°C.
This model features 6 contacts arranged in a single row.
The tail pin length is 2.9 mm.
It uses a through-hole mounting type for secure installation on PCBs.
The mating pin length is 6.75 mm.
Yes, it is suitable for use in industrial, computer, medical, telecommunications, and automotive applications.
It uses a solder termination type for secure connections.
The contacts are oriented straight in this model.
Yes, it is compatible with C-Grid III series PCB sockets and crimp housings.
