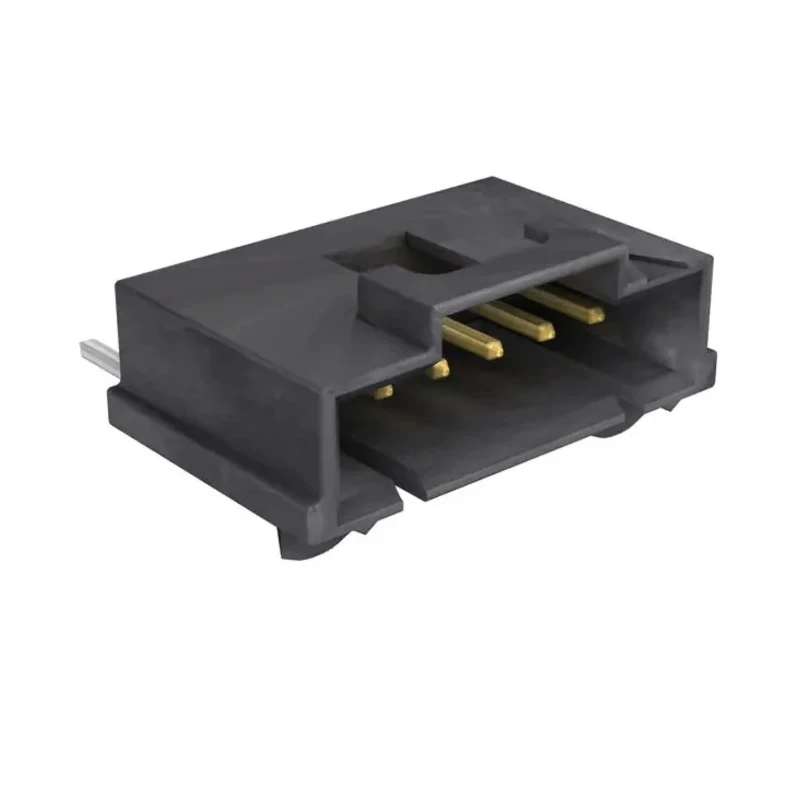

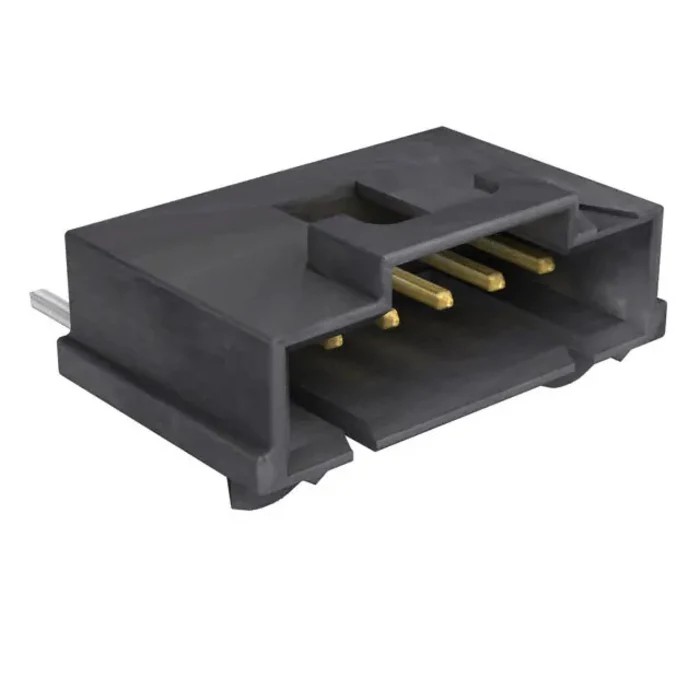

Molex SL Series Right Angle Surface PCB Header 6 Contacts 2.54 mm Pitch 1 Row Shrouded 15912065
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Model | 15912065 |
| Mount Type | Surface |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass, Phosphor Bronze |
| Series | SL |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | CSA LR19980, UL E29179 |
| Contact Plating | Gold, Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Constructed with high temperature thermoplastic housing for durability.
- Features a single row configuration with right angle orientation for surface mounting.
- Contacts are made of brass and phosphor bronze with gold and tin plating for reliable electrical performance.
- Rated for 3A current capacity and 250V voltage handling.
- Operates reliably between -40°C and 105°C temperature range.
- Shrouded design ensures secure and safe connector mating.
- Certified to CSA LR19980 and UL E29179 standards for safety compliance.
- Ideal for electronic components, power connectors, and PCB header interconnection uses.
Product Description
Molex 15912065 is a right angle surface PCB header designed for robust wire-to-board electronic connections with 6 contact points and a 2.54 mm pitch. This header features a single row of contacts in a shrouded housing made from high temperature thermoplastic, offering excellent mechanical and thermal durability.
The contact materials include brass and phosphor bronze, plated with gold and tin to provide low resistance and corrosion resistance, supporting reliable electrical conductivity.
Rated for a maximum continuous current of 3A and voltage of 250V, it is suitable for various industrial and commercial electronic applications. The operational temperature ranges from -40°C to 105°C, accommodating different environmental conditions.
High temperature thermoplastic housing provides excellent mechanical strength and thermal resistance. Right angle single-row design optimizes PCB layout and assembly flexibility. Gold and tin plated brass and phosphor bronze contacts ensure superior electrical performance.
Shrouded design enhances connector safety and prevents misalignment. Certified to CSA LR19980 and UL E29179 standards ensuring compliance with safety and quality specifications. Surface mount termination type enables easy soldering and automated assembly.
Applications include industrial electronics, power supply connectors, communication devices, and PCB interfaces.
Manufactured in the United States, this Molex SL series PCB header combines precision engineering with applied standards for dependable use in diverse electronic manufacturing processes.
Explore a wide range of Molex connectors and components in EnvMart’s Electronics Components category for enhanced design and production solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum continuous current of 3A and a voltage of 250V.
The contacts of this header have a pitch size of 2.54 mm.
The contacts are made from brass and phosphor bronze, and they are plated with gold and tin for enhanced electrical performance.
It operates reliably between -40°C and 105°C, making it suitable for various environmental conditions.
This unit features 6 contacts in a single row configuration.
It utilizes a surface mount termination type, which facilitates easy soldering and automated assembly.
Yes, it is certified to CSA LR19980 and UL E29179 standards for safety compliance.
This model has a right angle orientation, designed for surface mounting applications.
The housing is constructed from high temperature thermoplastic, providing mechanical strength and thermal resistance.
It is a wire-to-board connector system, suitable for robust electronic connections.
This PCB header is manufactured in the United States.
It is suitable for various industrial and commercial electronic applications, including power supply connectors and PCB interfaces.
