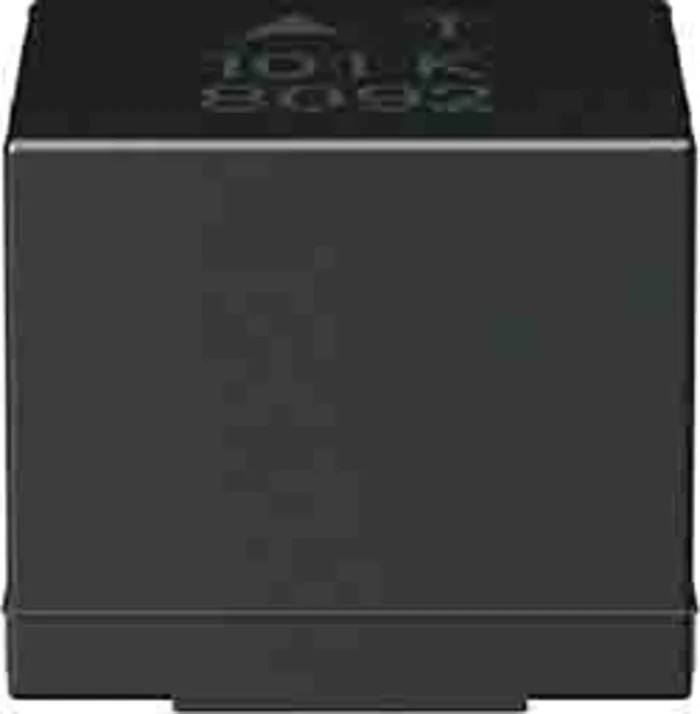

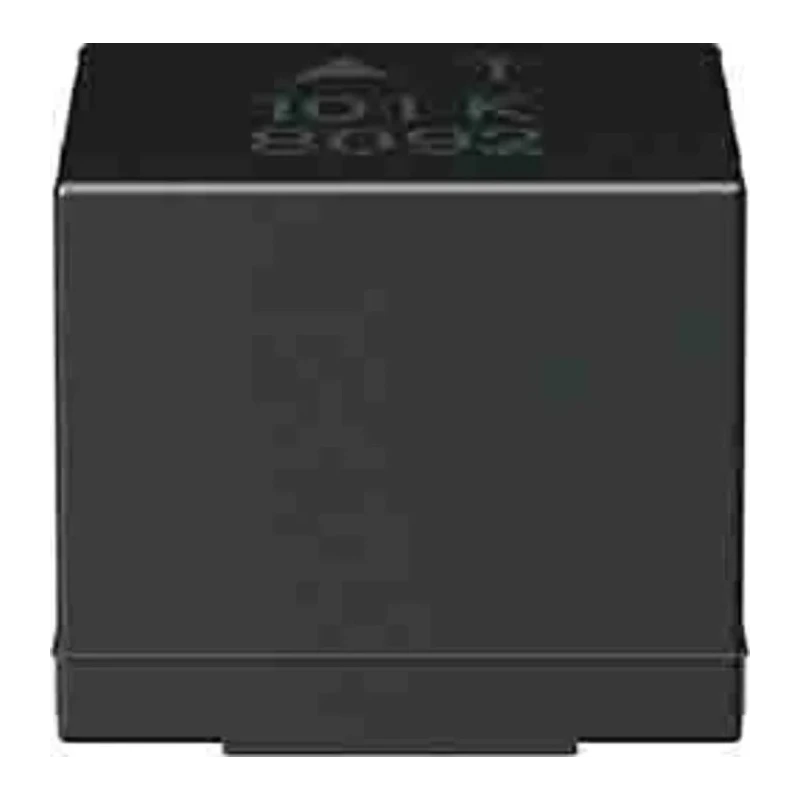

TDK Unshielded Wirewound Surface Mount Inductor 120 μH ±10% 440 mA Idc Ferrite Core 2220 Package B82442T1124K000

Free Delivery in India | Lowest Global Shipping Charges

TDK Unshielded Wirewound Surface Mount Inductor 120 μH ±10% 440 mA Idc Ferrite Core 2220 Package B82442T1124K000



Category Inductors Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	5mm
Length	5.6mm
Model	B82442T1124K000
Depth	5mm
Packaging	Tape & Reel
Series	SIMID
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	120μH
Standards/Approvals	AEC-Q200, JEDEC J-STD 020D, RoHS
Package/Case	2220
Maximum DC Current	440mA
Maximum DC Resistance	1.29Ω
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	5.3MHz
Minimum Quality Factor	20
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Inductance of 120 μH with ±10 % tolerance.
Maximum DC current rating of 440 mA for reliable operation.
Compact 2220 package with dimensions 5.6 mm length, 5 mm height, and 5 mm depth.
Wirewound construction with ferrite drum core ensuring high quality factor of minimum 20.
Qualified to automotive standard AEC-Q200 and compliant with JEDEC J-STD 020D and RoHS standards.
Maximum operating temperature up to 150°C and minimum operating temperature down to -55°C.
Maximum DC resistance of 1.29 Ω ensuring low power loss.
Suitable for applications in filtering, DC-DC converters, telecommunications, consumer and industrial electronics.

Product Description

TDK B82442T1124K000 is a high-quality unshielded wirewound surface mount inductor featuring a ferrite drum core, designed for demanding industrial and electronic applications. This 2220 package component measures 5.6 mm in length, 5 mm in height, and 5 mm in depth, making it compact for surface mount technology assemblies.

With an inductance value of 120 μH and a tolerance of ±10 %, the inductor delivers stable performance with a minimum quality factor of 20. It supports a maximum DC current of 440 mA and maintains a maximum DC resistance of 1.29 Ω, ensuring efficient power handling and minimal losses. The component withstands harsh environments with an operating temperature range from -55°C to 150°C.

The TDK SIMID series component is qualified to automotive standard AEC-Q200, verified for lead-free reflow soldering as per JEDEC J-STD 020D, and is RoHS and halogen-free compliant, making it suitable for environmentally-conscious electronics manufacturing. Its wirewound construction and moulded design guarantee reliable inductance and mechanical stability.

This surface mount inductor is widely used in filtering of supply voltages, coupling, decoupling, DC to DC converters, switch-mode power supplies, automotive electronics, telecommunications, consumer electronics, and industrial electronics. The tape and reel packaging supports automated pick-and-place manufacturing processes, enhancing productivity and component handling.

Inductance of 120 μH provides effective circuit filtering. Ferrite core material ensures stable magnetic properties. Wirewound construction delivers reliable inductance levels and durability. Compliance with AEC-Q200 and JEDEC J-STD 020D standards guarantees automotive and industrial-quality performance.

Operating temperature range from -55°C to 150°C suits harsh environments. Compact 2220 package facilitates space-saving PCB designs. Tape & reel packaging enables efficient assembly and handling. Moulded design enhances mechanical and thermal stability.

Solder termination style supports secure surface mounting.

TDK inductors are trusted components for high-performance electronics across diverse industrial sectors. Explore more surface mount Inductors and related components at EnvMart for reliable solutions tailored to your technical requirements.
