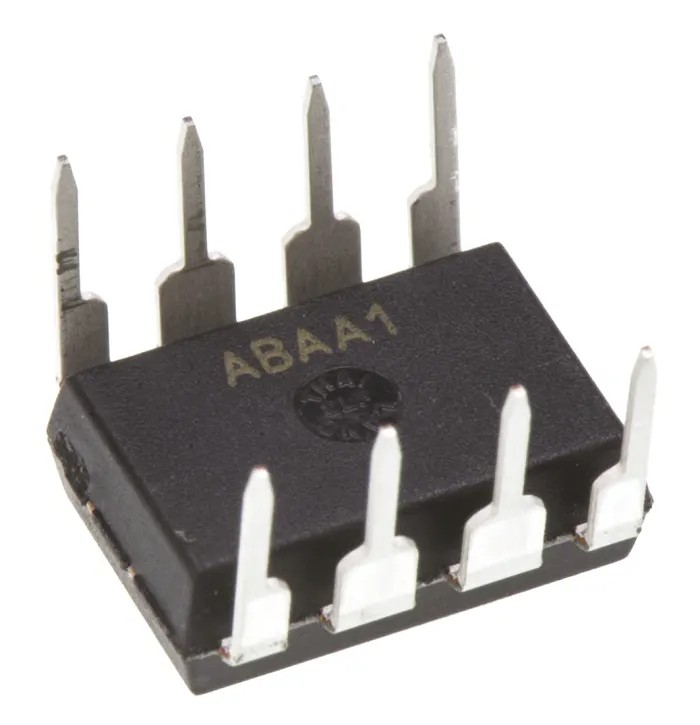

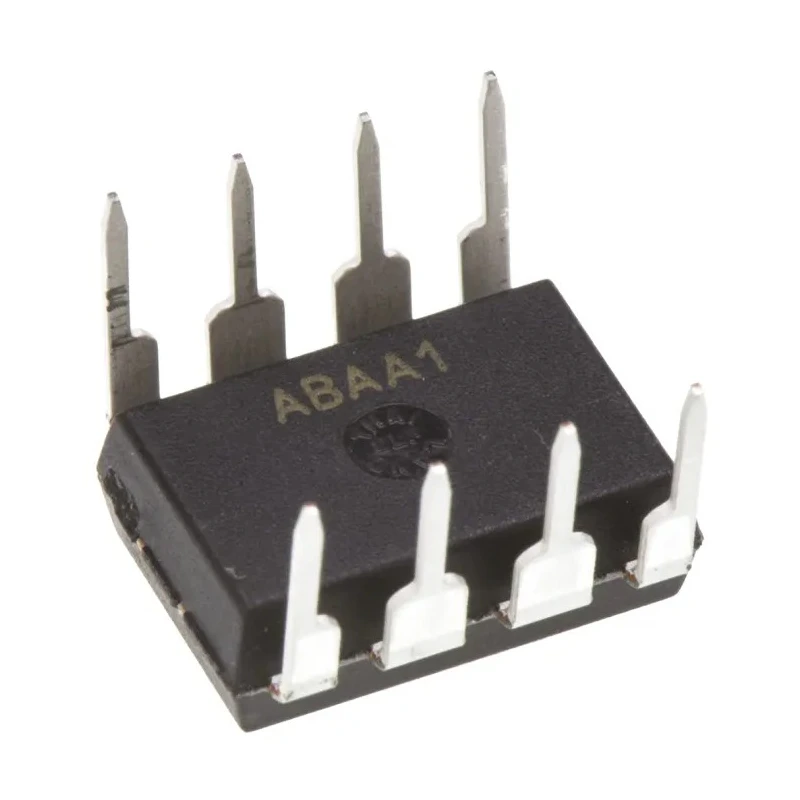

Microchip 12 bit Successive Approximation Register Analogue to Digital Converter 100 ksps, 8-Pin PDIP MCP3201-CI/P
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 9.14mm |
| Length | 10.16mm |
| Model | MCP3201-CI/P |
| Mount Type | Through Hole |
| Sampling rate | 100ksps |
| Series | MCP3201 |
| Input Type | Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Interface Type | SPI |
| Architecture | SAR |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Features a 12 bit resolution for precise voltage measurement.
- Offers a sampling rate of 100,000 samples per second.
- Includes SPI interface communication for easy integration.
- Designed for operating temperatures from -40°C to 85°C.
- Supports a supply voltage range of 5 V to 5.5 V ensuring reliable performance.
- Compact dimensions of 10.16 mm length and 9.14 mm height.
- Compliance with automotive standard AEC-Q100 for robustness.
- Ideal for embedding in electronic components and semiconductor systems.
Product Description
Microchip MCP3201-CI/P is a precision 12 bit Successive Approximation Register (SAR) Analogue to Digital Converter (ADC) designed for high-speed data conversion at up to 100 ksps. Packaged in an 8-Pin PDIP for through-hole mounting, it is engineered to operate reliably in harsh environmental conditions with a temperature range from -40°C to 85°C, making it suitable for industrial and automotive applications compliant with the AEC-Q100 standard.
This ADC interfaces through SPI, enabling easy integration into a wide range of embedded systems requiring fast and accurate voltage measurement. It supports a supply voltage from 5 V up to 5.5 V, optimizing flexibility for standard 5 V systems.
The device's compact size with dimensions of 10.16 mm length and 9.14 mm height allows for efficient PCB space usage. Its single ADC channel is ideal for applications needing precise single-ended voltage input conversion.
This component is widely used in electronics manufacturing, instrumentation, data acquisition, and automotive electronics. Its robust design and compliance make it a trusted choice for engineers seeking reliable analogue-to-digital conversion in both laboratory and industrial environments.
Features a 12 bit resolution for precise voltage measurement. Offers a sampling rate of 100,000 samples per second. Includes SPI interface communication for easy integration. Designed for operating temperatures from -40°C to 85°C.
Supports a supply voltage range of 5 V to 5.5 V ensuring reliable performance. Compact package size with a length of 10.16 mm and height of 9.14 mm. Complies with automotive standard AEC-Q100 for high reliability. Perfect for use in electronic components, semiconductor systems, and automotive applications.
Explore a comprehensive range of semiconductor solutions at EnvMart, including Analogue to Digital Converters by Microchip and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3201-CI/P features a resolution of 12 bits, allowing for precise voltage measurement.
This model offers a maximum sampling rate of 100,000 samples per second (100 ksps).
It is designed to operate within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
The MCP3201-CI/P utilizes an SPI interface for communication, facilitating easy integration into embedded systems.
This unit has compact dimensions of 10.16 mm in length and 9.14 mm in height.
It supports a supply voltage range from 5 V to 5.5 V, ensuring reliable performance in standard systems.
This model features a single ADC channel, ideal for applications requiring precise single-ended voltage input conversion.
The MCP3201-CI/P comes in an 8-Pin PDIP package type designed for through-hole mounting.
It complies with the automotive standard AEC-Q100, ensuring robustness for automotive applications.
This analogue to digital converter uses a Successive Approximation Register (SAR) architecture for data conversion.
It supports voltage input type, making it suitable for various voltage measurement applications.
The country of origin for the MCP3201-CI/P is India.
