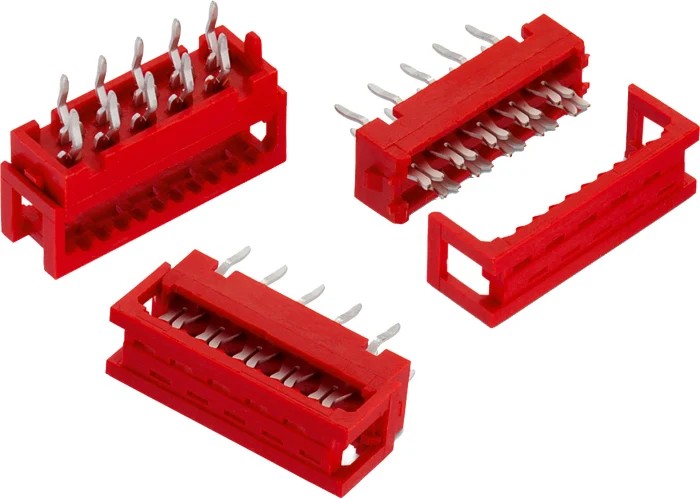

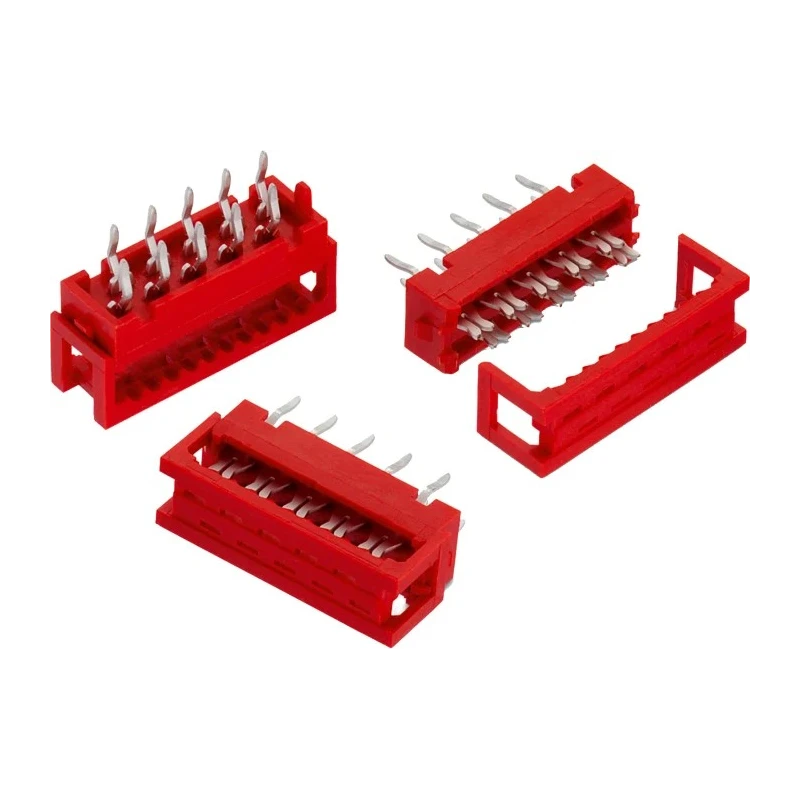

Wurth Elektronik 26-Way 2-Row IDC Connector Male Cable Mount WR-MM 250V 1A 2.54mm Pitch 690207102672

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 26-Way 2-Row IDC Connector Male Cable Mount WR-MM 250V 1A 2.54mm Pitch 690207102672

Name: Wurth Elektronik 26-Way 2-Row IDC Connector Male Cable Mount WR-MM 250V 1A 2.54mm Pitch 690207102672
Brand: Wurth Elektronik
SKU: 168310
Price: 2.28 USD
Availability: InStock



Category IDC Connector Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Wurth Elektronik
Orientation	Straight
Current	1A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	WR-MM
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Matt Tin over Nickel
Number of Contacts	26
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

This IDC connector features 26 contacts arranged in 2 rows for reliable cable connections.
It has a pitch of 2.54mm ensuring compatibility with standard cables.
The mounting type is cable mount with a straight orientation for ease of installation.
Contacts are made of phosphor bronze with matt tin over nickel plating for corrosion resistance.
The connector housing is made from durable polybutylene terephthalate to withstand operating conditions.
Designed to operate in temperatures ranging from -40°C up to 105°C.
The connector termination type is solder, ideal for PCB and wire connections.
It complies with the WR-MM series by Wurth Elektronik ensuring consistent quality.

Product Description

Wurth Elektronik 690207102672 is a high-quality 26-way two-row IDC (Insulation Displacement Connector) with male contacts designed for cable mounting applications. Rated for 1 amp current and 250 volts, this connector ensures reliable electrical connectivity in electronic assemblies. The connector pitch is precisely 2.54mm, which is standard for many wiring harnesses and PCB applications.

The contacts are constructed from phosphor bronze with matte tin over nickel plating, providing enhanced durability and excellent corrosion resistance to maintain signal integrity over long periods. The housing material is polybutylene terephthalate (PBT), a rugged thermoplastic known for its mechanical strength and thermal stability, suitable for harsh environments.

Designed with a straight orientation, the connector facilitates straightforward cable routing and assembly. It operates efficiently within a broad temperature range from -40°C to 105°C, making it usable in a variety of industrial and commercial applications.

The termination is solder type, suitable for strong and secure electrical connections in printed circuit boards and other wiring configurations. The WR-MM series guarantees a standard of performance and reliability consistent with Wurth Elektronik’s reputation in the electronics component industry.

This IDC connector features 26 contacts arranged in 2 rows for reliable cable connections. It has a pitch of 2.54mm ensuring compatibility with standard cables. The mounting type is cable mount with a straight orientation for ease of installation.

Contacts are made of phosphor bronze with matt tin over nickel plating for corrosion resistance. The connector housing is made from durable polybutylene terephthalate to withstand operating conditions. Designed to operate in temperatures ranging from -40°C up to 105°C.

The connector termination type is solder, ideal for PCB and wire connections. It complies with the WR-MM series by Wurth Elektronik ensuring consistent quality.

This connector is primarily used in electronic components assemblies, power connectors, and wire housing applications within industrial, manufacturing, and commercial electronic system development. Its robust design and materials make it suitable for demanding environments.

Explore more high-quality IDC Connectors and related electronic components from Wurth Elektronik and other top brands at EnvMart for reliable and efficient procurement.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This IDC connector is rated for 250 volts, ensuring reliable electrical connectivity in various applications.

It has a current rating of 1 amp, suitable for low-power applications in electronic assemblies.

The contacts are arranged with a pitch of 2.54mm, which is a standard size for many wiring harnesses and PCB applications.

This model features 26 contacts, arranged in 2 rows, allowing for multiple connections in a compact design.

The contacts are made of phosphor bronze with a matte tin over nickel plating, while the housing is constructed from polybutylene terephthalate (PBT).

It utilizes a solder termination type, making it suitable for secure connections in printed circuit boards and wiring configurations.

This connector operates efficiently within a temperature range from -40°C to 105°C, making it versatile for various environments.

The connector features a straight orientation, facilitating straightforward cable routing and installation.

This model is unshrouded, allowing for easy access to the contacts during installation and use.

It complies with the WR-MM series by Wurth Elektronik, ensuring consistent quality and performance standards.

The country of origin for this connector is China, where it is produced to meet industry standards.

This IDC connector is primarily used in electronic component assemblies, power connectors, and wire housing applications within industrial and commercial electronic systems.
