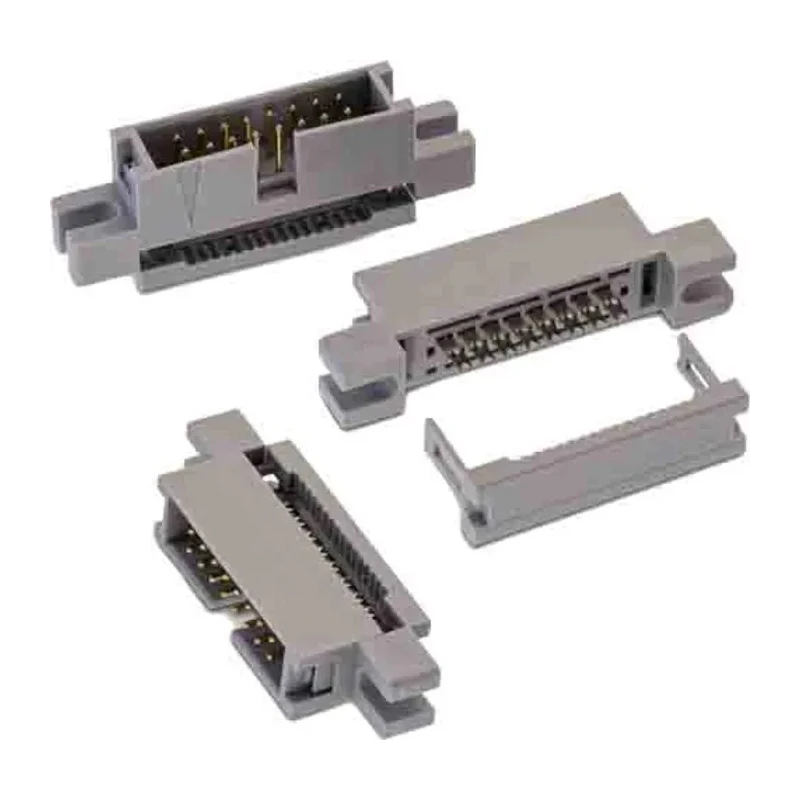

Wurth Elektronik 26-Way 2 Row Male IDC Connector for Cable 250V WR-BHD 61202625921
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | WR-BHD |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- The connector features a 2.54mm pitch for precise contact alignment.
- Constructed using copper alloy contacts with gold plating for enhanced conductivity and corrosion resistance.
- Housing is made of Polybutylene Terephthalate (PBT) with UL94 V-0 flammability rating for safety.
- It supports a current rating of 1A suitable for low power signal transmission.
- Designed for operating temperatures from -40°C to 105°C, ensuring reliable performance in various environments.
- The contact termination type is insulation displacement contact (IDC) for easy cable assembly.
- Connector orientation is straight with an unshrouded contact design.
- Suitable for industrial and electronic assembly applications requiring precise cable connectors.
Product Description
Wurth Elektronik 61202625921 26-Way 2 Row Male IDC Connector is designed for cable mounting in electronic assemblies operating at 250V and 1A current. This IDC connector from the WR-BHD series features a 2.54mm pitch with gold-plated copper alloy contacts for excellent electrical performance and durability. The housing is made from robust Polybutylene Terephthalate (PBT) material with a UL94 V-0 flammability rating, ensuring good fire safety in industrial environments.
The male connector has a straight orientation with an unshrouded contact design, supporting precise insulation displacement contact (IDC) termination for quick and reliable cable connections. Operating reliably in a wide temperature range from -40°C to 105°C, it is suitable for harsh industrial, manufacturing, electronics, and testing lab applications.
With its 26 contacts arranged in 2 rows, this connector is ideal for multiwire cable assemblies in data and signal transmission systems. The gold plating on contacts ensures corrosion resistance and low contact resistance, which is critical in high-reliability environments.
The connector is made from quality copper alloy contact materials and meets safety UL approvals. The PBT housing contributes to mechanical stability and flame retardance. The straight male connector design facilitates easy cable routing and PCB interfacing.
Operating voltage rating of 250V makes it suitable for various low power electronics. The WR-BHD series offers dependable performance in demanding industrial conditions. RoHS compliant and suitable for environmentally conscious electronics design.
This Wurth Elektronik 26-way IDC connector provides a trusted connection solution that fits various industrial, manufacturing, medical, and communication equipment requiring robust and precise cable connectors. Browse more IDC Connectors and wiring components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 250V, making it suitable for low power electronics applications.
It supports a current rating of 1A, which is appropriate for low power signal transmission.
This connector operates reliably within a temperature range of -40°C to 105°C, suitable for various environments.
The housing is made of Polybutylene Terephthalate (PBT), and the contacts are constructed from copper alloy with gold plating for enhanced conductivity.
The connector features 26 contacts arranged in 2 rows, providing a compact solution for multiwire cable assemblies.
It utilizes insulation displacement contact (IDC) termination, which allows for easy cable assembly.
The connector has a contact pitch of 2.54mm, ensuring precise contact alignment.
This model features a straight orientation with an unshrouded contact design, facilitating easy cable routing.
Yes, the connector is RoHS compliant, making it suitable for environmentally conscious electronics design.
The connector is manufactured in Taiwan, ensuring quality in production.
It is suitable for industrial, manufacturing, medical, and communication equipment requiring robust and precise cable connections.
The housing material has a UL94 V-0 flammability rating, ensuring good fire safety in industrial environments.
