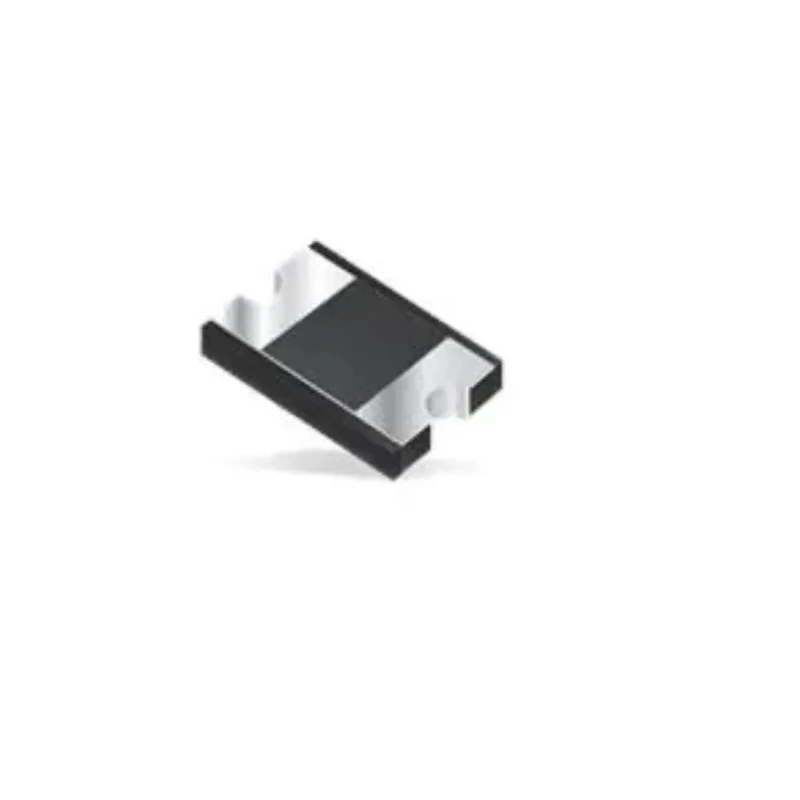

Bourns Surface Mount Rectifier Diode 2 A 200 V DO-214AA CD214B-S2D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.2mm |
| Length | 5.2mm |
| Model | CD214B-S2D |
| Width | 3.6mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Rectifier Diode |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- Designed for surface mount applications in electronic circuits.
- Handles a maximum forward current of 2 amperes with high efficiency.
- Peak reverse voltage rating is 200 volts for robust blocking capability.
- Compact DO-214AA package measures 5.2 mm length and 3.6 mm width.
- Operational temperature range from -65°C to 175°C supporting harsh environments.
- Low forward voltage drop of 1 volt to reduce power loss.
- Halogen free and ROHS compliant construction for environmental safety.
- Meets automotive AEC-Q101 standard ensuring reliability in automotive applications.
Product Description
The Bourns CD214B-S2D is a surface mount rectifier diode designed for electronic and power circuit applications, capable of handling a continuous forward current of 2 amperes with a peak reverse repetitive voltage of 200 volts. Packaged in a low profile DO-214AA form factor, this diode offers a compact solution suitable for modern PCB designs requiring space efficiency.
This diode exhibits a low forward voltage of 1 volt, maximising energy efficiency and reducing heat dissipation in circuits. Its wide operating temperature range from -65°C to 175°C allows usage in diverse industrial, automotive, and aerospace environments needing high reliability. The package dimensions are 5.2 mm in length, 3.6 mm in width, and 1.2 mm in height, making it ideal for surface mount technology assembly.
With a peak non-repetitive forward surge current rating of 50 A, it can safely handle transient current spikes, enhancing robustness in power conversion and rectification applications. This diode is halogen free and RoHS compliant, supporting environmentally considerate designs. Furthermore, the product complies with automotive AEC-Q101 standards, endorsing its quality and durability for use in automotive electronic systems.
The CD214B-S2D diode is primarily suited for industrial, automotive, power supply, and electronic manufacturing use cases where efficient rectification with reliable performance is critical. Its single diode configuration and 2-pin design simplify circuit integration for rectifier and freewheeling applications.
Designed for surface mount applications in electronic circuits. Handles a maximum forward current of 2 amperes with high efficiency. Peak reverse voltage rating is 200 volts for robust blocking capability. Compact DO-214AA package measures 5.2 mm length and 3.6 mm width.
Operational temperature range from -65°C to 175°C supporting harsh environments. Low forward voltage drop of 1 volt to reduce power loss. Halogen free and ROHS compliant construction for environmental safety. Meets automotive AEC-Q101 standard ensuring reliability in automotive applications.
Explore similar Bourns semiconductor components and find robust electronic solutions for your industrial and automotive projects on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns CD214B-S2D has a maximum continuous forward current rating of 2 amperes.
This rectifier diode can handle a peak reverse repetitive voltage of 200 volts.
The package measures 5.2 mm in length, 3.6 mm in width, and 1.2 mm in height.
It operates within a temperature range of -65°C to 175°C, making it suitable for harsh environments.
The maximum forward voltage drop is 1 volt, which helps reduce power loss in circuits.
This diode has a peak non-repetitive forward surge current rating of 50 A, allowing it to handle transient current spikes.
Yes, it meets the automotive AEC-Q101 standard, ensuring reliability for automotive applications.
The CD214B-S2D is designed for surface mount applications.
It features a single diode configuration with a 2-pin design, simplifying circuit integration.
The peak reverse current is rated at 5 μA.
The diode is halogen free and RoHS compliant, supporting environmentally safe designs.
The Bourns CD214B-S2D is manufactured in India.
