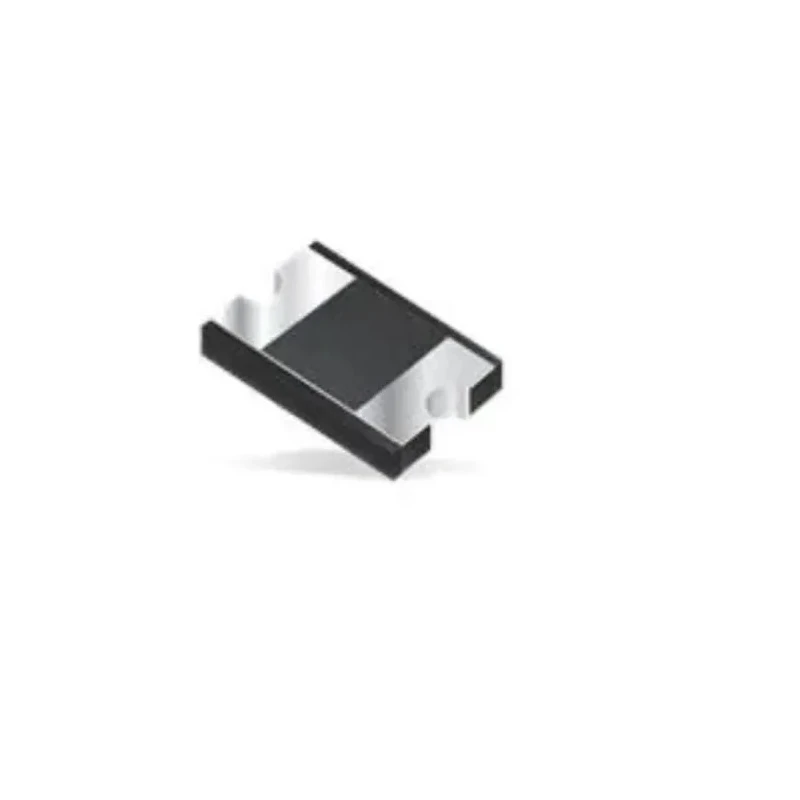

Bourns 400 V 1 A Low Loss Diode, Surface Mount DO-214AC Package CD214A-FS1G

Name: Bourns 400 V 1 A Low Loss Diode, Surface Mount DO-214AC Package CD214A-FS1G
Brand: BOURNS
SKU: 167555
Price: 0.2 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	1.16mm
Length	4.5mm
Model	CD214A-FS1G
Width	2.2mm
Mount Type	Surface
Series	CD214
Maximum Operating Temperature	175°C
Package Type	DO-214AC
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	400V
Diode Configuration	Single
Rectifier Type	Low loss
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	30A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	35ns

Key Features

This diode is a glass passivated rectifier designed for efficient low power loss applications.
It has a maximum forward voltage of 1.25 V and a peak reverse recovery time of 35 ns.
The package is compact with dimensions 4.5 mm length, 2.2 mm width, and 1.16 mm height.
The device supports an operating temperature range from -65°C to 175°C.
It is compliant with automotive standard AEC-Q101 and is halogen-free.
The diode features a peak forward surge current of 30 A and a peak reverse current of 5 μA.

Product Description

Bourns CD214A-FS1G Low Loss Diode is a surface mount device housed in a DO-214AC (SMA) package, delivering reliable rectification with a maximum continuous forward current of 1 ampere and repetitive peak reverse voltage of 400 volts. The glass passivated construction ensures enhanced durability and performance.

This diode exhibits a low forward voltage drop of 1.25 volts, contributing to decreased power loss and improved efficiency in electronic circuits. Its rapid peak reverse recovery time of 35 nanoseconds makes it suitable for high-frequency switching applications.

Mechanical dimensions are precise with a length of 4.5 mm, width of 2.2 mm, and height of 1.16 mm allowing compact PCB layouts. The device operates reliably across a wide temperature range from -65°C to 175°C, meeting automotive quality standards with AEC-Q101 certification.

Additional features include a peak non-repetitive forward surge current rating of 30 amperes and a peak reverse current of 5 microamperes, ensuring robustness under transient conditions. Its halogen-free construction supports environmentally conscious designs.

This diode is ideal for industrial and automotive electronics, power rectification, and high efficiency switching applications. Compliant with RoHS directives, it offers a reliable choice for modern electronics manufacturing.

The compact DO-214AC package aids in high-density PCB assembly and automated soldering processes.

Choose Bourns CD214A-FS1G diode for high performance and durability in demanding electrical and electronic environments. It is suitable for use in industrial automation, power management modules, and automotive electronic systems.
