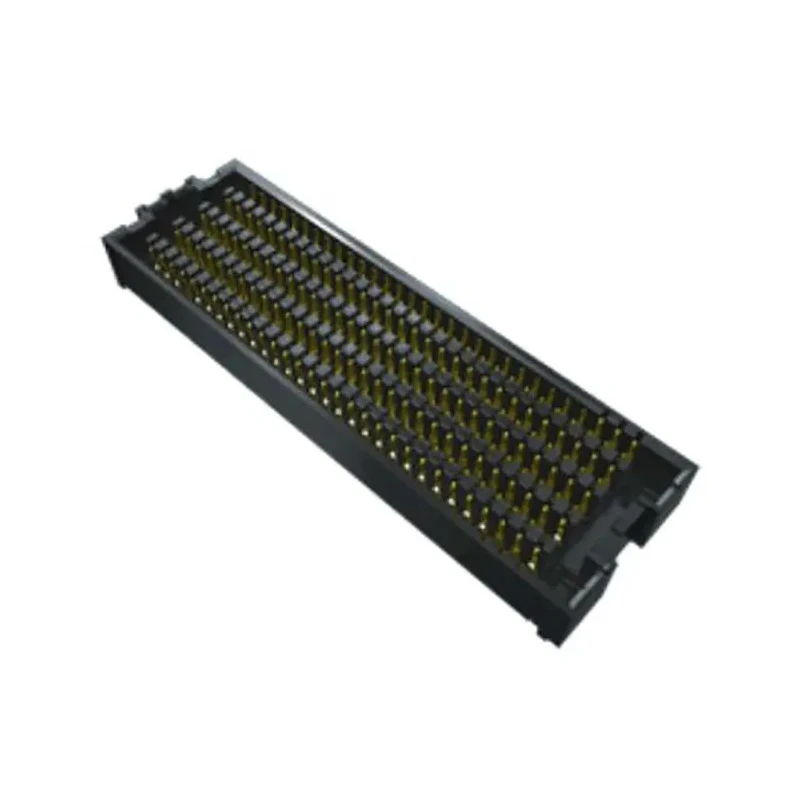

Samtec SEAF Series Straight Surface PCB Socket 300-Contact 6 Row 1.27 mm Pitch Solder SEAF-50-01-L-06-2-RA-GP-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.7A |
| Model | SEAF-50-01-L-06-2-RA-GP-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SEAF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Open Pin Field Array |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 6 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 300 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 18.5mm |
| Row Pitch | 2.5mm |
Key Features
- The socket utilizes a black Liquid Crystal Polymer housing for durability.
- It supports a current rating of 2.7 A and operates at a voltage of 240 V.
- Constructed with a copper alloy contact material featuring gold plating for reliable conductivity.
- Designed for surface mount with straight orientation and female contact gender.
- Operating temperature ranges from -55 °C to +125 °C, suitable for various environments.
- Stacking height is 18.5 mm with a row pitch of 2.5 mm for precise mounting.
- Connector system is board-to-board type, ideal for high-speed signal transmission.
- Termination type is solder, ensuring robust mounting to PCB.
Product Description
Samtec SEAF-50-01-L-06-2-RA-GP-TR is a high-quality straight surface PCB socket designed to accommodate 300 contacts arranged in 6 rows with a 1.27 mm pitch. The socket features a black Liquid Crystal Polymer (LCP) housing material that provides excellent insulation and durability in electronic assemblies.
The contact terminals are made of copper alloy with gold plating to ensure superior electrical performance and corrosion resistance. Rated for a current of 2.7 A and a voltage of 240 V, this connector supports reliable electrical connections in demanding applications.
The device is designed for surface mounting with a straight orientation and female contact gender, suited for board-to-board connector systems. It has a stacking height of 18.5 mm and a row pitch of 2.5 mm, enabling precise alignment and stable mechanical support on printed circuit boards.
Operating in a wide temperature range from -55 °C to +125 °C, the SEAF-50-01-L-06-2-RA-GP-TR socket is effective across industrial, laboratory, and manufacturing environments. Its solder termination type ensures reliable and long-lasting solder joint connections.
The socket utilizes a black Liquid Crystal Polymer housing for durability. It supports a current rating of 2.7 A and operates at a voltage of 240 V. Constructed with a copper alloy contact material featuring gold plating for reliable conductivity.
Designed for surface mount with straight orientation and female contact gender. Operating temperature ranges from -55 °C to +125 °C, suitable for various environments. Stacking height is 18.5 mm with a row pitch of 2.5 mm for precise mounting.
Connector system is board-to-board type, ideal for high-speed signal transmission. Termination type is solder, ensuring robust mounting to PCB.
This product is ideal for use in electronic components, power systems, connectors, and precision PCB assemblies requiring a high-density open pin field array socket. It supports fast and reliable signal transmission suitable for complex board interconnections in industrial, commercial, and HVAC systems.
Explore more advanced PCB Sockets and connectors in EnvMart’s Electronics & Electricals category for reliable and precision PCB assembly components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2.7 A, making it suitable for various electrical applications.
It operates at a maximum voltage of 240 V, ensuring reliable electrical connections.
The operating temperature range is from -55 °C to +125 °C, allowing it to function in diverse environments.
The SEAF-50-01-L-06-2-RA-GP-TR features a solder termination type, ensuring robust mounting to PCBs.
This socket accommodates 300 contacts arranged in 6 rows, with a pitch of 1.27 mm.
It is constructed with a Liquid Crystal Polymer housing and copper alloy contacts featuring gold plating for conductivity.
The stacking height of this socket is 18.5 mm, allowing for precise mounting in electronic assemblies.
This model is designed for straight orientation, suitable for surface mounting applications.
It supports a board-to-board connector system, ideal for high-speed signal transmission.
The row pitch for this model is 2.5 mm, which aids in precise alignment during installation.
This product is manufactured in India, ensuring compliance with local manufacturing standards.
It is suitable for electronic components, power systems, connectors, and precision PCB assemblies requiring high-density connections.
